Big enclosure, for immersion heaters or instruments, with flat cover, for welding on tubes, Y3TB
– Bottom side with stamped hole with welding lips for direct welding on in line heaters body or on dia. 80mm tubes.
– Hole for one M25 cable gland, or holes for one M25 and two M16
– Optional hole for pilot light
Dimensions | 125 × 125 × 105 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |
Description

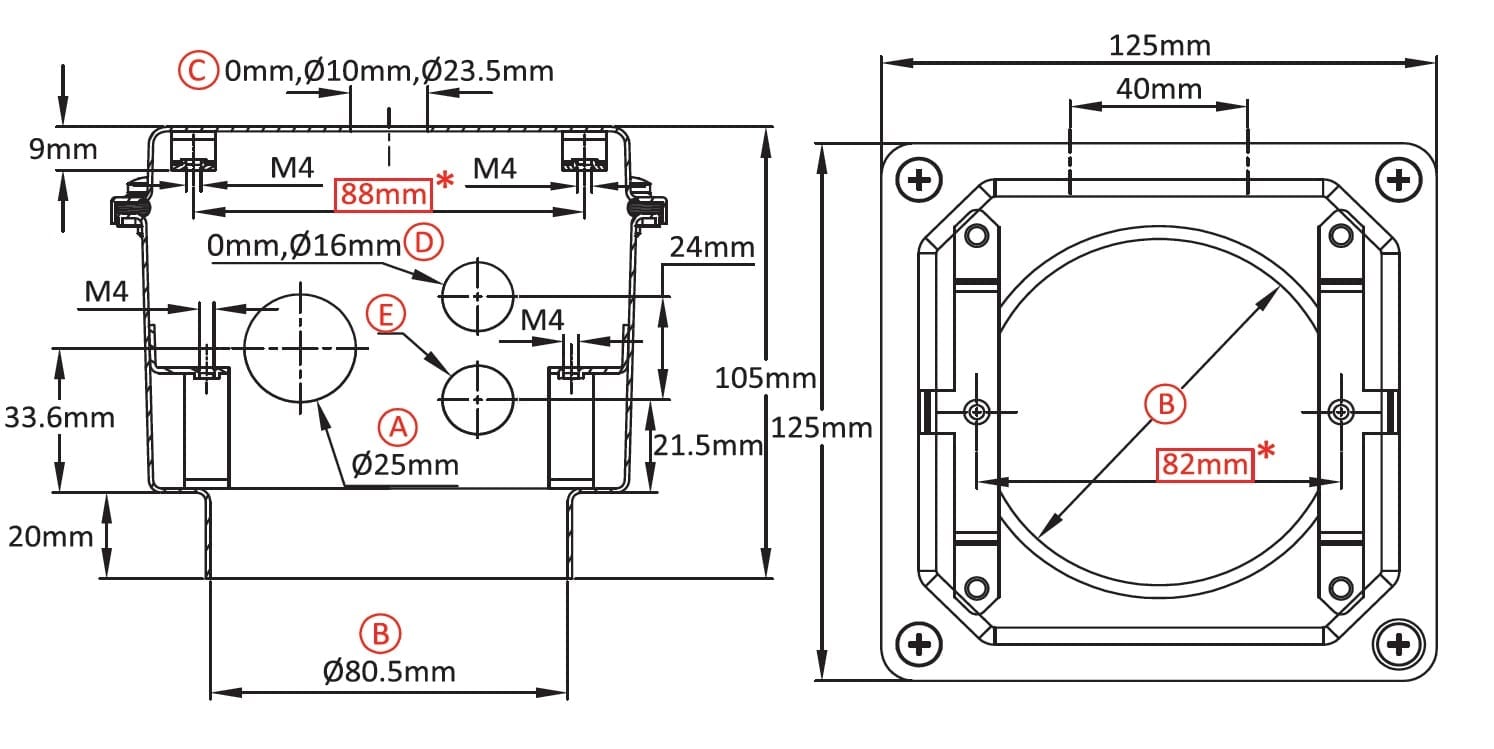

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

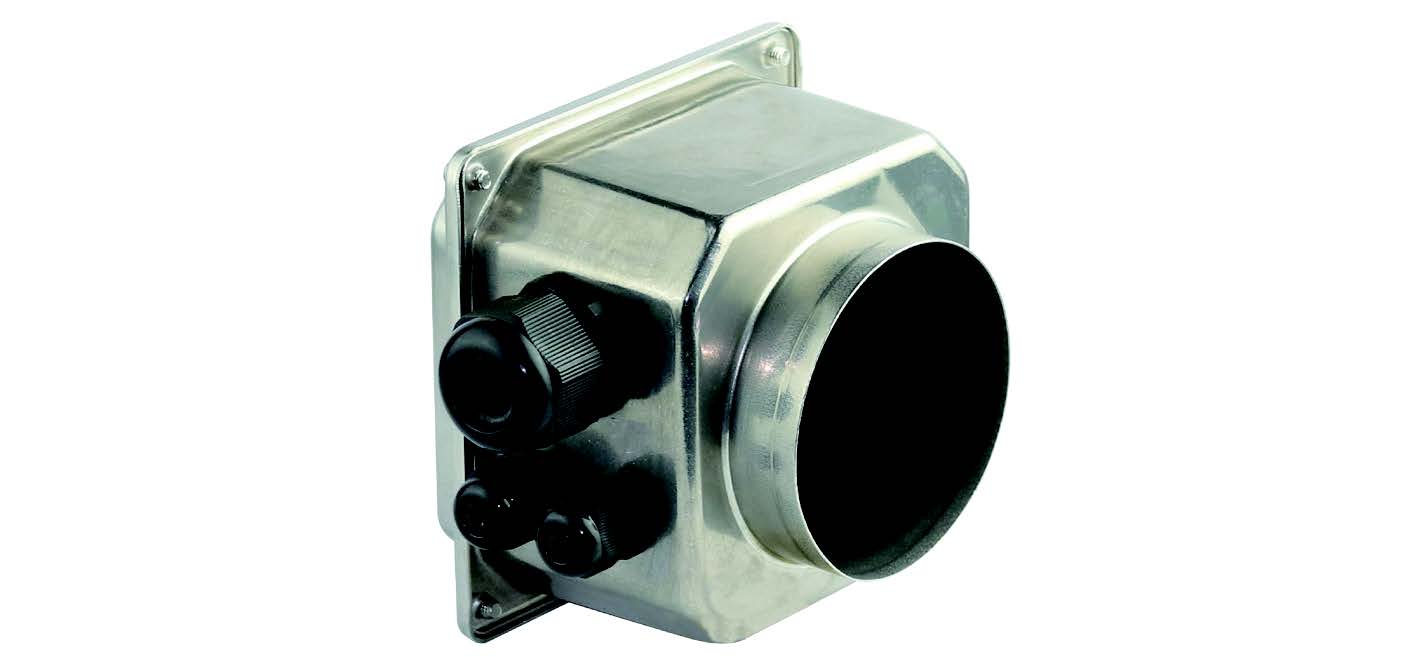

Big enclosure, for immersion heaters or instruments, with flat cover, for welding on tubes
– Bottom side with stamped hole with welding lips for direct welding on in line heaters body or on dia. 80mm tubes.
– Hole for one M25 cable gland, or holes for one M25 and two M16
– Optional hole for pilot light
Size: 125 x 125 x 105 mm
Volume: 1138 cm³
Material: Stainless steel deep drawn cover and bottom.
Ingress protection: IP69K
Mechanical impact resistance: IK7
Screws: Stainless Steel.
Cover gasket: Molded Silicone.
Basic references
A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | 304 | 316 |
25 | 80.5 | 0 | 16 | 16 | Y3TB80503S3G1008 | Y3TB80503S3G1009 |
25 | 80.5 | 10 | 16 | 16 | Y3TB805A3S3G1008 | Y3TB805A3S3G1009 |
25 | 80.5 | 23.5 | 16 | 16 | Y3TB805D3S3G1008 | Y3TB805D3S3G1009 |
25 | 80.5 | 0 | 0 | 16 | Y3TB80502C5G1008 | Y3TB80502C5G1009 |
25 | 80.5 | 10 | 0 | 16 | Y3TB805A2C5G1008 | Y3TB805A2C5G1009 |
25 | 80.5 | 23.5 | 0 | 16 | Y3TB805D2C5G1008 | Y3TB805D2C5G1009 |
25 | 80.5 | 0 | 0 | 0 | Y3TB8050125G1008 | Y3TB8050125G1009 |
25 | 80.5 | 10 | 0 | 0 | Y3TB805A125G1008 | Y3TB805A125G1009 |
25 | 80.5 | 23.5 | 0 | 0 | Y3TB805D125G1008 | Y3TB805D125G1009 |
Cable gland not included in these reference, consult us if you want them.
