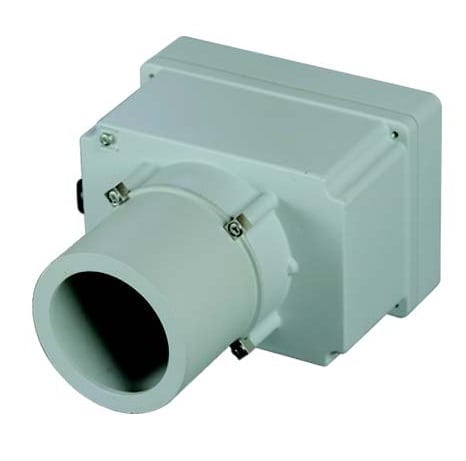

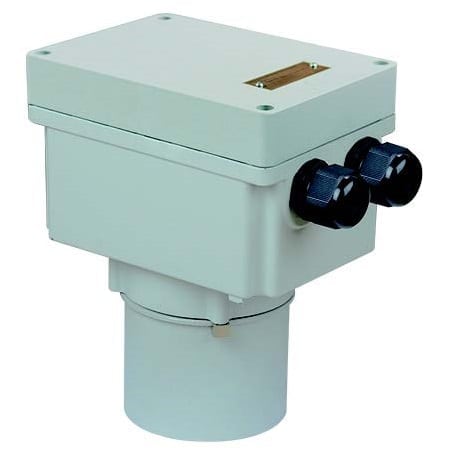

All aluminum enclosure, for immersion heater with high 120mm offset fitting, Y310
– Can accommodate all types of fittings up to M77x2 (with threaded ring or rotating ring)
– Up to 2”, the fittings are mounted on an aluminum plate that can be rotated to orient the enclosure during installation, without having to open it
– Can receive a power contactor
– Can receive an internal connection block up to 12 ways and up to 10mm²
Dimensions | 182 × 132 × 225 mm |
---|---|
Ingress protection | |
Housing raw material | |
Volume (cm³) |
Description

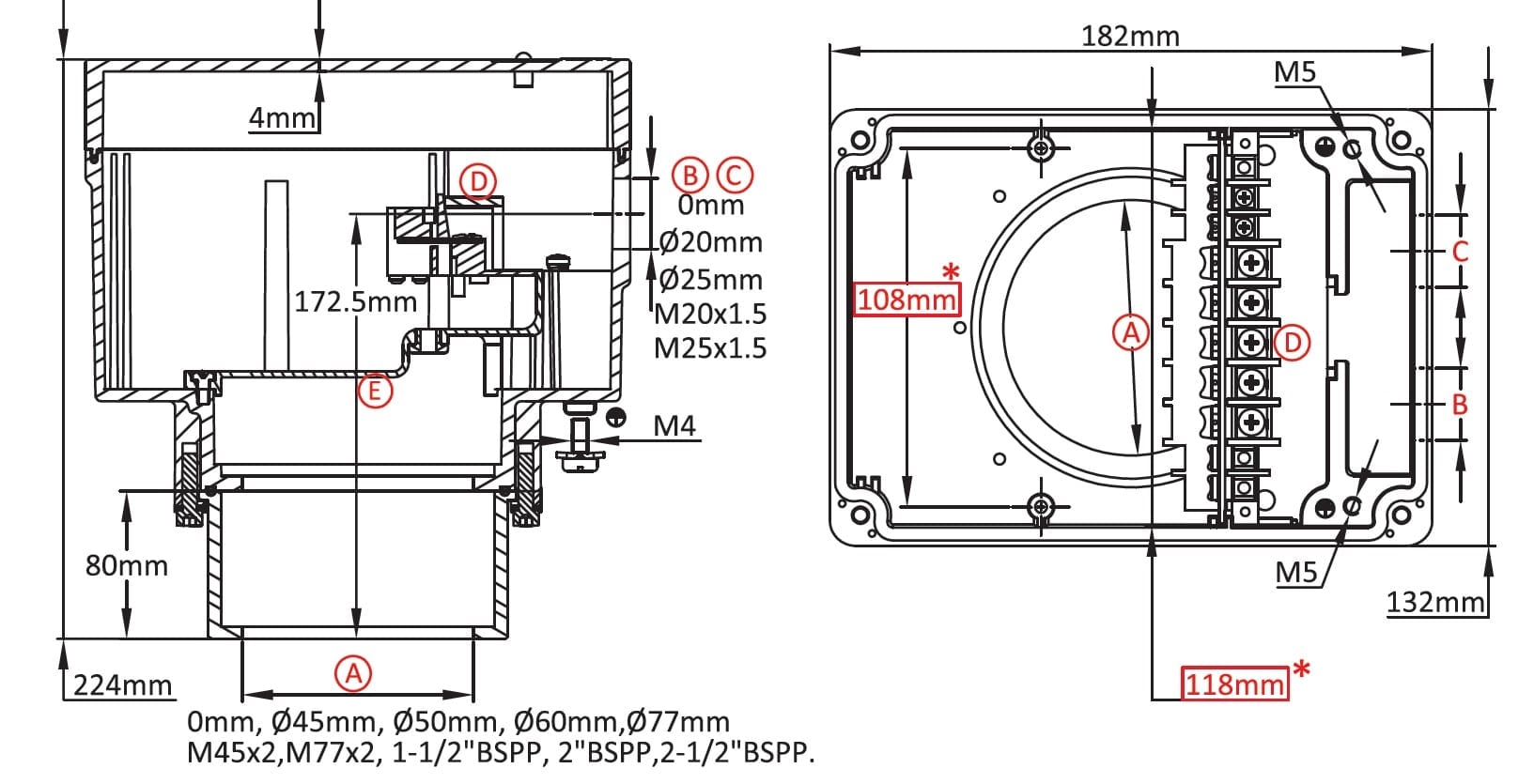

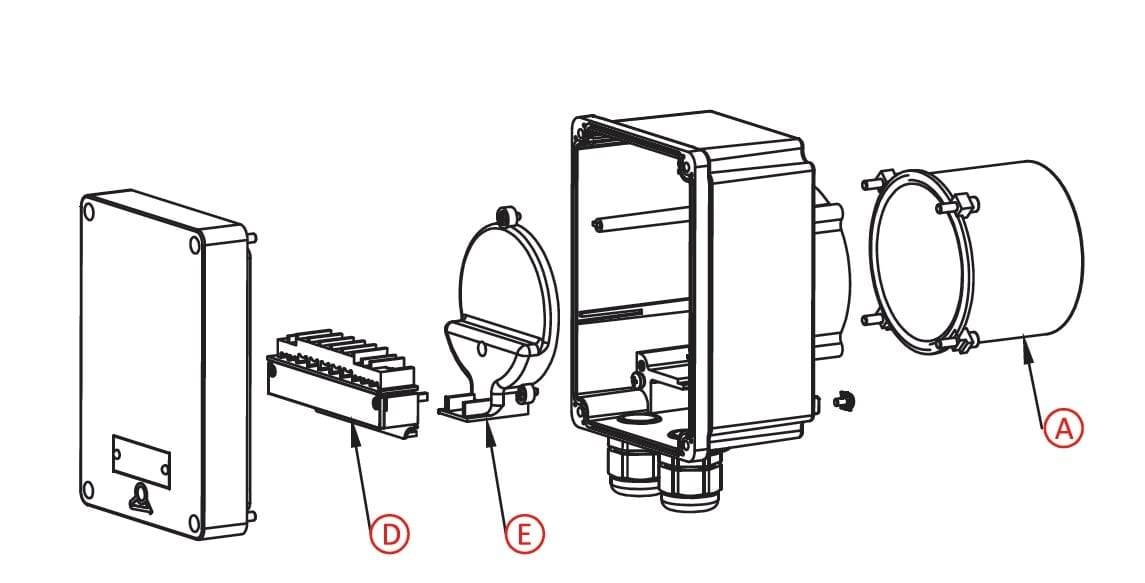

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
All aluminum enclosure, for immersion heater with high 120mm offset fitting
– Compatible only with 2 “½ and M77x2 fittings with rotating ring
– The fittings are mounted on an aluminum extension that can be rotated to orient the case during installation, without having to open it
– Can receive an internal connection block up to 12 terminals and up to 10mm²
– Can receive a power contactor
– Output by one or two M25 cable glands
Size: 182 x 132 x 225mm
Volume: 3426 cm³
Material: Aluminium
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | Not painted | Painted |
0 | 0 | 0 | Y3100000000J1007 | Y3100000000J100G |
0 | 20 | 0 | Y3100000120J1007 | Y3100000120J100G |
0 | 20 | 20 | Y3100000220J1007 | Y3100000220J100G |
0 | 25 | 0 | Y3100000125J1007 | Y3100000125J100G |
0 | 25 | 25 | Y3100000225J1007 | Y3100000225J100G |
0 | M20×1.5 | 0 | Y31000001T0J1007 | Y31000001T0J100G |
0 | M20×1.5 | M20×1.5 | Y31000002T0J1007 | Y31000002T0J100G |
0 | M25×1.5 | 0 | Y31000001T5J1007 | Y31000001T5J100G |
0 | M25×1.5 | M25×1.5 | Y31000002T5J1007 | Y31000002T5J100G |
45 | 0 | 0 | Y3104500000J1007 | Y3104500000J100G |
45 | 20 | 0 | Y3104500120J1007 | Y3104500120J100G |
45 | 20 | 20 | Y3104500220J1007 | Y3104500220J100G |
45 | 25 | 0 | Y3104500125J1007 | Y3104500125J100G |
45 | 25 | 25 | Y3104500225J1007 | Y3104500225J100G |
45 | M20×1.5 | 0 | Y31045001T0J1007 | Y31045001T0J100G |
45 | M20×1.5 | M20×1.5 | Y31045002T0J1007 | Y31045002T0J100G |
45 | M25×1.5 | 0 | Y31045001T5J1007 | Y31045001T5J100G |
45 | M25×1.5 | M25×1.5 | Y31045002T5J1007 | Y31045002T5J100G |
50 | 0 | 0 | Y3105000000J1007 | Y3105000000J100G |
50 | 20 | 0 | Y3105000120J1007 | Y3105000120J100G |
50 | 20 | 20 | Y3105000220J1007 | Y3105000220J100G |
50 | 25 | 0 | Y3105000125J1007 | Y3105000125J100G |
50 | 25 | 25 | Y3105000225J1007 | Y3105000225J100G |
50 | M20×1.5 | 0 | Y31050001T0J1007 | Y31050001T0J100G |
50 | M20×1.5 | M20×1.5 | Y31050002T0J1007 | Y31050002T0J100G |
50 | M25×1.5 | 0 | Y31050001T5J1007 | Y31050001T5J100G |
50 | M25×1.5 | M25×1.5 | Y31050002T5J1007 | Y31050002T5J100G |
60 | 0 | 0 | Y3106000000J1007 | Y3106000000J100G |
60 | 20 | 0 | Y3106000120J1007 | Y3106000120J100G |
60 | 20 | 20 | Y3106000220J1007 | Y3106000220J100G |
60 | 25 | 0 | Y3106000125J1007 | Y3106000125J100G |
60 | 25 | 25 | Y3106000225J1007 | Y3106000225J100G |
60 | M20×1.5 | 0 | Y31060001T0J1007 | Y31060001T0J100G |
60 | M20×1.5 | M20×1.5 | Y31060002T0J1007 | Y31060002T0J100G |
60 | M25×1.5 | 0 | Y31060001T5J1007 | Y31060001T5J100G |
60 | M25×1.5 | M25×1.5 | Y31060002T5J1007 | Y31060002T5J100G |
77 | 0 | 0 | Y3107700000J1007 | Y3107700000J100G |
77 | 20 | 0 | Y3107700120J1007 | Y3107700120J100G |
77 | 20 | 20 | Y3107700220J1007 | Y3107700220J100G |
77 | 25 | 0 | Y3107700125J1007 | Y3107700125J100G |
77 | 25 | 25 | Y3107700225J1007 | Y3107700225J100G |
77 | M20×1.5 | 0 | Y31077001T0J1007 | Y31077001T0J100G |
77 | M20×1.5 | M20×1.5 | Y31077002T0J1007 | Y31077002T0J100G |
77 | M25×1.5 | 0 | Y31077001T5J1007 | Y31077001T5J100G |
77 | M25×1.5 | M25×1.5 | Y31077002T5J1007 | Y31077002T5J100G |
M45×2 | 0 | 0 | Y310M450000J1007 | Y310M450000J100G |
M45×2 | 20 | 0 | Y310M450120J1007 | Y310M450120J100G |
M45×2 | 20 | 20 | Y310M450220J1007 | Y310M450220J100G |
M45×2 | 25 | 0 | Y310M450125J1007 | Y310M450125J100G |
M45×2 | 25 | 25 | Y310M450225J1007 | Y310M450225J100G |
M45×2 | M20×1.5 | 0 | Y310M4501T0J1007 | Y310M4501T0J100G |
M45×2 | M20×1.5 | M20×1.5 | Y310M4502T0J1007 | Y310M4502T0J100G |
M45×2 | M25×1.5 | 0 | Y310M4501T5J1007 | Y310M4501T5J100G |
M45×2 | M25×1.5 | M25×1.5 | Y310M4502T5J1007 | Y310M4502T5J100G |
M77×2 | 0 | 0 | Y310M770000J1007 | Y310M770000J100G |
M77×2 | 20 | 0 | Y310M770120J1007 | Y310M770120J100G |
M77×2 | 20 | 20 | Y310M770220J1007 | Y310M770220J100G |
M77×2 | 25 | 0 | Y310M770125J1007 | Y310M770125J100G |
M77×2 | 25 | 25 | Y310M770225J1007 | Y310M770225J100G |
M77×2 | M20×1.5 | 0 | Y310M7701T0J1007 | Y310M7701T0J100G |
M77×2 | M20×1.5 | M20×1.5 | Y310M7702T0J1007 | Y310M7702T0J100G |
M77×2 | M25×1.5 | 0 | Y310M7701T5J1007 | Y310M7701T5J100G |
M77×2 | M25×1.5 | M25×1.5 | Y310M7702T5J1007 | Y310M7702T5J100G |
1½”BSPP | 0 | 0 | Y310BA20000J1007 | Y310BA20000J100G |
1½”BSPP | 20 | 0 | Y310BA20120 J1007 | Y310BA20120 J100G |
1½”BSPP | 20 | 20 | Y310BA20220J1007 | Y310BA20220J100G |
1½”BSPP | 25 | 0 | Y310BA20125J1007 | Y310BA20125J100G |
1½”BSPP | 25 | 25 | Y310BA20225J1007 | Y310BA20225J100G |
1½”BSPP | M20×1.5 | 0 | Y310BA201T0J1007 | Y310BA201T0J100G |
1½”BSPP | M20×1.5 | M20×1.5 | Y310BA202T0J1007 | Y310BA202T0J100G |
1½”BSPP | M25×1.5 | 0 | Y310BA201T5J1007 | Y310BA201T5J100G |
1½”BSPP | M25×1.5 | M25×1.5 | Y310BA202T5J1007 | Y310BA202T5J100G |
2″BSPP | 0 | 0 | Y310BB20000J1007 | Y310BB20000J100G |
2″BSPP | 20 | 0 | Y310BB20120J1007 | Y310BB20120J100G |
2″BSPP | 20 | 20 | Y310BB20220J1007 | Y310BB20220J100G |
2″BSPP | 25 | 0 | Y310BB20125J1007 | Y310BB20125J100G |
2″BSPP | 25 | 25 | Y310BB20225J1007 | Y310BB20225J100G |
2″BSPP | M20×1.5 | 0 | Y310BB201T0J1007 | Y310BB201T0J100G |
2″BSPP | M20×1.5 | M20×1.5 | Y310BB202T0J1007 | Y310BB202T0J100G |
2″BSPP | M25×1.5 | 0 | Y310BB201T5J1007 | Y310BB201T5J100G |
2″BSPP | M25×1.5 | M25×1.5 | Y310BB202T5J1007 | Y310BB202T5J100G |
2½”BSPP | 0 | 0 | Y310BC20000J1007 | Y310BC20000J100G |
2½”BSPP | 20 | 0 | Y310BC20120J1007 | Y310BC20120J100G |
2½”BSPP | 20 | 20 | Y310BC20220 J1007 | Y310BC20220J100G |
2½”BSPP | 25 | 0 | Y310BC20125 J1007 | Y310BC20125J100G |
2½”BSPP | 25 | 25 | Y310BC20225 J1007 | Y310BC20225J100G |
2½”BSPP | M20×1.5 | 0 | Y310BC201T0 J1007 | Y310BC201T0J100G |
2½”BSPP | M20×1.5 | M20×1.5 | Y310BC202T0 J1007 | Y310BC202T0 J100G |
2½”BSPP | M25×1.5 | 0 | Y310BC201T5 J1007 | Y310BC201T5J100G |
2½”BSPP | M25×1.5 | M25×1.5 | Y310BC202T5 J1007 | Y310BC202T5J100G |
Cable gland not included in these reference, consult us if you want them.
3D models are available on request under .stp format
