3 pole manual reset high limit, fail safe

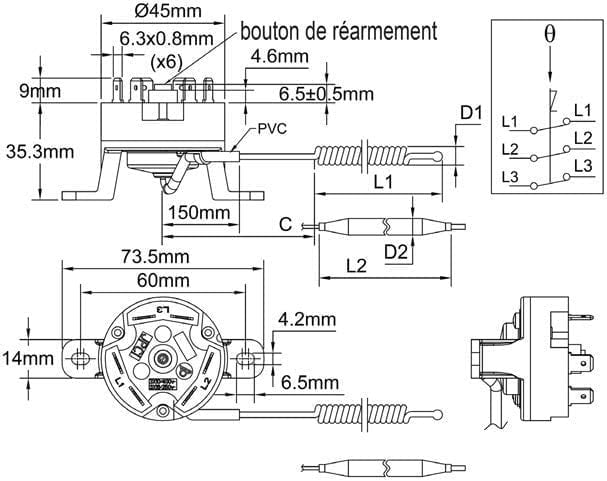

Housing dimensions: dia 45 x 44.3 mm
Capillary: copper, capillary length 250mm or 900 mm, 150 mm long PVC sleeve on capillary.
Electrical rating | |
---|---|
Voltage | |
Max operating temperature (°C) | |
Opening temperature (°C) | |
Min resettable temperature (°C) | |
Capillary length (mm) | |
Bulb diameter (mm) | |
Bulb length (mm) |
Description
TECHNICAL FEATURES
Housing dimensions: dia 45 x 44.3 mm
Capillary: copper, capillary length 250mm or 900 mm, 150 mm long PVC sleeve on capillary. Capillary minimum bending radius 5 mm. For technical reasons, we do not recommend to use capillary length longer than 900 mm.
Bulb: Copper, corkscrew type for temperatures from 60 to 130°C(140 to 266°F),tubular dia 6 mm from 130°C to 170°C (266 to 338°F).
Temperature sensing element: Liquid-filled thermostatic assembly whose boiling causes tripping of the contact. Therefore, unlike liquid filled systems, these thermostats are sensitive to atmospheric pressure, and their reaction time is slower.
Terminals: 6.35 x 0.8 quick connect terminals Adjustment: fixed setting
Mounting: Backside legs, 2 M4 screws, holes distance 60 mm
Manual reset: fail safe action, center button
Rating: 3 x 16A 250VAC, 3 x 10A 400VAC, resistive (10000 cycles) 3 x 25A 250VAC, 3 x 16A 400VAC (300 cycles)
Contacts: ST, open on temperature rise (snap action contact)
Max ambient temperature on head: 150°C(302°F)
Main references
Reference |
Calibration Temperature (°C/°F) |
Minimum resettable temperature (°C/°F) |
Capillary length (mm) |
Bulb diameter (mm) |
Bulb length (mm) |
Max temperature on bulb (°C/°F) |
820060090CI61001 | 60±5°C/140±41°F | 20°C/68°F | 900 | 6 | 50 | 90°C/194°F |
820060090CA61001 | 60±5°C/140±41°F | 20°C/68°F | 250 | 6 | 50 | 90°C/194°F |
820070100CI61001 | 70±5°C/158±41°F | 30°C/86°F | 900 | 6 | 50 | 100°C/212°F |
820080110CI61001 | 80±5°C/176±41°F | 40°C/104°F | 900 | 6 | 50 | 110°C/230°F |
820090120CI61001 | 90±5°C/194±41°F | 50°C/122°F | 900 | 6 | 50 | 120°C/248°F |
820110140CI61001 | 110±5°C/230±41°F | 70°C/158°F | 900 | 6 | 50 | 140°C/284°F |
820130160CI61001 | 130±6°C/266±42.8°F | 90°C/194°F | 900 | 6 | 60* | 160°C/320°F |
820150180CI61001 | 150±7°C/302±44.6°F | 110°C/230°F | 900 | 6 | 60* | 180°C/356°F |
820170200CI61001 | 170±7°C/338±44.6°F | 130°C/266°F | 900 | 6 | 60* | 200°C/392°F |
