Single pole manual reset disc thermostat, 1/2’’, snap action

Dia. 10mm cartridge thermostat 1/2"BSPT or M14x1.5 fitting, calibration from 50 to 120°C
3 pole manual reset disc thermostats
Temperature limit of heaters, instant water heaters, saunas steam generators, industrial heaters
Electrical rating | |
---|---|
Voltage | |
Max operating temperature (°C) | |
Opening temperature (°C) | 70, 75, 80, 85, 90, 95, 100, 105, 110, 120, 130, 140, 150, 160 |
Opening tolerance (°C) |
Description
TECHNICAL FEATURES
Applications: Temperature limit of heaters, instant water heaters, saunas steam generators, industrial heaters

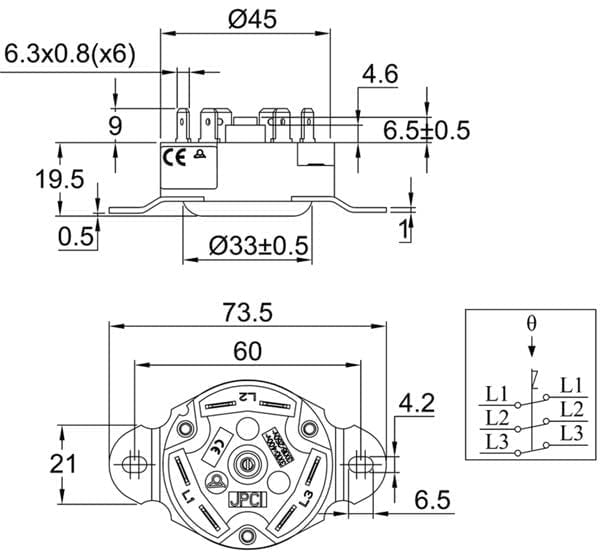

Housing dimensions: diameter 45mm, height 20mm (28mm with terminals),
Body material: high temperature PPS
Temperature sensing element: Bimetal disc
Terminals: 6.35 x 0.8mm quick connect
Set point temperature range: +20 to +180°C (Factory fixed setting only)
Mounting: surface mounting fixed bracket, 2 holes 4.4 x 6.4mm, 60 mm distance
Rating: 3 x 16A 250VAC, 3 x 10A 400VAC, resistive (10000 cycles) 3 x 25A 250VAC, 3 x 16A 400VAC (300 cycles)
Contact: 3 snap action contacts, double break, open on temperature rise.
Max ambient temperature: 180°C
Approvals: comply with EN 60730-1 and EN 60730-2 standards (CE mark)
Main references
References | Operating Temperature (°C/°F) | Tolerance (°C/°F) | References | Operating Temperature (°C/°F) | Tolerance (°C/°F) |
4C504T070RMEM60D | 70°C/158°F | ±4°C/±39.2°F | 4C504T105RMEM60D | 105°C/221°F | ±6°C/±42.8°F |
4C504T075RMEM60D | 75°C/167°F | ±4°C/±39.2°F | 4C504T110RMEM60D | 110°C/230°F | ±6°C/±42.8°F |
4C504T080RMEM60D | 80°C/176°F | ±5°C/±41°F | 4C504T120RMEM60D | 120°C/248°F | ±6°C/±42.8°F |
4C504T085RMEM60D | 85°C/185°F | ±5°C/±41°F | 4C504T130RMEM60D | 130°C/266°F | ±6°C/±42.8°F |
4C504T090RMEM60D | 90°C/194°F | ±5°C/±41°F | 4C504T140RMEM60D | 140°F/284°F | ±7°C/±44.6°F |
4C504T095RMEM60D | 95°C/203°F | ±5°C/±41°F | 4C504T150RMGM60D | 150°C/302°F | ±7°C/±44.6°F |
4C504T100RMEM60D | 100°C/212°C | ±5°C/±41°F | 4C504T160RMEM60D | 160°C/320°F | ±7°C/±44.6°F |
