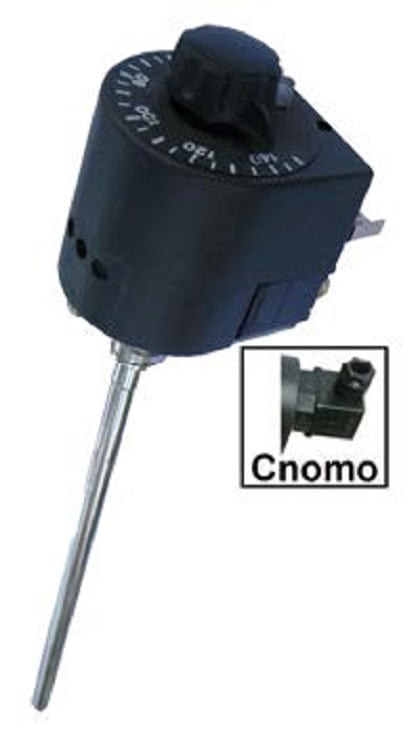

SPDT Bimetal rod thermostats with dead zone

These thermostat have a rod section that is not sensible to temperature. This allows to keep the thermostat head away from high temperatures. Therefore, they are more used in air duct temperature control.

Electrical rating

Max operating temperature (°C)

Temperature adjustment range (°C)

, , , ,

Rod length (mm)

, ,

Differential (°C)

, , , , , , ,

Max temperature on rod (°C)

, , , ,

Send an inquiry for this item
  • I agree that that the website retain and use my personal information to renew contact with me.
Insert a valid name
insert a valid mail
Insert message
Authorization needed to validate the form.

Description

TECHNICAL FEATURES

Applications: These thermostat have a rod section that is not sensible to temperature. This allows to keep the thermostat head away from high temperatures. Therefore, they are more used in air duct temperature control.

Temperature ranges: 0-100°C (32-212°F), 0-200 °C (32-392°F), 0-300°C (32-572°F), 0-400°C (32-752°F)

Housing dimensions: 65 x48 x 48 mm (knob not included)

Material: PA66 housing, and Aisi 304 stainless steel rod

Temperature sensing element: Invar/stainless steel bimetal rod, temperature sensing

Electrical connections: screw terminals

Mounting:

  • For liquid temperature sensing: inside pocket with internal diameter > 10 mm , or directly on 3/8”BSPP thread under the head, or with 3/8 x1/2” fitting (see accessories)
  • For air temperature sensing measurement: with stainless steel bracket, with or without rod cooler

Rating: 16(4)A 250/400VAC, 300.000 cycles. Reduced differential model is not recommended for 400V applications. Contacts: SPDT, snap action

Max ambient temperature on the head: 85°C (185°F)

Options:

  • Cnomo electrical connector
  • Other temperature
  • Other rod lengths
  • IP65 aluminum housing

Accessories: BSPT 1/2’’ stainless steel pocket, fittings, bracket, see full description and references  at end of this catalogue

Approvals: comply with EN 60730-1 and EN 60730-2 standards
