Fixed setting manual reset bulb and capillary limiter IP65
Applications
-Remote control in usual industrial applications and environments, not hazardous areas, for use as high limit safety.
-Sealed temperature set point
-Internal reset is convenient for products that must not be frequently reset.
Housing raw material | |
---|---|
Color | |
Ingress protection | |
Mechanical protection | |
Contact Material | |
Electrical rating | |
Voltage | |
Electrical life (cycles at rated value) | |
Measurement type | |
Sensing element |
Enclosure | Type | Operation | Contact | Measurement | Ranges °C | Models |
IP65, IK10 | manual reset | Mechanical | SPNC | Remote | Y1I8L
& Y1G8L |
|
Material |
||||||
Aluminum |
Applications
-Remote control in usual industrial applications and environments, not hazardous areas, for use as high limit safety.
-Sealed temperature set point
-Internal reset is convenient for products that must not be frequently reset.

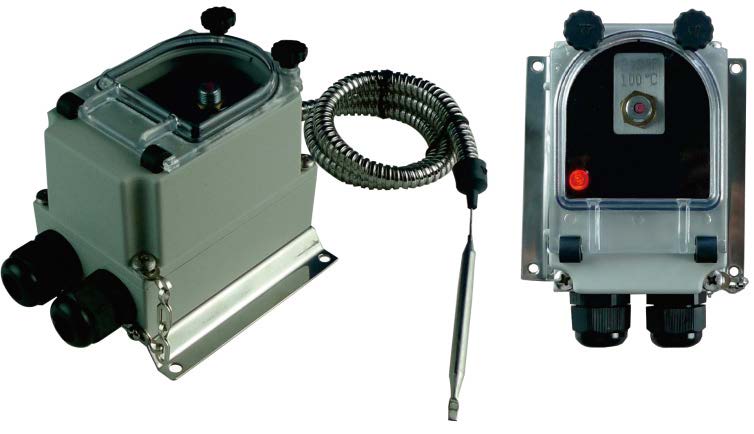

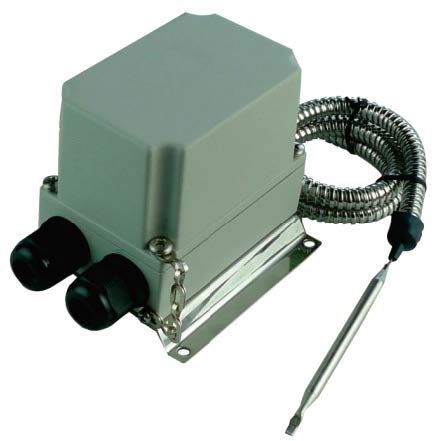

Housing:Aluminum, IP65, IK10. Mounted on a SUS304 stainless steel wall mounting plate which keeps the temperature sensing element away from the wall. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid
Action:Fail safe manual reset high temperature limit.
Set point calibration value:80±8°C (176±15°F), 90±8°C (194±15°F), 110±8°C (230±15°F), 130±8°C (266±15°F), 150±8°C (302±15°F),
175±8°C (347±15°F), 220±11°C (428±20°F), 270±13°C (518±23°F), 300±15°C (572±27°F). Other calibration temperature on request, between 30°C and 320°C (85°F and 610°F)
Temperature adjustment:Fixed setting, sealed, no access to user.
Sensing element:Liquid expansion bulb and capillary. The capillary is protected by a stainless steel corrugated pipe terminated by a silicone tip. A plastic cap plug provided as standard accessory allows locking the flexible metal conduit inside a pocket. (See pockets in the accessories section)
Electrical connections:Inside, on screw terminal connection block. Possibility to connect two wires 1.5mm² on each terminal.
Pilot light: Allows to visualize limiter contact output position. Standard for all models with transparent window. Non-standard and on special request only for models with plain aluminum cover. (230V, 2 phase power supply, is mandatory for the pilot light)
Cable input and output:Two M20 cable glands, Black PA66.
Earthing:Internal and external screw terminal.
Cable output:M16 cable gland, PA66, for cables up to 10 mm dia.

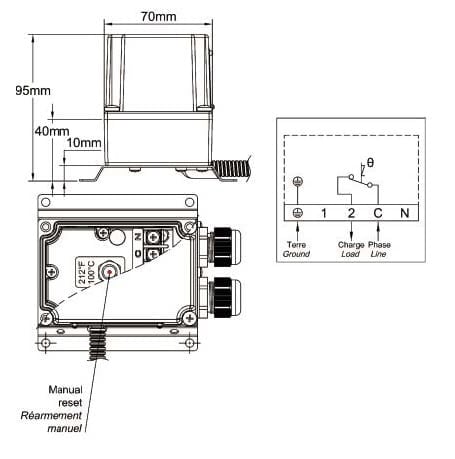

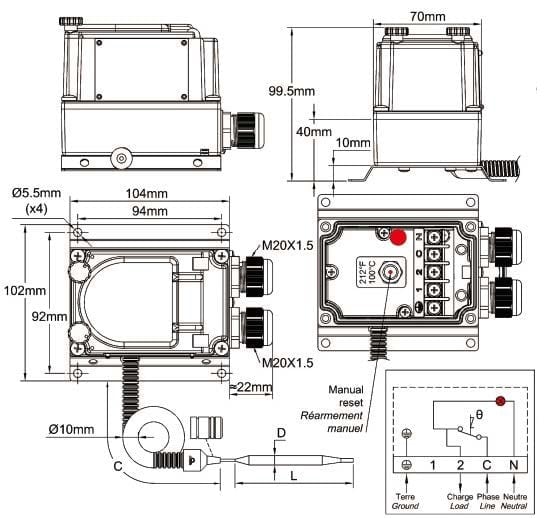

Mounting:Wall mounting, by 4 holes for screws dia. 4 to 5 mm, 94 x 92 mm distance.
Identification:Metallic identification label, riveted. Set point calibration is printed in °C and °F beside the manual reset button.
Contact:Single pole, open on temperature rise (SPNC)
Electrical rating:16A res. 250/400VAC
-Electrical life > 6.000 cycles.
Minimum storage temperature:-35°C (-30°F)
Maximum ambient temperature:60°C (140°F)
For more technical information ask 8L limiter technical data sheet
Main references
Calibration temperature°C (°F) | References with external adjustment | References with internal adjustment | Minimum resettable temperature °C (°F) | Capillary length (C, mm) | Bulb diameter (D, mm) | Bulb length (L, mm) | Max temperature on bulb°C (°F) |
80±8°C (176±15°F) | Y1I8L0080105AO6D | Y1G8L0080105AO6D | 52°C (126°F) | 1500 | 6 | 77 | 105°C (221°F) |
90±8°C (194±15°F) | Y1I8L0090115AO6D | Y1G8L0090115AO6D | 60°C (140°F) | 1500 | 6 | 77 | 115°C (239°F) |
110±8°C (230±15°F) | Y1I8L0110135AO6D | Y1G8L0110135AO6D | 75°C (167°F) | 1500 | 6 | 77 | 135°C (275°F) |
130±8°C (266±15°F) | Y1I8L0130155AO6D | Y1G8L0130155AO6D | 80°C (176°F) | 1500 | 6 | 74 | 155°C (311°F) |
150±8°C (302±15°F) | Y1I8L0150175AO6D | Y1G8L0150175AO6D | 95°C (203°F) | 1500 | 6 | 74 | 175°C (347°F) |
175±8°C (347±15°F) | Y1I8L0175200AO4D | Y1G8L0175200AO4D | 115°C (239°F) | 1500 | 4 | 95 | 200°C (392°F) |
220±11°C(428±20°F) | Y1I8L0220245AO4D | Y1G8L0220245AO4D | 140°C (284°F) | 1500 | 4 | 90 | 245°C (473°F) |
270±13°C(518±23°F) | Y1I8L0270295AO4D | Y1G8L0270295AO4D | 160°C (320°F) | 1500 | 4 | 85 | 295°C (563°F) |
300±15°C(572±27°F) | Y1I8L0300325AO4D | Y1G8L0300325AO4D | 160°C (320°F) | 1500 | 4 | 82 | 325°C (617°F) |
