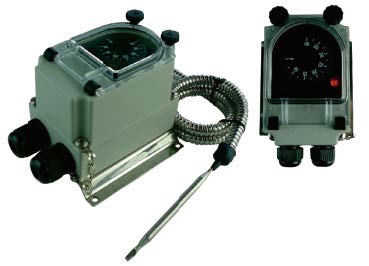

3 pole bulb and capillary thermostat IP65
Applications
Remote control in usual industrial application and environment, not hazardous areas, when it is requested to control a 3 phases heating circuit.
Internal adjustment is convenient for products that must not be frequently adjusted.
Housing raw material | |
---|---|
Color | |
Ingress protection | |
Mechanical protection | |
Contact style | |
Contact Material | |
Electrical rating | |
Voltage | |
Electrical life (cycles at rated value) | |
Measurement type | |
Sensing element |
Description
Enclosure | Type | Operation | Contact | Measurement | Ranges °C | Models |
IP65, IK10 | Control | Mechanical | 3PNC | Remote | ![]() |
Y1I8C
& Y1G8C |
Material |
![]() |
![]() |
![]() |
![]() |
||
Aluminum |
Applications
Remote control in usual industrial application and environment, not hazardous areas, when it is requested to control a 3 phases heating circuit.
Internal adjustment is convenient for products that must not be frequently adjusted.
Housing: Aluminum, IP65, IK10. Mounted on a SUS304 stainless steel wall mounting plate which keeps temperature sensing element away from the wall. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid.
Set point adjustment ranges: -35+35°C (-30+95°F); -10+40°C (15-105°F); 4-40°C (40-105°F); 0-60°C (32-140°F); 0-90°C (32-195°F); 30-90°C (85- 195°F); 30-110°C (85-230°F); 50-200°C (120-390°F); 50-300°C (120-570°F); 100-400°C (210-750°F).
Set point adjustment: By °C printed knob. All types have an adjustable rotation limit system located inside the knob that allows reducing the set point adjustment span.Types with external adjustment have a transparent window. This device allows seeing the pilot light and the knob position. °F values are available in option
Action: Temperature control.
Sensing element: Liquid expansion bulb and capillary. The capillary is protected by a stainless steel corrugated pipe terminated by a silicone tip. A plastic cap plug provided as standard accessory allows locking the flexible metal conduit inside a pocket (See pockets in the accessories section).
Electrical connections: Inside, on screw terminal connection block
Earthing: External screw terminal.
Cable input and output: Two M20 cable gland, Black PA66.

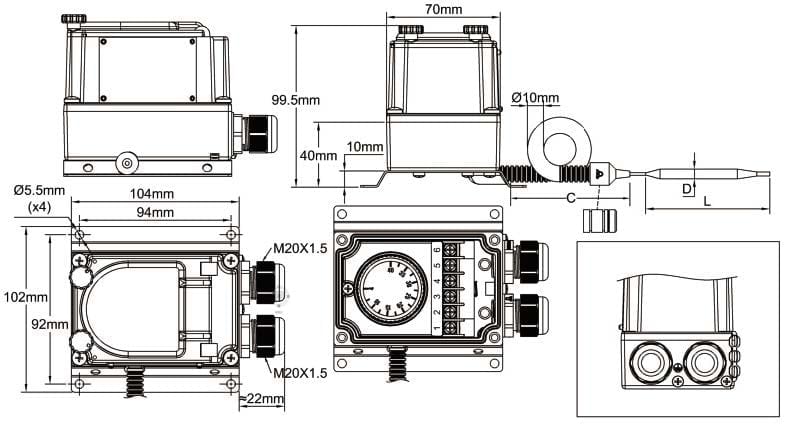

Mounting: Wall mounting, by 4 holes for screws dia. 4 to 5 mm, 94 x 92 mm distance
Identification: Metallic identification label, riveted.
Contact: 3PST, open on temperature rise
Electrical rating, resistive loads:
16A 250V, 50 ~60Hz: >100000 cycles,
20A 250V, 50 ~60Hz: ≥ 50000 cycles,
10A 400V, 50 ~60Hz: ≥ 50000 cycles.
Minimum Storage temperature: -35°C (-30°F)
Maximum ambient temperature: 60°C (140°F)
For more technical information ask 8C thermostat technical data sheet.
Main references
Temperature range
°C (°F) |
Reference with external adjustment | Reference with internal adjustment | Capillary length (C, mm) | Bulb diameter (D, mm) | Bulb length (L, mm) | Differential°C (°F) | Max temperature on bulb °C (°F) |
-35+35°C (-30+95°F) | Y1I8C5035AO6000J | Y1G8C5035AO6000J | 1500 | 6 | 120±5 | 1,6±1°C (2,9±2°F) | 60°C (140°F) |
-10+40°C (15-105°F) | Y1I8C0040AO6000J | Y1G8C0040AO6000J | 1500 | 6 | 107±5 | 1,5±1°C (2,7±2°F) | 70°C (158°F) |
4-40°C (40-105°F) | Y1I8C4040AO6000J | Y1G8C4040AO6000J | 1500 | 6 | 120±5 | 1±0.5°C (1,8±1°F) | 70°C (158°F) |
0-60°C (32-140°F) | Y1I8C0060AO6000J | Y1G8C0060AO6000J | 1500 | 6 | 86±5 | 2.5±1°C (4,5±1,8°F | 80°C (176°F) |
0-90°C (32-195°F) | Y1I8C0090AO6000J | Y1G8C0090AO6000J | 1500 | 6 | 98±5 | 2.5±1°C (4,5±1,8°F) | 120°C (250°F) |
30-90°C (85-195°F) | Y1I8C3090AO6000J | Y1G8C3090AO6000J | 1500 | 6 | 98±5 | 2.5±1°C (4,5±1,8°F) | 120°C (250°F) |
30-110°C (85-230°F) | Y1I8C3110AO6000J | Y1G8C3110AO6000J | 1500 | 6 | 86±5 | 2.5±1°C (4,5±1,8°F) | 140°C (284°F) |
50-200°C (120-390°F) | Y1I8C5200AO6000J | Y1G8C5200AO6000J | 1500 | 6 | 65±5 | 4±2°C (7±3.6°F) | 230°C (446°F) |
50-300°C (120-570°F) | Y1I8C5300AO3000J | Y1G8C5300AO3000J | 1500 | 3 | 145±5 | 10°C±2°C (18±3.6°F) | 330°C (626°F) |
100-400°C (210-750°F) | Y1I8CA400AO3000J | Y1G8CA400AO3000J | 1500 | 3 | 93±5 | 10°C±2°C (18±3.6°F) | 430°C (800°F) |
