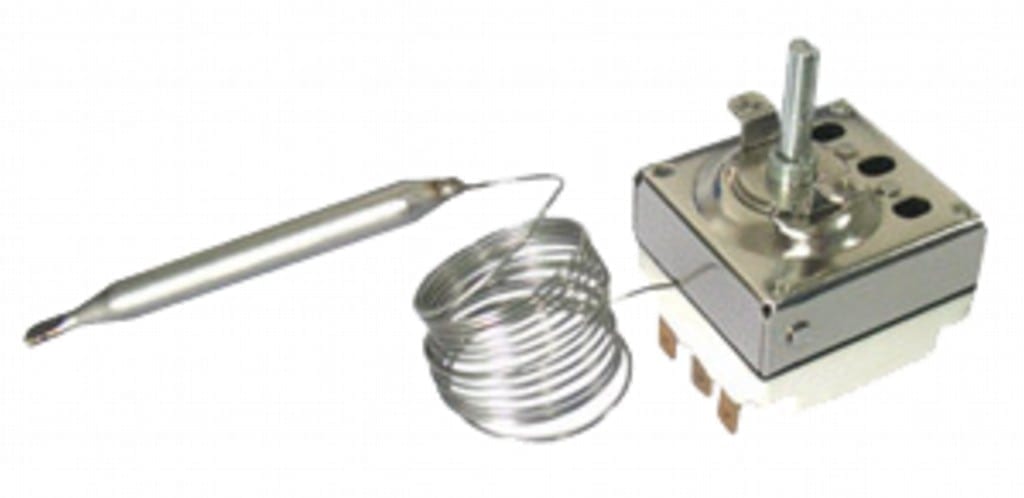

3 pole control thermostats

Housing dimensions: 46 x 50 x 45mm

Bulb and capillary: stainless steel, capillary length 250mm or 1500 mm, 150 mm long PVC sleeve on capillary.

Electrical rating	16A
Temperature adjustment range (°C)	-35/+35, 4/40, 30/90, 30/110, 50/200, 50/300
Capillary length (mm)	250, 1500
Bulb diameter (mm)	3, 6
Bulb length (mm)	57, 70, 86, 95, 160, 165
Differential (°C)	4±2, 6±3, 13±4, 15±5
Max temperature on bulb (°C)	110, 130, 220, 320, 50

Temperature adjustment range (°C)

Capillary length (mm)

Bulb diameter (mm)

Bulb length (mm)

Differential (°C)

Max temperature on bulb (°C)

Clear

SKU: N/A Category: Bulb and capillary thermostats Tags: 3 pole, temperature, Bulb and capillary, temperature control

TECHNICAL FEATURES

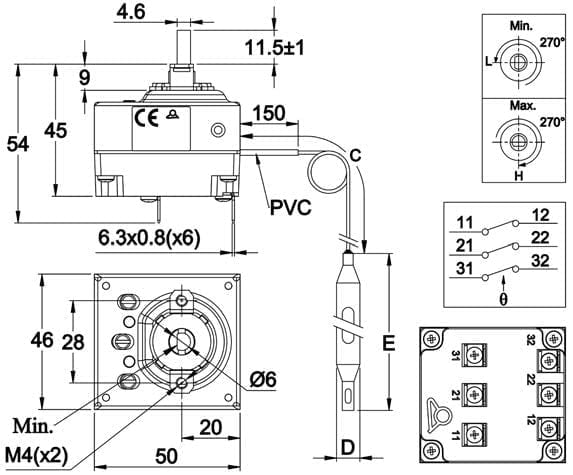

Housing dimensions: 46 x 50 x 45mm (without terminals)

Bulb and capillary: stainless steel, capillary length 250mm or 1500 mm, 150 mm long PVC sleeve on capillary. Capillary minimum bending radius 5 mm.

Temperature sensing element: liquid filled bulb and capillary.

Terminals: 6.35 x 0.8 quick connect terminals .M4 screws also available on request.

Adjustment: Dia. 6 mm shaft with 4.6 mm flat, (other lengths or fixed setting available on request).

Mounting: Front bracket with 2 xM4 threads, 28 mm distance

Rating: 3 x 16A(4) 250VAC, 10A 400VAC

Contacts: 3 x ST with snap action contact, 3PDT available on request

Main references

Show references

Downloads

Datasheet

3 pole control thermostats 8C

Technical informations associated to this product

Electrical contacts
As numerous mechanisms exist, we decided not to distinguish on the basis of constructive technique, but according to their operation speed, which is the key element.
Description of temperature controls
Used as control thermostats or as a safety thermostat with manual reset, these thermostats have a disc made of two different metals laminated together for temperature sensing element. These two metals have different expansion coefficients.
Electrical protection classes
The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.)
Thermostats installation
The proper functioning of a thermostat depends primarily on the correct choice of the component, but also the conditions of its installation. Conditions used to calibrate regulating and control equipment in the factory are always ideal laboratory conditions, ensuring measurement accuracy and repeatability. These conditions are rarely those found in practice when installing thermostats. However, with a minimum of constraints, it is possible to optimize assemblies.

Reference	Temperature range (°C/°F)	Capillary length (mm)	Bulb diameter (mm)	Bulb length (mm)	Differential (°C/°F)	Max temperature on bulb (°C/°F)
8CB-35035AO60001	-35+35°C (-30+95°F)	1500	6	95	4±2°C/7±3.6 °F)	50°C/122°F
8CB-35035AA60001	-35+35°C (-30+95°F)	250	6	95	4±2°C/7±3.6 °F)	50°C/122°F
8CB004040AO60001	4-40°C (40-105°F)	1500	6	160	4±2°C/7±3.6 °F)	50°C/122°F
8CB004040AA60001	4-40°C (40-105°F)	250	6	160	4±2°C/7±3.6 °F)	50°C/122°F
8CB030090AO60001	30-90°C (85-195°F)	1500	6	86	6±3°C/42.8±37.4°F	110°C/230°F
8CB030110AO60001	30-110°C (85-230°F)	1500	6	70	6±3°C/42.8±37.4°F	130°C/266°F
8CB050200AO60001	50-200°C (120-390°F)	1500	6	57	13±4°C/55.4±39.2°F	220°C/428°F
8CB050300AO30001	50-300°C (120-570°F)	1500	3	165	15±5°C/59±41°F	320°C/608°F
