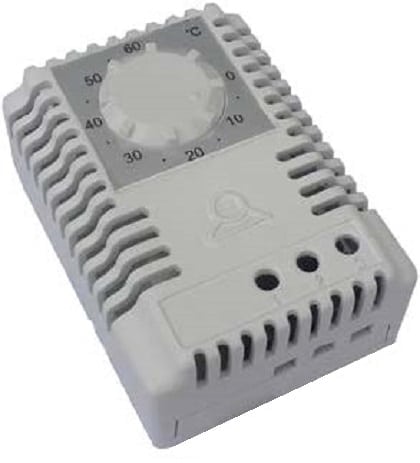

Miniature room temperature thermostats wall mounting, home appliance style
These models have been designed to control electrical equipment temperature. They are designed for wall mounting with 2 backside screws. Their SPDT contact allows their use to control a cabinet heater, a fan or a filter fan,or a cooling system.
Dimensions | 67 × 50 × 35 mm |
---|---|
Temperature adjustment range (°C) | |
Temperature adjustment range (°F) | |
Differential (°C) | |
Setting adjustment | |
Sensing element | |
Electrical life (cycles at rated value) | |
Electrical rating | |
Voltage | |
Contact resistance (mOhms) | |
Housing raw material | |
Color | |
Min operating temperature (°C) | |
Max operating temperature (°C) | |
Ingress protection |
Description
MAIN FEATURES
These models have been designed to control electrical equipment temperature. They are designed for wall mounting with 2 backside screws. Their SPDT contact allows their use to control a cabinet heater, a fan or a filter fan,or a cooling system.
Temperature ranges: -10+20°C (14+68°F) ; -10+50°C (14+122°F) ;0-60°C (32-140°F) ;5-35°C (41-95°F) ; 20+80°C (68-176°F)
Set point adjustment: knob
Sensing element: bimetal
Contact type: snap-action contact, open or close on temperature rise, 10(2)A 250VAC, 15(2)A 120VAC
Electrical life: > 100.000 cycles at rated values
Contact resistance: < 10mOhm
Electrical connection: 3 screw terminals, for 1.5 mm² wires
Mounting: Clip for 35mm DIN rail, EN50022
Casing: UL94 V0, PC-ABS, RAL 1010 light grey
Dimensions: 67 x 50 x 35 mm
Operating temperature range: -20 to +80°C (-4+176°F)
Ingress protection: IP30
MAIN REFERENCES
°C |
||
Temperature range (°C) | Differential (°C) | References |
-10+50°C | 4°C±2°C | Y02MAC-10050114M |
-10+20°C | 4°C±2°C | Y02MAC-10020114M |
+5+35°C | 4°C±2°C | Y02MAC005035114M |
0+60°C | 4°C±2°C | Y02MAC000060114M |
+20+80°C | 4°C±2°C | Y02MAC020080114M |
°F | ||
Temperature range (°F) | Differential (°F) | References |
15-120°F | 7±3°F | Y02MAC-10050114N |
15-70°F | 7±3°F | Y02MAC-10020114N |
40-95°F | 7±3°F | Y02MAC005035114N |
30-140°F | 7±3°F | Y02MAC000060114N |
70-180°F | 7±3°F | Y02MAC020080114N |
