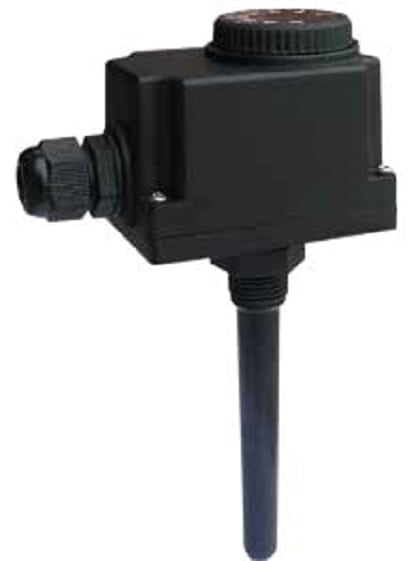

Set point adjustable rod thermostat, IP44

IP44 commercial housing with plastic pocket, for corrosive water and swimming pools.

Dimensions 77.5 × 54 × 53 mm
Ingress protection

Housing raw material

Temperature adjustment range (°C)

,

Temperature adjustment range (°F)

,

Sensing element

Rod length (mm)

Electrical rating

Voltage

Electrical life (cycles at rated value)

Differential (°C)

Max temperature on rod (°C)

This product is currently out of stock and unavailable.

Description

MAIN FEATURES

IP44 commercial housing with plastic pocket, for corrosive water and swimming pools.

Housing: IP44, 77,5 x 54 x 53mm, (Knob and cable gland not included), black PC-ABS, UL94V0. High impact and UV resistance. Stainless steel wall mounting plate, with 2 plastic lugs.
Electrical input: M16 cable gland.
Temperature Adjustment: With °C printed knob. °F printed knobs available in option
Sensing element: Liquid filled bulb, located inside a backside mounted PBT pocket.
Adjustment ranges: 4-40°C(40-105°F)
Rod length: 97 mm
Electrical connections: screw terminals and external ground terminal
Mounting: by the ½”NPT pocket fitting
Contact: SPDT
Electrical rating:
– Open on temperature rise contact (C-1) 16A(2.6) 250VAC
– Close on temperature rise contact (C-2) 6A(0.6) 250VAC
– Electrical life >100.000 cycles.
Cannot be used in 400VAC.



Main references

Downloads

TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.

Technical informations associated to this product

  • Thermostats installation

    The proper functioning of a thermostat depends primarily on the correct choice of the component, but also the conditions of its installation. Conditions used to calibrate regulating and control equipment in the factory are always ideal laboratory conditions, ensuring measurement accuracy and repeatability. These conditions are rarely those found in practice when installing thermostats. However, with a minimum of constraints, it is possible to optimize assemblies.
  • Description of temperature controls

    Used as control thermostats or as a safety thermostat with manual reset, these thermostats have a disc made of two different metals laminated together for temperature sensing element. These two metals have different expansion coefficients.
  • Electrical contacts

    As numerous mechanisms exist, we decided not to distinguish on the basis of constructive technique, but according to their operation speed, which is the key element.
  • Electrical protection classes

    The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.)
