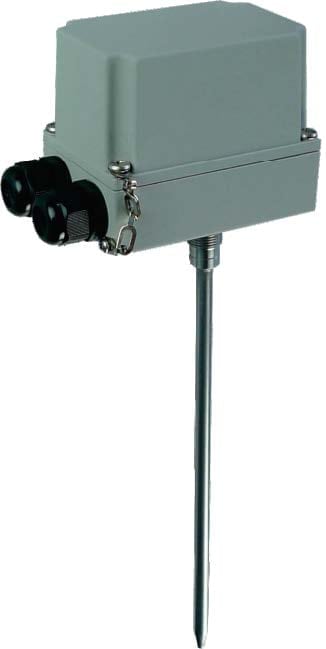

3 pole rod thermostat temperature control IP65

Applications

These liquid expansion rod thermostats can be installed inside pockets as immersion thermostats in pipelines and containers, and to control temperature in air ducts, in usual industrial application and environment, on 3 phase heating circuits (Not suitable for hazardous areas).

– Internal adjustment is convenient for products that must not be frequently adjusted.

– Insensibility to strong vibrations

Housing raw material

Color

Ingress protection

Mechanical protection

Contact style

Contact Material

Electrical rating

Voltage

,

Electrical life (cycles at rated value)

Measurement type

Sensing element

Rod length (mm)

Send an inquiry for this item
  • I agree that that the website retain and use my personal information to renew contact with me.
Insert a valid name
insert a valid mail
Insert message
Authorization needed to validate the form.

This product is currently out of stock and unavailable.

Description

Enclosure Type Operation Contact Measurement Ranges °C Models
IP65, IK10 Control Mechanical 3PNC rod Y1S8C

&   Y1R8C



Material



Aluminum

Applications

These liquid expansion rod thermostats can be installed inside pockets as immersion thermostats in pipelines and containers, and to control temperature in air ducts, in usual industrial application and environment, on 3 phase heating circuits (Not suitable for hazardous areas).

– Internal adjustment is convenient for products that must not be frequently adjusted.

– Insensibility to strong vibrations

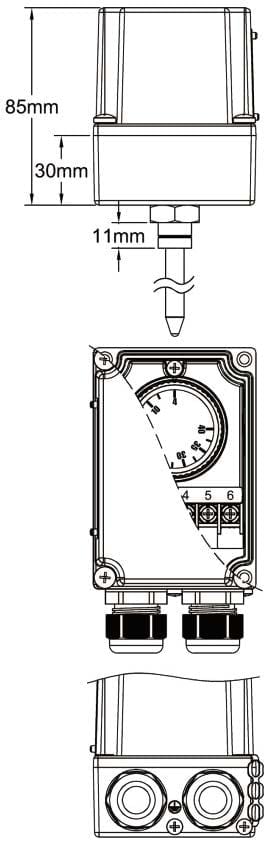

Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid.

Set point adjustment ranges: -35+35°C (-30+95°F); -10+40°C (15-105°F); 4-40°C (40-105°F); 0-60°C (32-140°F); 0-90°C (32-195°F); 30-90°C (85-195°F); 30-110°C (85-230°F); 50-200°C (120-390°F); 50-300°C (120-570°F); 100-400°C (210-750°F).

Set point adjustment: By °C printed knob. All types have an adjustable rotation limit system located inside the knob that allows reducing the set point adjustment span. Types with external adjustment have a transparent window. This device allows seeing the pilot light and   the knob position. °F values are available in option.

Action: Temperature control, On-Off action

Sensing element: Liquid expansion rod. This rod has a non-temperature sensing zone named dead zone which allows thermal  insulation crossing. An increased diameter under the thermostat head allows mounting pockets, coolers or brackets (See pockets in the accessories section)

Electrical connections: Inside, on screw terminal connection block

Earthing: External screw terminal.

Cable input and output: Two M20 cable gland, Black PA66.

Identification: Metallic identification label, riveted.

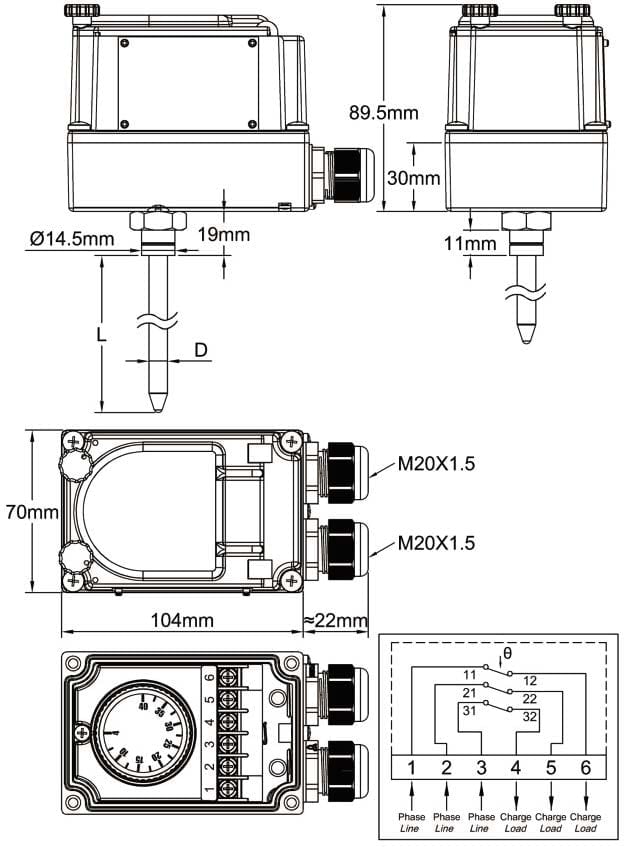

Contact: 3PST, open on temperature rise

Electrical rating, resistive loads:

16A 250V, 50 ~60Hz: >100000 cycles,

20A 250V, 50 ~60Hz: ≥ 50000 cycles,

10A 400V, 50 ~60Hz: ≥ 50000 cycles.

Minimum Storage temperature: -35°C (-30°F)

Maximum ambient temperature: 60°C (140°F)

For more technical information see 8C thermostat technical data sheet

*Above 200°C we recommend to use a rod cooler reference 66RF07015 or 66RF0701F12 between the rod and the enclosure (see accessories). Caution: This cooler reduces the usable rod length by 70mm
