Pipe mounting temperature control thermostat IP65
Applications
Pipes surface temperature control in usual industrial applications and environments, (No suitable for hazardous areas) Internal adjustment is convenient for products that must not be frequently adjusted.
Housing raw material | |
---|---|
Color | |
Ingress protection | |
Mechanical protection | |
Contact Material | |
Electrical rating | |
Voltage | |
Electrical life (cycles at rated value) | |
Measurement type | |
Sensing element |
Description
Enclosure | Type | Operation | Contact | Measurement | Ranges °C | Models |
IP65, IK10 | Control | Mechanical | SPDT | Pipe | ![]() |
Y118G
& Y108G |
Material |
![]() |
![]() |
![]() |
![]() |
||
Aluminum |
Applications
Pipes surface temperature control in usual industrial applications and environments, (No suitable for hazardous areas) Internal adjustment is convenient for products that must not be frequently adjusted.

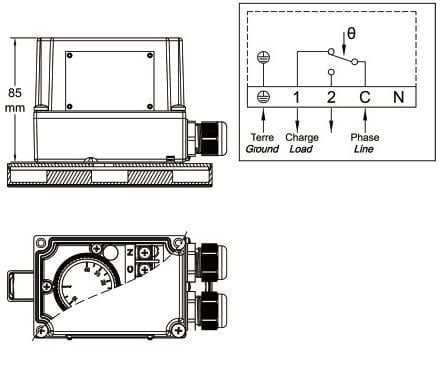

Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid. Set point adjustment ranges: 0-60°C (32-140°F); 0-90°C (32-195°F); 30-90°C (85-195°F); 30-110°C (85-230°F);
Set point adjustment: By °C printed knob. All types have an adjustable rotation limit system located inside the knob that allows reducing the set point adjustment span. Types with external adjustment have a transparent window. This device allows seeing the pilot light and the knob position. °F values are available as an option.
Action: Temperature control, On-Off action
Sensing element: Liquid expansion bulb inside aluminum bracket in contact with the pipe surface.

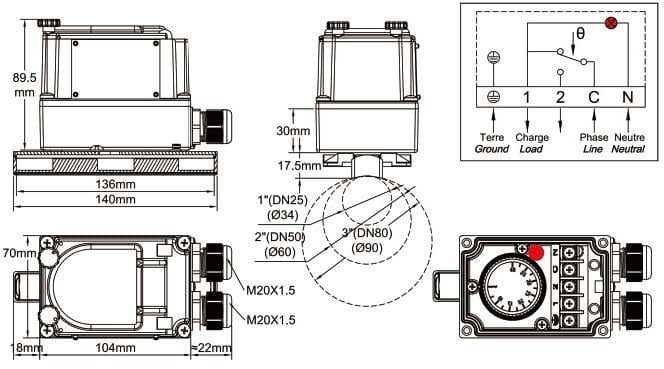

The bracket design provides optimized thermal contact with 34 mm (1 “, DN25), 60 mm (2″, DN50) and 90 mm (3”, DN80) outside diameter tubes. For intermediate sizes, we recommend the use of thermal grease
Electrical connections: Inside, on screw terminal connection block
Earthing: Internal and external screw terminal.
Pilot light: Allows to visualize thermostat contact output position. Standard for all models with transparent window. Non Standard and on special request only for models with plain aluminum cover
Cable input and output: Two M20 cable glands, Black PA66.
Mounting: The thermostat housing can be fixed on the pipe by worm drive hose clamps (DIN3017) , nylon cable ties (Tie wraps upon EN50146, for applications at permanent temperature lower than 85°C), or specific stainless steel punched band (see accessories at the end of this catalog)
Identification: Metallic identification label, riveted.
Contact: SPDT
Electrical rating, resistive loads:
-Open on temperature rise contact (C-1) 16A 250V, 50 ~60Hz: >100000 cycles,
20A 250V, 50 ~60Hz: ≥ 50000 cycles,
10A 400V, 50 ~60Hz: ≥ 50000 cycles.
-Close on temperature rise contact (C-2) (C-2): 6A 250V 50 ~60Hz: >100000 cycles
Electrical rating, inductive loads:
-Open on temperature rise contact (C-1): 6A 250V, 50 ~60Hz: >100000 cycles
-Close on temperature rise contact (C-2):0.6A 250V 50 ~60Hz: >100000 cycles
Minimum storage temperature: -35°C (-30°F)
Maximum ambient temperature: 60°C (140°F)
For more technical information ask 8G thermostat technical data sheet
Main references
Temperature adjustment ranges °C (°F) | Reference with external adjustment | Reference with internal adjustment | Differential°C (°F) | Max. temperature on tube°C (°F) |
0-60°C (32-140°F) | Y118G000060AA80J | Y108G000060AA80J | 2.5±1°C (4,5±1,8°F) | 80°C (176°F) |
0-90°C (32-195°F) | Y118G000090AA80J | Y108G000090AA80J | 4±3°C (7±5.5°F) | 120°C (250°F) |
30-90°C (85-195°F) | Y118G030090AA80J | Y108G030090AA80J | 4±3°C (7±5.5°F) | 120°C (250°F) |
30-110°C (85-230°F) | Y118G030110AA80J | Y108G030110AA80J | 5±3°C (9±5.5°F) | 150°C (300°F) |
Downloadable
Datasheet
