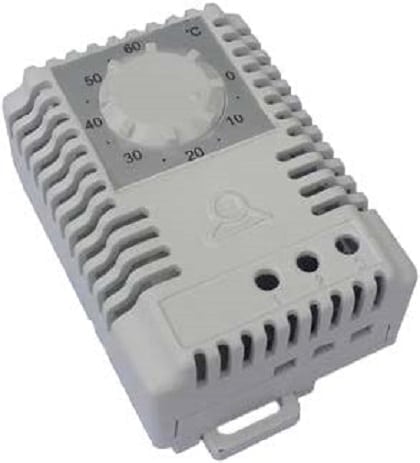

Electrical cabinet ambient temperature thermostats, Din Rail mounting
These models have been designed to control the temperature inside electrical cabinets, being mounted on their DIN rail. Their SPDT contact allows their use to control a cabinet heater, a fan or a filter fan, or a cooling system.
Dimensions | 67 × 50 × 35 mm |
---|---|
Temperature adjustment range (°C) | |
Temperature adjustment range (°F) | |
Differential (°C) | |
Setting adjustment | |
Sensing element | |
Electrical life (cycles at rated value) | |
Electrical rating | |
Voltage | |
Contact resistance (mOhms) | |
Housing raw material | |
Color | |
Min operating temperature (°C) | |
Max operating temperature (°C) | |
Ingress protection |
Description
MAIN FEATURES
These models have been designed to control the temperature inside electrical cabinets, being mounted on their DIN rail. Their SPDT contact allows their use to control a cabinet heater, a fan or a filter fan, or a cooling system.
Temperature ranges: -10+20°C (14+68°F) ; -10+50°C (14+122°F) ;0-60°C (32-140°F) ;5-35°C (41-95°F) ; 20+80°C (68-176°F)
Set point adjustment: knob
Sensing element: bimetal
Contact type: snap-action contact, open or close on temperature rise, 10(2)A 250VAC, 15(2)A 120VAC
Electrical life: > 100.000 cycles at rated values
Contact resistance: < 10mOhm
Electrical connection: 3 screw terminals, for 1.5 mm² wires
Mounting: Clip for 35mm DIN rail, EN50022
Casing: UL94 V0, PC-ABS, RAL 1010 light grey

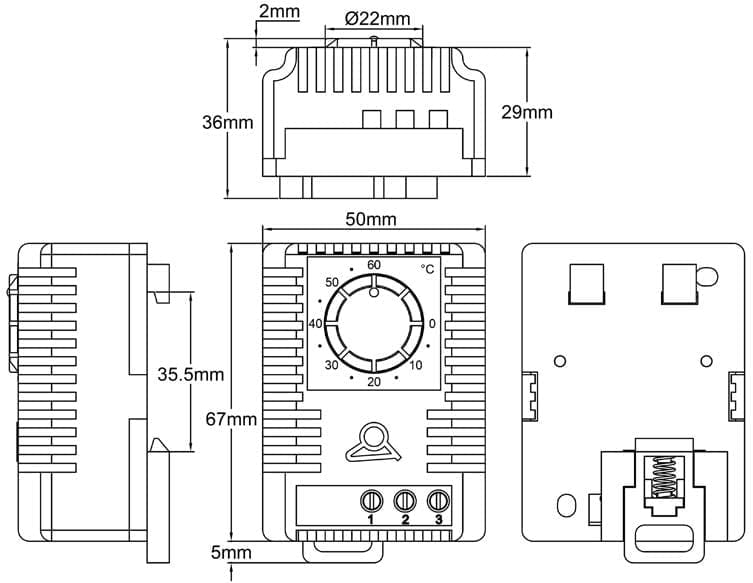

Dimensions: 67 x 50 x 35 mm
Operating temperature range: -20 to +80°C (-4+176°F)
Ingress protection: IP30
MAIN REFERENCES
°C |
||
Temperature range (°C) | Differential (°C) | References |
-10+50°C | 4°C±2°C | Y02NAC-10050114L |
-10+20°C | 4°C±2°C | Y02NAC-10020114L |
+5+35°C | 4°C±2°C | Y02NAC005035114L |
0+60°C | 4°C±2°C | Y02NAC000060114L |
+20+80°C | 4°C±2°C | Y02NAC020080114L |
°F | ||
Temperature range (°F) | Differential (°F) | References |
15-120°F | 7±3°F | Y02NAC-10050114P |
15-70°F | 7±3°F | Y02NAC-10020114P |
40-95°F | 7±3°F | Y02NAC005035114P |
30-140°F | 7±3°F | Y02NAC000060114P |
70-180°F | 7±3°F | Y02NAC020080114P |
