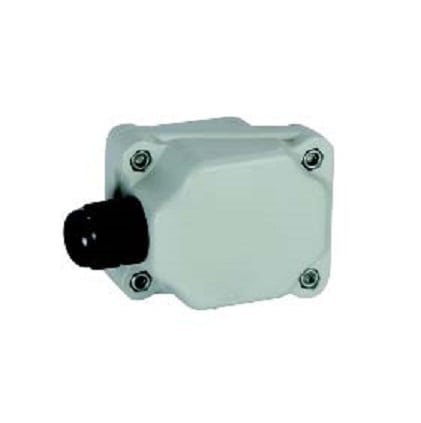

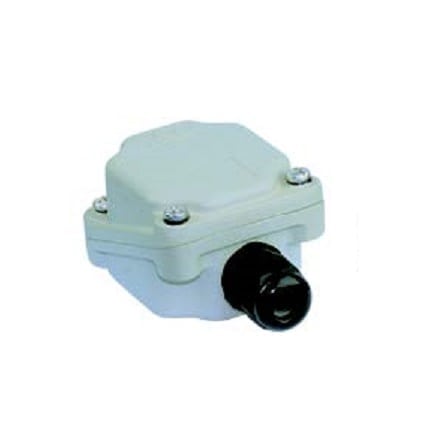

Miniature enclosure for immersion heater, level sensor or temperature sensor, Y303
– Can receive a drill on the back side for immersion heater fitting up to 1″1/2 (double threaded model, only with case tapping)
– Can receive a drill on the back side for temperature sensor or level sensor
– Output by M20 cable gland
Dimensions | 78 × 66 × 50 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |

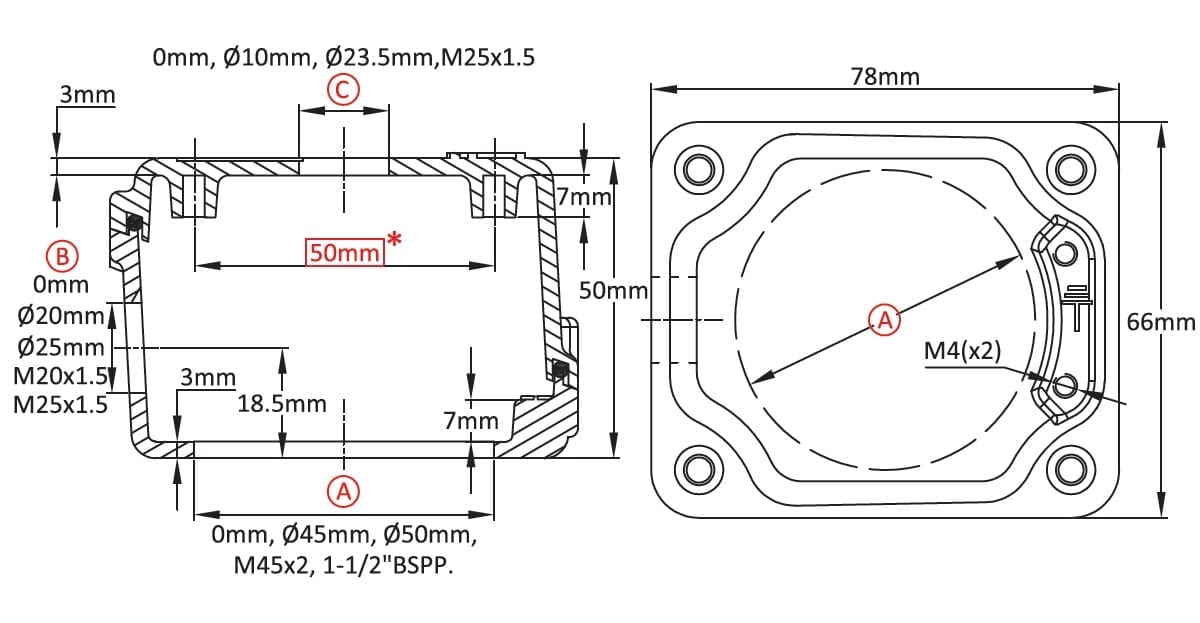

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
Miniature enclosure for immersion heater, level sensor or temperature sensor
– Can receive a drill on the back side for immersion heater fitting up to 1″1/2 (double threaded model, only with case tapping)
– Can receive a drill on the back side for temperature sensor or level sensor
– Output by M20 cable gland
Size: 78 x 66 x 50 mm
Volume: 210 cm³
Material: Aluminium
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | Not painted | Painted |
0 | 0 | 0 | Y303000000000007 | Y30300000000000G |
0 | 0 | 10 | Y303000A00000007 | Y303000A0000000G |
0 | 0 | 23.5 | Y303000D00000007 | Y303000D0000000G |
0 | 0 | M25×1.5 | Y303000F00000007 | Y303000F0000000G |
0 | 20 | 0 | Y303000012000007 | Y30300001200000G |
0 | 20 | 10 | Y303000A12000007 | Y303000A1200000G |
0 | 20 | 23.5 | Y303000D12000007 | Y303000D1200000G |
0 | 20 | M25×1.5 | Y303000F12000007 | Y303000F1200000G |
0 | 25 | 0 | Y303000012500007 | Y30300001250000G |
0 | 25 | 10 | Y303000A12500007 | Y303000A1250000G |
0 | 25 | 23.5 | Y303000D12500007 | Y303000D1250000G |
0 | 25 | M25×1.5 | Y303000F12500007 | Y303000F1250000G |
0 | M20×1.5 | 0 | Y30300001T000007 | Y30300001T00000G |
0 | M20×1.5 | 10 | Y303000A1T000007 | Y303000A1T00000G |
0 | M20×1.5 | 23.5 | Y303000D1T000007 | Y303000D1T00000G |
0 | M20×1.5 | M25×1.5 | Y303000F1T000007 | Y303000F1T00000G |
0 | M25×1.5 | 0 | Y30300001T500007 | Y30300001T50000G |
0 | M25×1.5 | 10 | Y303000A1T500007 | Y303000A1T50000G |
0 | M25×1.5 | 23.5 | Y303000D1T500007 | Y303000D1T50000G |
0 | M25×1.5 | M25×1.5 | Y303000F1T500007 | Y303000F1T50000G |
45 | 0 | 0 | Y303450000000007 | Y30345000000000G |
45 | 0 | 10 | Y303450A00000007 | Y303450A0000000G |
45 | 0 | 23.5 | Y303450D00000007 | Y303450D0000000G |
45 | 0 | M25×1.5 | Y303450F00000007 | Y303450F0000000G |
45 | 20 | 0 | Y303450012000007 | Y30345001200000G |
45 | 20 | 10 | Y303450A12000007 | Y303450A1200000G |
45 | 20 | 23.5 | Y303450D12000007 | Y303450D1200000G |
45 | 20 | M25×1.5 | Y303450F12000007 | Y303450F1200000G |
45 | 25 | 0 | Y303450012500007 | Y30345001250000G |
45 | 25 | 10 | Y303450A12500007 | Y303450A1250000G |
45 | 25 | 23.5 | Y303450D12500007 | Y303450D1250000G |
45 | 25 | M25×1.5 | Y303450F12500007 | Y303450F1250000G |
45 | M20×1.5 | 0 | Y30345001T000007 | Y30345001T00000G |
45 | M20×1.5 | 10 | Y303450A1T000007 | Y303450A1T00000G |
45 | M20×1.5 | 23.5 | Y303450D1T000007 | Y303450D1T00000G |
45 | M20×1.5 | M25×1.5 | Y303450F1T000007 | Y303450F1T00000G |
45 | M25×1.5 | 0 | Y30345001T500007 | Y30345001T50000G |
45 | M25×1.5 | 10 | Y303450A1T500007 | Y303450A1T50000G |
45 | M25×1.5 | 23.5 | Y303450D1T500007 | Y303450D1T50000G |
45 | M25×1.5 | M25×1.5 | Y303450F1T500007 | Y303450F1T50000G |
50 | 0 | 0 | Y303500000000007 | Y30350000000000G |
50 | 0 | 10 | Y303500A00000007 | Y303500A0000000G |
50 | 0 | 23.5 | Y303500D00000007 | Y303500D0000000G |
50 | 0 | M25×1.5 | Y303500F00000007 | Y303500F0000000G |
50 | 20 | 0 | Y303500012000007 | Y30350001200000G |
50 | 20 | 10 | Y303500A12000007 | Y303500A1200000G |
50 | 20 | 23.5 | Y303500D12000007 | Y303500D1200000G |
50 | 20 | M25×1.5 | Y303500F12000007 | Y303500F1200000G |
50 | 25 | 0 | Y303500012500007 | Y30350001250000G |
50 | 25 | 10 | Y303500A12500007 | Y303500A1250000G |
50 | 25 | 23.5 | Y303500D12500007 | Y303500D1250000G |
50 | 25 | M25×1.5 | Y303500F12500007 | Y303500F1250000G |
50 | M20×1.5 | 0 | Y30350001T000007 | Y30350001T00000G |
50 | M20×1.5 | 10 | Y303500A1T000007 | Y303500A1T00000G |
50 | M20×1.5 | 23.5 | Y303500D1T000007 | Y303500D1T00000G |
50 | M20×1.5 | M25×1.5 | Y303500F1T000007 | Y303500F1T00000G |
50 | M25×1.5 | 0 | Y30350001T500007 | Y30350001T50000G |
50 | M25×1.5 | 10 | Y303500A1T500007 | Y303500A1T50000G |
50 | M25×1.5 | 23.5 | Y303500D1T500007 | Y303500D1T50000G |
50 | M25×1.5 | M25×1.5 | Y303500F1T500007 | Y303500F1T50000G |
M45×2 | 0 | 0 | Y303M45000000007 | Y303M4500000000G |
M45×2 | 0 | 10 | Y303M45A00000007 | Y303M45A0000000G |
M45×2 | 0 | 23.5 | Y303M45D00000007 | Y303M45D0000000G |
M45×2 | 0 | M25×1.5 | Y303M45F00000007 | Y303M45F0000000G |
M45×2 | 20 | 0 | Y303M45012000007 | Y303M4501200000G |
M45×2 | 20 | 10 | Y303M45A12000007 | Y303M45A1200000G |
M45×2 | 20 | 23.5 | Y303M45D12000007 | Y303M45D1200000G |
M45×2 | 20 | M25×1.5 | Y303M45F12000007 | Y303M45F1200000G |
M45×2 | 25 | 0 | Y303M45012500007 | Y303M4501250000G |
M45×2 | 25 | 10 | Y303M45A12500007 | Y303M45A1250000G |
M45×2 | 25 | 23.5 | Y303M45D12500007 | Y303M45D1250000G |
M45×2 | 25 | M25×1.5 | Y303M45F12500007 | Y303M45F1250000G |
M45×2 | M20×1.5 | 0 | Y303M4501T000007 | Y303M4501T00000G |
M45×2 | M20×1.5 | 10 | Y303M45A1T000007 | Y303M45A1T00000G |
M45×2 | M20×1.5 | 23.5 | Y303M45D1T000007 | Y303M45D1T00000G |
M45×2 | M20×1.5 | M25×1.5 | Y303M45F1T000007 | Y303M45F1T00000G |
M45×2 | M25×1.5 | 0 | Y303M4501T500007 | Y303M4501T50000G |
M45×2 | M25×1.5 | 10 | Y303M45A1T500007 | Y303M45A1T50000G |
M45×2 | M25×1.5 | 23.5 | Y303M45D1T500007 | Y303M45D1T50000G |
M45×2 | M25×1.5 | M25×1.5 | Y303M45F1T500007 | Y303M45F1T50000G |
1½” BSPP | 0 | 0 | Y303BA2000000007 | Y303BA200000000G |
1½” BSPP | 0 | 10 | Y303BA2A00000007 | Y303BA2A0000000G |
1½” BSPP | 0 | 23.5 | Y303BA2D00000007 | Y303BA2D0000000G |
1½” BSPP | 0 | M25×1.5 | Y303BA2F00000007 | Y303BA2F0000000G |
1½” BSPP | 20 | 0 | Y303BA2012000007 | Y303BA201200000G |
1½” BSPP | 20 | 10 | Y303BA2A12000007 | Y303BA2A1200000G |
1½” BSPP | 20 | 23.5 | Y303BA2D12000007 | Y303BA2D1200000G |
1½” BSPP | 20 | M25×1.5 | Y303BA2F12000007 | Y303BA2F1200000G |
1½” BSPP | 25 | 0 | Y303BA2012500007 | Y303BA201250000G |
1½” BSPP | 25 | 10 | Y303BA2A12500007 | Y303BA2A1250000G |
1½” BSPP | 25 | 23.5 | Y303BA2D12500007 | Y303BA2D1250000G |
1½” BSPP | 25 | M25×1.5 | Y303BA2F12500007 | Y303BA2F1250000G |
1½” BSPP | M20×1.5 | 0 | Y303BA201T000007 | Y303BA201T00000G |
1½” BSPP | M20×1.5 | 10 | Y303BA2A1T000007 | Y303BA2A1T00000G |
1½” BSPP | M20×1.5 | 23.5 | Y303BA2D1T000007 | Y303BA2D1T00000G |
1½” BSPP | M20×1.5 | M25×1.5 | Y303BA2F1T000007 | Y303BA2F1T00000G |
1½” BSPP | M25×1.5 | 0 | Y303BA201T500007 | Y303BA201T50000G |
1½” BSPP | M25×1.5 | 10 | Y303BA2A1T500007 | Y303BA2A1T50000G |
1½” BSPP | M25×1.5 | 23.5 | Y303BA2D1T500007 | Y303BA2D1T50000G |
1½” BSPP | M25×1.5 | M25×1.5 | Y303BA2F1T500007 | Y303BA2F1T50000G |
Cable gland not included in these reference, consult us if you want them.
