Air buttons

Use: Remote operation of air switches. This pneumatic switching technology safely isolates the user from the electrical current. The air transmitters provide the pulse air pressure needed to operate a remote air switch

Typical applications: Spas , swimming pools, electrical equipment remote operating of electrical devices on/off including motors, lights, pumps, air blowers, or other associated equipment.

Air volume (cm³)

Max ambient humidity (%RH)

Color

, ,

Minimum setting (%RH)

Send an inquiry for this item
  • I agree that that the website retain and use my personal information to renew contact with me.
Insert a valid name
insert a valid mail
Insert message
Authorization needed to validate the form.

Description

Use: Remote operation of air switches. This pneumatic switching technology safely isolates the user from the electrical current. The air transmitters provide the pulse air pressure needed to operate a remote air switch

Typical applications: Spas , swimming pools, electrical equipment remote operating of electrical devices on/off including motors, lights, pumps, air blowers, or other associated equipment.

Operating distance: With appropriate tubing, these hand actuation transmitters can operate air switches from distances of up to 30 meters (100 feet.)

Air volume:  11 cm3

Button and bezels: ABS, Ozone and UV resistant, low profile dome design, interchangeable.

Standard Color: Black, White (Bone) and nickel plated. Any other color and finish can be made with MOQ (consult factory).

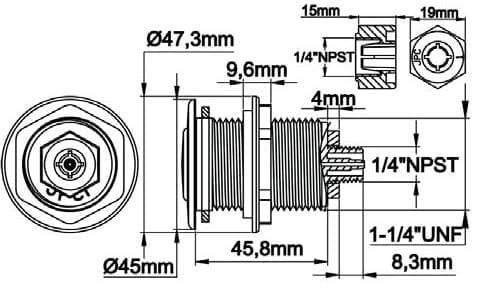

Mounting: Through tub wall, with 1”1/4-12 UNF nut and flat NBR gasket.

Mounting hole: Drill a dia. 32+1/-0 mm (1”1/4) hole. The 1”1/4 nut is staggered to allow using this button for replacement into preexisting dia. 37.3+/-1 mm holes.

Wall thickness: From2 mm to 45 mm (1/16” to 1-5/8”).

Cylinder  material:  ABS; ozone and UV resistant.

Gasket: NBR.

Nut: ABS.

Bellow: EPDM, impervious to ozone and chemically treated swimming pool and spa water. No micro leak to avoid pumping action with air switches. Stainless steel spring.

 Tube connection: Spout for 3 mm or 1.7 mm (1/8” or 1/16” I.D) flexible PVC or rubber tubing. We recommend tube securing nut to avoid accidental tubing disconnection.

Mechanical  life:  > 100.000 cycles.

Ambient  temperature: -20+85°C

Spare parts: Cylinder assembly, button and bezel  kit are available separately.

Options: Custom buttons with logo.



References

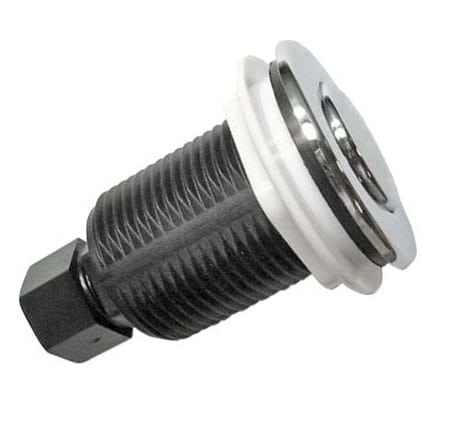

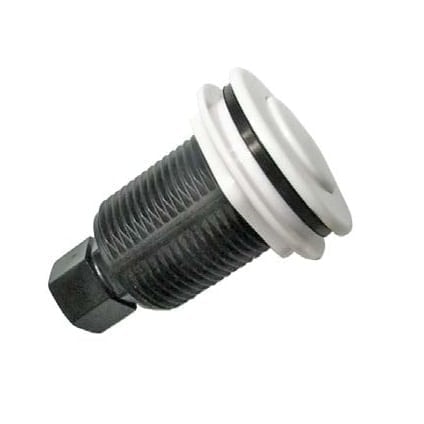

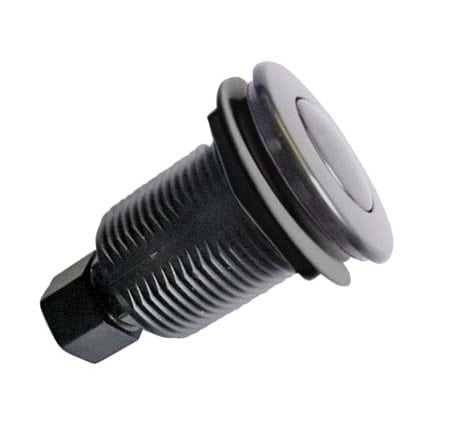

Model Black (RAL9005) Nicked plated White (RAL9003)
With tube securing nut 66ZM500060510000 66ZM500060710000 66ZM500060410000
Without tube securing nut 66ZM500060500000 66ZM500060700000 66ZM500060400000
