Waterproof flat disc thermostat
Waterproof thermostat, can be incorporated inside thin heating devices, heating blankets, heating pads, antifreeze cables, electrical floor heating

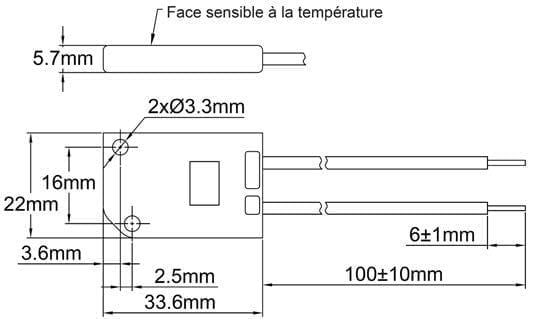

Dimensions | 36.6 × 22 × 5.7 mm |
---|---|
Electrical rating | |
Opening temperature (°C) | |
Closing temperature (°C) | |
Wire lengths (mm) |
Description
TECHNICAL FEATURES
Application: Waterproof thermostat, can be incorporated inside thin heating devices, heating blankets, heating pads, antifreeze cables, electrical floor heating
Electrical rating: 8A,125VAC res 4A, 250VAC res
Temperature calibration range: 0 to 120°C (32 to 248°F)
Contact: open or close on temperature rise
Differential: 8-15°C (46.4-59°F)
Tolerance: ±5°C on open and close
Contact resistance: < 70 mΩ (wires and optional TCO not included)
Insulation resistance: ≥ 100MΩ @500VDC
Thermal resistance: -20°C +130°C (except optional thermal fuse and wires)
Electrical life: ≥10.000 cycles under rated load
Wires: PVC insulated, 0.5 mm² (0.75 mm² on request), length 100, 200, 500, 1000 mm
Option: built-in thermal fuse, 2A, 5A or 8A.
Thermal fuse calibration must be at least 30°C higher than thermostat opening temperature (MOQ apply)
Main references
References | Open °C (°F) | Close °C (°F) | Wire lengths (mm) |
4N630101308JGCD0 | 13°C ±5°C (55.4 ±41°F) | 6°C±5°C (42.8±41°F) | 200 |
4N630103008JGCD0 | 30°C±5°C (86 ±41°F) | 22°C±5°C (71.6±41°F) | 200 |
4N630104008JGC10 | 40°C±5°C (104±41°F) | 32°C±5°C (89.6±41°F) | 1000 |
4N630105008JGC10 | 50°C±5°C (122±41°F) | 42°C±5°C (107.6±41°F) | 1000 |
