SPDT Bimetal rod thermostats
Water and liquid temperature control, circulation heaters, hydraulic circuits oil temperature etc…
Temperature adjustment range (°C) | |
---|---|
Rod length (mm) | |
Differential (°C) | |
Max temperature on rod (°C) | |
Max operating temperature (°C) | |
Electrical rating |
Description

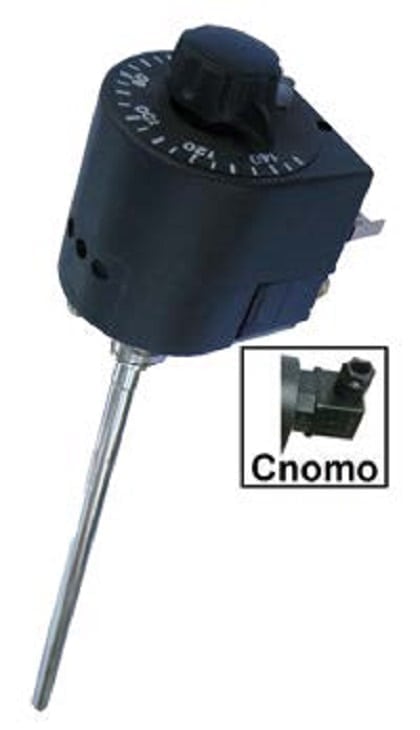

TECHNICAL FEATURES
Applications: water and liquid temperature control, circulation heaters, hydraulic circuits oil temperature etc…
Temperature ranges: 0-50°C (32-122°F), 10-60 °C (50-140°F), 30-90°C (86-194°F), 0-100°C (32-212°F), 40-140°C (104-284°F),
0-150°C (32-302°F)

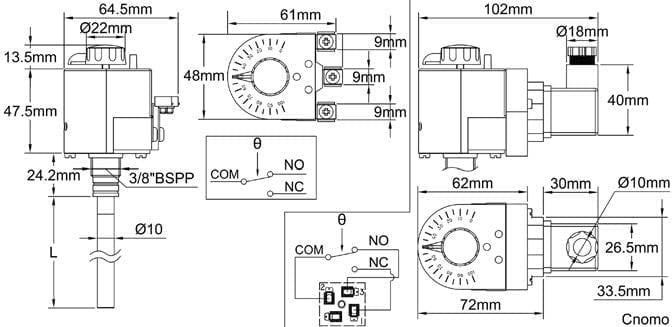

Housing dimensions: 65 x48 x 48 mm (knob not included)
Material: PA66 housing, and Aisi 304 stainless steel rod
Temperature sensing element: Invar/stainless steel bimetal rod, temperature sensing on full rod length
Electrical connections: screw terminals
Mounting:
- For liquid temperature sensing: inside pocket with internal diameter > 10 mm , or directly on 3/8”BSPP thread under the head, or with 3/8 x1/2” fitting (see accessories)
- For air temperature sensing measurement: with stainless steel bracket
Rating: 16(4)A 250/400VAC, 300.000 cycles. Reduced differential model is not recommended for 400V applications.
Contacts: SPDT, snap action
Max ambient temperature on the head: 85°C (185°F)
Options:
- 3 fixed setting staggered contacts for hydraulic power units : ask for specific data sheet (Type S3F)
- Cnomo electrical connector
- Thermovelocimetric version (detects only fast temperature change, used in fire detection and dry run protection). Type: VV, specific data sheet on request)
- Other temperature
- IP65 aluminum housing: See catalogue N°2
Accessories: BSPT1/2 stainless steel pocket, fittings, brackets , see description and references at the end of this catalogue
Approvals: comply with EN 60730-1 and EN 60730-2 standards
Main references
Temperature range
°C (°F) |
Rod length (mm) | Reference with standard differential* | Differential value
°C (°F) |
Reference with reduced differential* | Differential value
°C (°F) |
Max. temperature on rod °C (°F) |
0-50°C (32-122°F) | 450 | SRA00005000450 | 3±1.5°C (5.4±2.7°F) | SUA00005000450 | 1.5±1°C (2.7±1.8°F) | 70°C (158°F) |
10-60 °C (50-140°F) | 450 | SRA01006000450 | 3±1.5°C (5.4±2.7°F) | SUA01006000450 | 1.5±1°C (2.7±1.8°F) | 80°C (176°F) |
30-90°C (86-194°F) | 380 | SRA03009000380 | 4±2°C (7.2±3.6°F) | SUA03009000380 | 2±1°C (3.6±1.8°F) | 110°C (230°F) |
0-100°C (32-212°F) | 230 | SRA00010000230 | 6±3°C (10.8±5.4°F) | SUA00010000230 | 3±1.5°C (5.4±2.7°F) | 130°C (266°F) |
40-140°C (104-284°F) | 230 | SRA04014000230 | 6±3°C (10.8±5.4°F) | SUA04014000230 | 3±1.5°C (5.4±2.7°F) | 170°C (338°F) |
0-150°C (32-302°F) | 170 | SRA00015000170 | 8±4°C (14.4±7.2°F) | SUA00015000170 | 4±2°C (7.2±3.6°F) | 180°C (356°F) |
