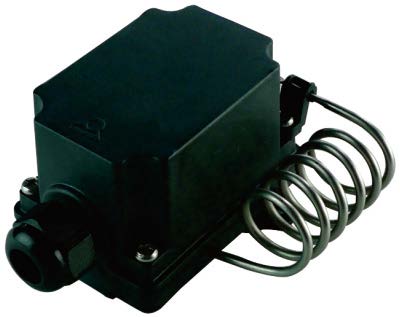

Pigtail bulb room thermostat IP44
IP44, black PC-ABS, fiber glass reinforced, UL94V0. High impact and UV resistance. 2 removable wall mounting lugs.
Housing raw material | |
---|---|
Color | |
Ingress protection | |
Contact Material | |
Electrical rating | |
Voltage | |
Electrical life (cycles at rated value) | |
Measurement type | |
Sensing element | |
Temperature adjustment range (°C) | |
Differential (°C) | |
Setting adjustment |
Description
Enclosure | Type | Operation | Contact | Measurement | Ranges °C | Models |
IP44 | Control | Mechanical | SPDT | Ambient | ![]() |
Y035
& Y036 |
Material |
![]() |
![]() |
![]() |
![]() |
||
PC-ABS |
Housing: IP44, black PC-ABS, fiber glass reinforced, UL94V0. High impact and UV resistance. 2 removable wall mounting lugs.
Cable input: One M20 cable gland.
Set point adjustment: By °C printed knob for external adjustment models, by screw driver and printed dial on internal adjustment models. °F values available as an option.
Sensing element: Liquid filled bulb, coiled on the side of enclosure.
Adjustment range: 4-40°C (40-105°F)
Electrical connections: 3 screw terminal connection block

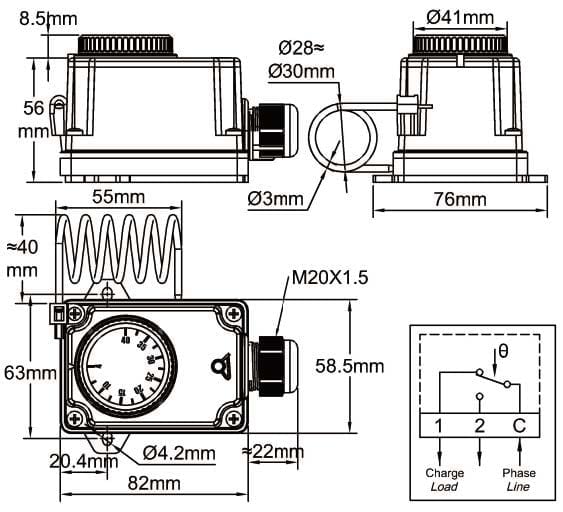

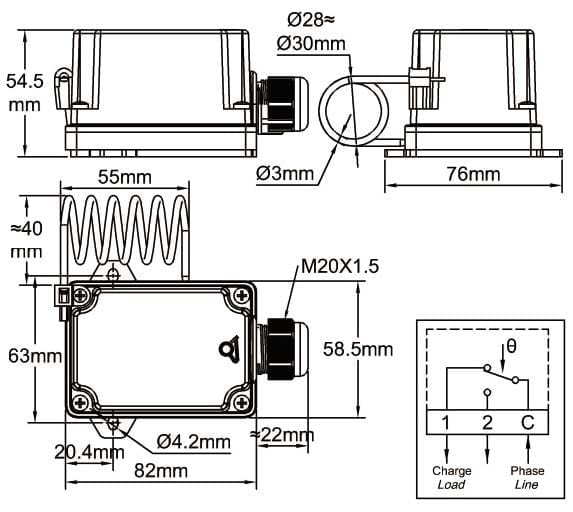

Mounting: Wall mounting, by two side lugs with holes for dia. 4 mm screws, 63 mm distance.
Contact: SPDT
Electrical rating, resistive loads:
-Open on temperature rise contact (C-1) 16A 250V, 50 ~60Hz: >100000 cycles,
20A 250V, 50 ~60Hz: ≥ 50000 cycles,
10A 400V, 50 ~60Hz: ≥ 50000 cycles.
-Close on temperature rise contact (C-2) (C-2): 6A 250V 50 ~60Hz: >100000 cycles
Electrical rating, inductive loads:
-Open on temperature rise contact (C-1): 6A 250V, 50 ~60Hz: >100000 cycles
-Close on temperature rise contact (C-2):0.6A 250V 50 ~60Hz: >100000 cycles.
Minimum storage temperature: -35°C (-30°F)
Maximum ambient temperature: 60°C (140°F)
For more technical information ask 8G thermostat technical data sheet.
Main references
Temperature ranges °C (°F) |
Internal |
External adjustment | Differential°C (°F) | Max temperature on bulb °C (°F) |
4-40 (40-105) | Y035GB004040QB3J | Y036GB004040QB3J | 1±0.5°C (1,8±1°F) | 60 (140) |
