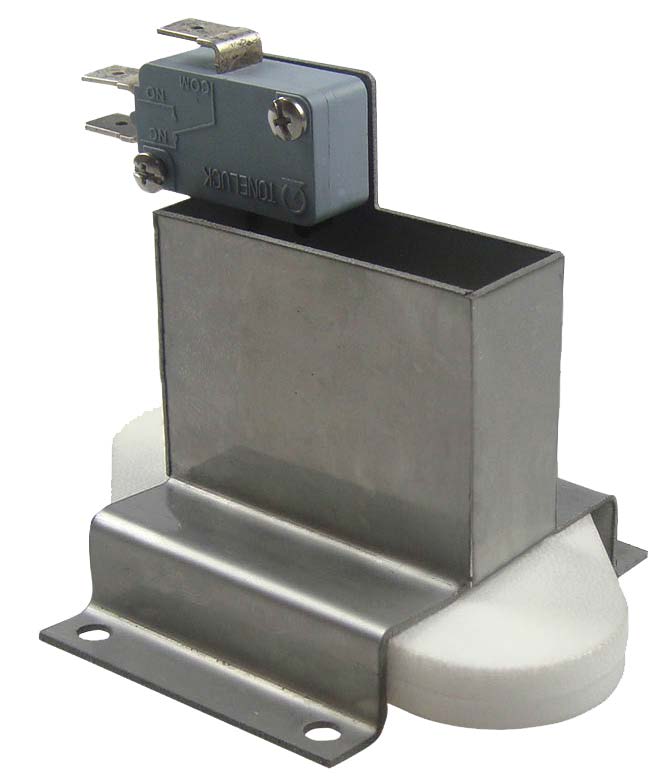

Bottom mounting, micro switch contact, EPS foam float, Appliances flooding detection

Main applications: overflow, leaks or flooding detection on electrical appliances, washing machines, electrical equipment and cabinets protection

Float material

Mounting position

Contact style
Electrical rating

Voltage

Contact resistance (mOhms)

Electrical connection type

Max operating temperature (°C)

Min operating temperature (°C)

Maximum pressure

SKU: DWSM34253A1A6300 Categories: ,

Description

Use: 250 VAC circuits

Main applications: overflow, leaks or flooding detection on electrical appliances, washing machines, electrical equipment and cabinets protection

Float material: EPS foam

Frame material: stainless steel

Mounting: Mounting on the bottom side of the device. Detection will occur when the liquid level is greater than 8 mm. It is therefore necessary that this bottom is shaped in a bowl form admitting at least 8mm of water level before the water can flow out.The micro-switch must be protected against falling water and must stay away from water level Contact configuration: SPDT snap action micro-switch Rating: 1/4HP, 6(1) A 240V ( UL, CSA VDE switch)

Contact resistance: 50mOhms maxi

Electrical connection: three 6.35 x 0.8 mm quick connect terminals (to be incorporated inside appropriate ingress protected equipment)

Liquid limits: to be used with clean liquids chemically compatible with polystyrene and stainless steel, specific gravity higher than 0.9, dynamic viscosity higher than 0.5×10-4 Pa.s and lower than 10-2 Pa.s.

Ambient temperature: 0+65°C

Maximum pressure:  atmospheric

Dimensions

We regularly, under non disclosure agreement, study and product components that meet the specifications of manufacturers of electrical equipment. If agreed contractually at the origin, the products are reserved for use only by the customer.Our foam floats are made in our factory using our own patented technology and are without equivalent.



Technical specifications sheet

TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.
