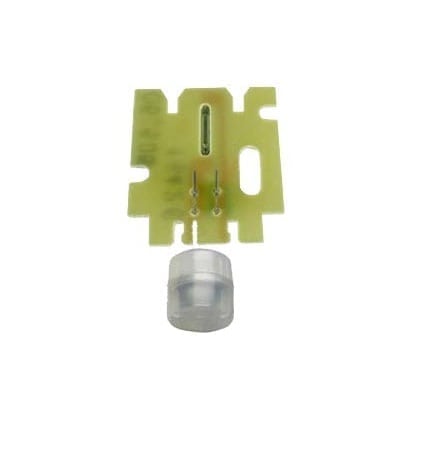

Vertical mounting, reed switch contact, split float and circuit, hollow PP float, Detection through the tank wall

Main applications: steam generators, coffee machines, vending machines, air conditioning pumps, dehumidifiers, tanks. The through the tank wall detection avoid holes and improve the temperature resistance. Cannot be used with magnetic tank walls. Large volume applications only

Float material

Mounting position

Contact style
Electrical rating

,

Contact resistance (mOhms)

Electrical connection type

,

Max operating temperature (°C)

Min operating temperature (°C)

Maximum pressure

This product is currently out of stock and unavailable.

Description

Use: low voltage circuits

Main applications: steam generators, coffee machines, vending machines, air conditioning pumps, dehumidifiers, tanks. The through the tank wall detection avoid holes and improve the temperature resistance. Cannot be used with magnetic tank walls. Large volume applications only

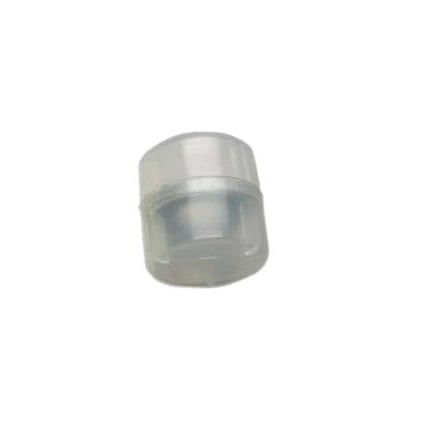

Float material: hollow polypropylene

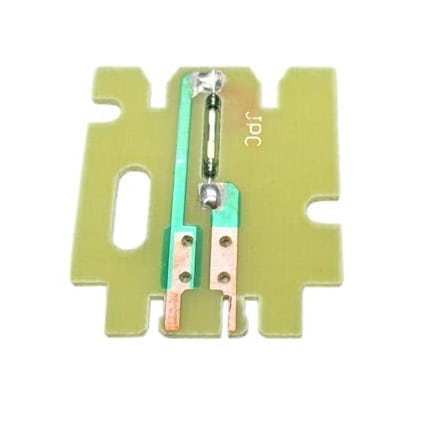

Mounting: vertical, special mounting bracket to be provided in equipment for printed circuit board ,and special slide the float must be made inside the tank

Contact configuration: The reed switch opens when it is inside the magnet field, and close when not influenced by this field. Installation must be made in accordance.

Electrical rating:

Low voltage type: maximum power 10 W (VA), max 0.4Amp,

max voltage 110VAC.

230VAC type: max power 10 W (VA), max 0.5Amp . Values for

resistive circuit. For inductive or capacitive loads, a contact protection circuit must be used.

Contact resistance: 150mOhms maxi

Electrical connection:

  • Fast on terminals type: two 6.35 x 5 quick connect termi- nals
  • Connector type: two terminals for connector Tyco  Duoplug 2.5

side locking, 4 ways, reference 0-284865-4 (to be incorporat- ed inside appropriate ingress protected equipment)

Liquid limits: to be used with liquids chemically compatible with polypropylene, specific gravity higher than 0.9, dynamic viscosity higher than 0.5×10-4 Pa.s and lower than 10-2 Pa.s, without magnetic particles.

Ambient temperature:  0+95°C

Maximum pressure:  1 bar (15 PSI)

Dimensions



Main references

Electrical Rating Fast on terminals Connector
10W (max 110VAC) DMR8F153516000A1 DMR8F153516000AT
10W (max 230VAC) DMR3F153516000A1 DMR3F153516000AT



We regularly, under non disclosure agreement, study and product components that meet the specifications of manufacturers of electrical equipment. If agreed contractually at the origin, the products are reserved for use only by the customer.Our foam floats are made in our factory using our own patented technology and are without equivalent.

Technical specifications sheet

TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.
