Vertical mounting, reed switch contact, polypropylene stem, dia. 20 x16.4 mm EPS foam float, cable output, side mounting bracket

Vertical mounting, reed switch contact, polypropylene stem with side mounting bracket, dia. 29 x16.4 mm EPS foam float, cable output, for near bottom detection

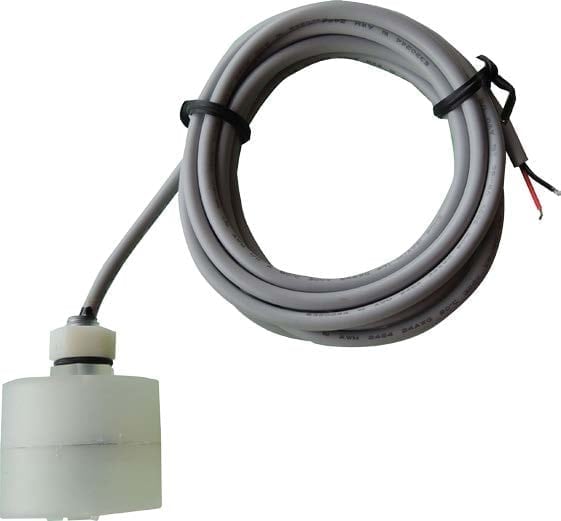

Vertical mounting, reed switch contact, polypropylene stem with M8 thread, dia. 25×15 mm hollow polypropylene float, cable output, Dia 34mm slosh shield
Main applications: liquids with waves or turbulences, spas, swimming pools. The slosh shield with small orifices reduces the oscillating level changes.
Stem material | |
---|---|
Float material | |
Mounting position | |
Mounting type | |
Electrical rating | |
Contact resistance (mOhms) | |
Wire lengths (mm) | |
Max operating temperature (°C) | |
Min operating temperature (°C) | |
Maximum pressure |
Description
Use: low voltage circuits
Main applications: liquids with waves or turbulences, spas, swimming pools. The slosh shield with small orifices reduces the oscillating level changes.
Stem material: polypropylene
Float material: hollow polypropylene
Mounting: vertical, throw wall, with M8 nut and flat NBR gasket
Contact configuration: normally closed when float is down on the stem. It opens when float goes up to the wiring side. Upsetting the float changes the contact configuration into normally open
Electrical rating:
Low voltage type: maximum power 10 W (VA), max 0.5Amp, max voltage 110VAC.
230VAC type: max power 40 W (VA), max 1Amp Values for resistive circuit. For inductive or capacitive loads, a contact protection circuit must be used.
Contact resistance: 150mOhms maxi ( wires not included)
Wires: AWG24 cable, UL style 2464, PVC insulated, length 100, 500, 1000 or 2000 mm
Liquid limits: to be used with liquids chemically compatible with polypropylene, specific gravity higher than 0.9, dynamic viscosity higher than 0.5×10-4 Pa.s and lower than 10-2 Pa.s, without magnetic particles.
Ambient temperature: -20+80°C
Maximum pressure: 1 bar (15 PSI)
Options: other cable length, electrical rating 70W, 1A, 250VAC
Dimensions
Main references
Electrical Rating | Cable 100 mm | Cable 500 mm | Cable 1000 mm | Cable 2000 mm |
10VA (max 110VAC) | DMF0F082834F1050 | DMF0F082834F5050 | DMF0F082834FA050 | DMF0F082834FB050 |
40VA (max 230VAC) | DMF4F082834FB050 | DMF4F082834FB050 | DMF4F082834FB050 | DMF4F082834FB050 |
