Surface mounting thermostats

Precise and adjustable surface temperature control on heating plates, silicone heating pads, foil heaters.

Shaft length (mm)

,

Bracket

,

High stop Temperature (°C)

, ,

Temperature span (°C)

,

Max operating temperature (°C)

Differential (°C)

Electrical rating

This product is currently out of stock and unavailable.

SKU: N/A Category: Tag:

TECHNICAL FEATURES

Applications: Precise and adjustable surface temperature control on heating plates, silicone heating pads, foil heaters

Housing dimensions: 58.5 x 17.5 x 17.5mm (shaft and bracket not included)

Material: Metal /ceramic housing

Temperature sensing element: High conductivity copper alloy

Terminals: 2 x #6-32 screw terminals

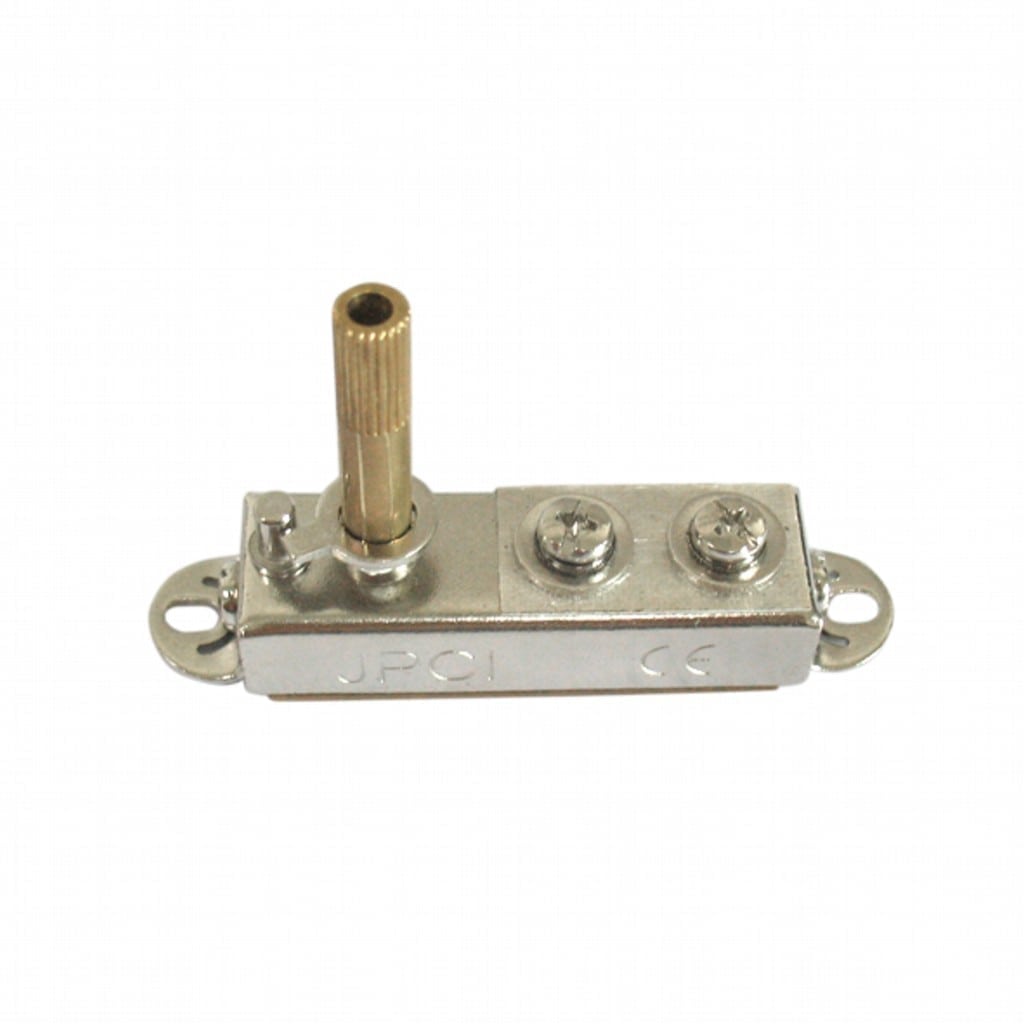

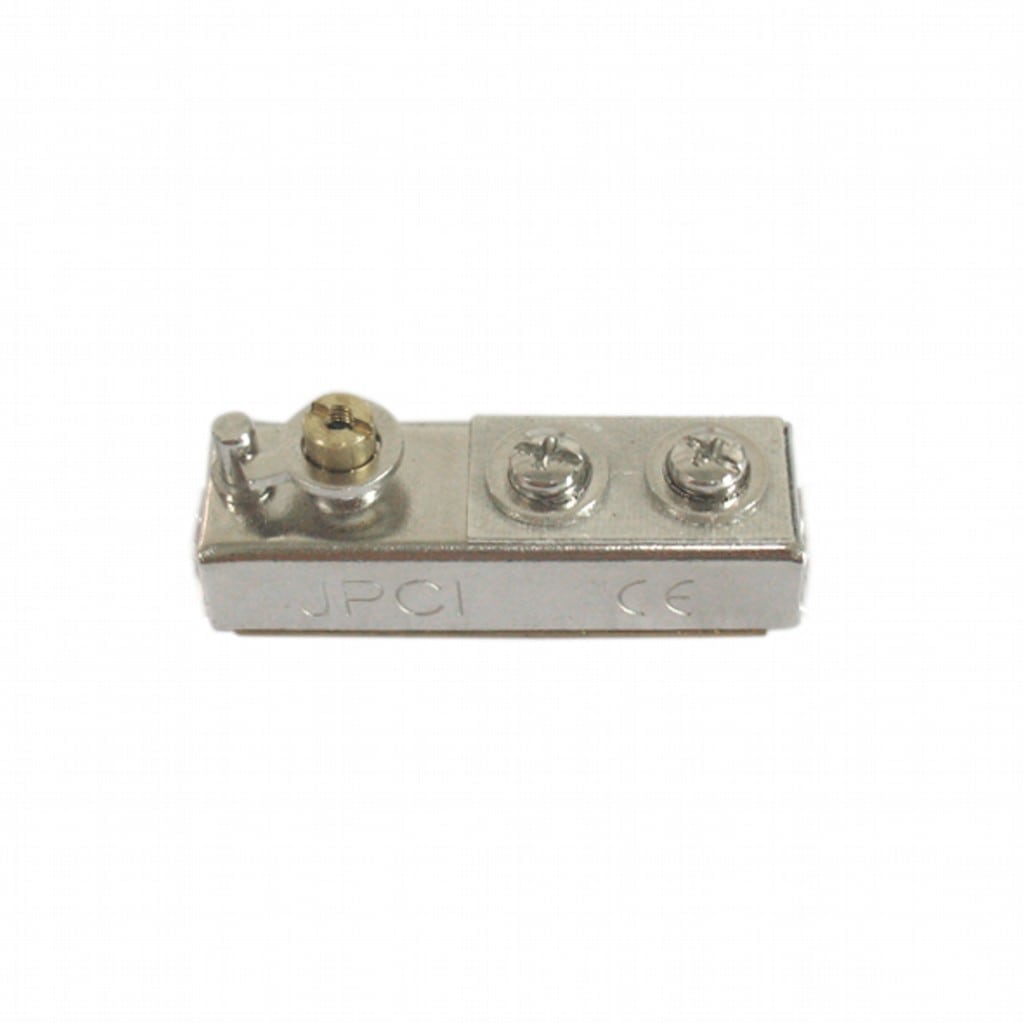

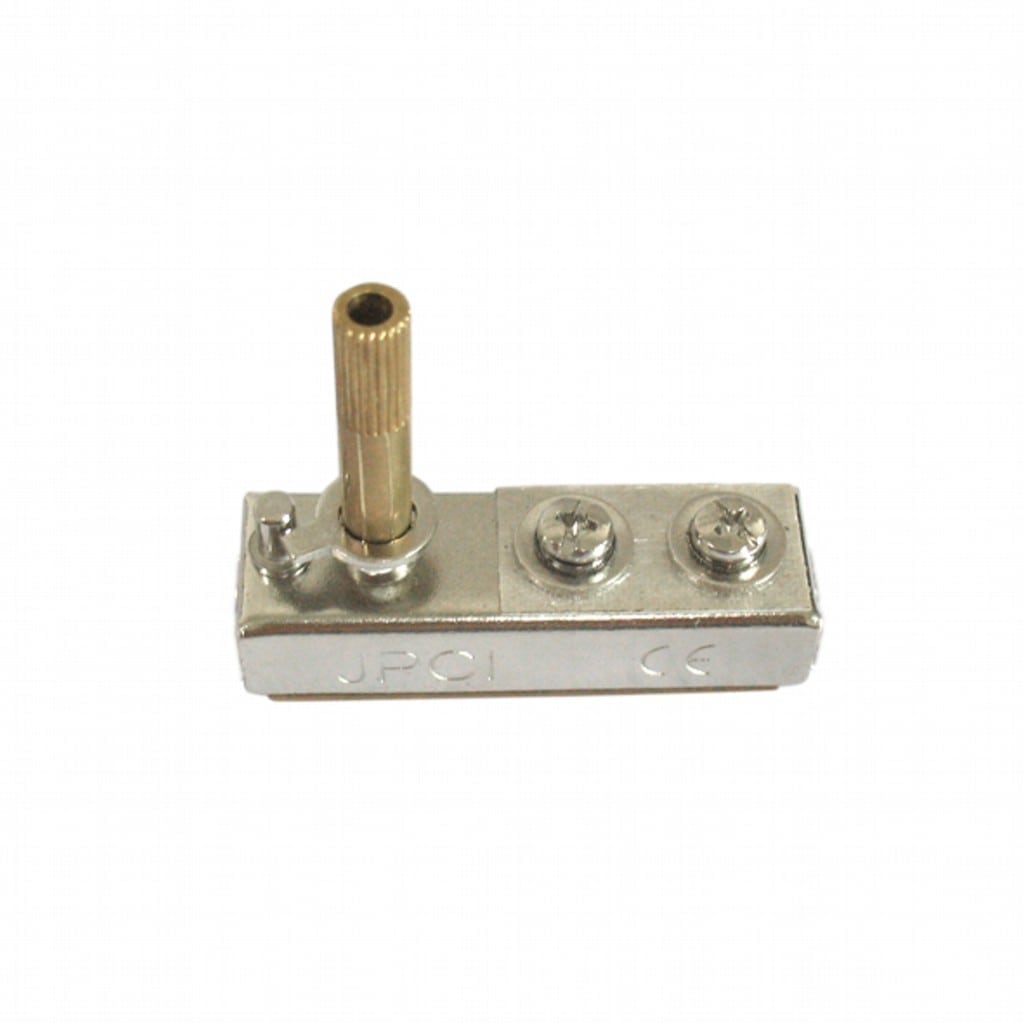

Adjustment: Dia. 6.35mm round shaft, 32 mm length, 310° mechanical rotation, or screw adjustment (other lengths, rotation or fixed setting available on request) Mounting:

  • Without bracket or with surface mounting bracket,
  • 2 holes 3.4 mm, 65.5 mm distance

Rating: 1500 watts 110/250VAC, resistive (Slow make and break action)

Contact: Open on temperature rise only

Differential: lower than 1° C

Max ambient temperature on housing: 300°C

Accessories: Knobs

Approval: Comply with UL 873 standard (limit or control)
