Paddle flow switches, micro-switch contact, 1/2” BSPP male thread and Pt100 temperature sensor

Paddle flow switches, reed switch contact, 1/2” male thread, extended paddle arm

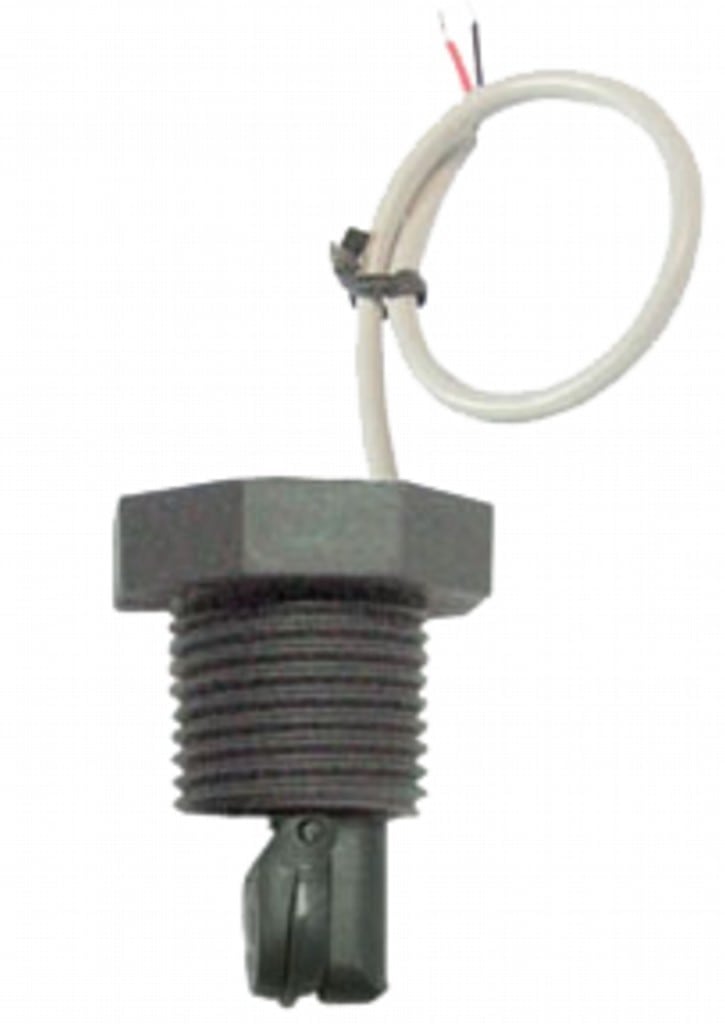

Paddle flow switches, reed switch contact, 1/2” male thread
Main uses: The most simple and price effective flow switch of the range. Used for water flow detection on small size water pipes.
Flow sensing | |
---|---|
Main housing material | |
Paddle material | |
Mounting position | |
Mounting type | |
Voltage | |
Electrical rating | |
Ingress protection | |
Wire lengths (mm) | |
Maximum flow detection (L/min) | |
Minimum flow detection (L/min) | |
Nominal pressure at 20°C | |
Max operating temperature (°C) | |
Liquids temperature range (°C) |
Description
Size and pressure | Flow sensing:
Gravity pull back paddle |
Mounting:

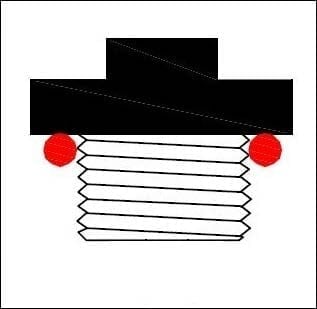

1/2” BSPP thread |
Contact:

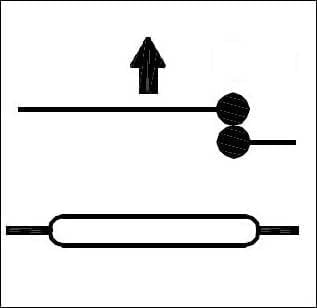

Reed switch, Open on |
Electrical rating | Mounting position | Type |
PN10 | ![]() |
![]() |
![]() |
![]() |
![]() |
R1L(BSPP) R1G (NPT) |
DN≥25 |
Dimensions

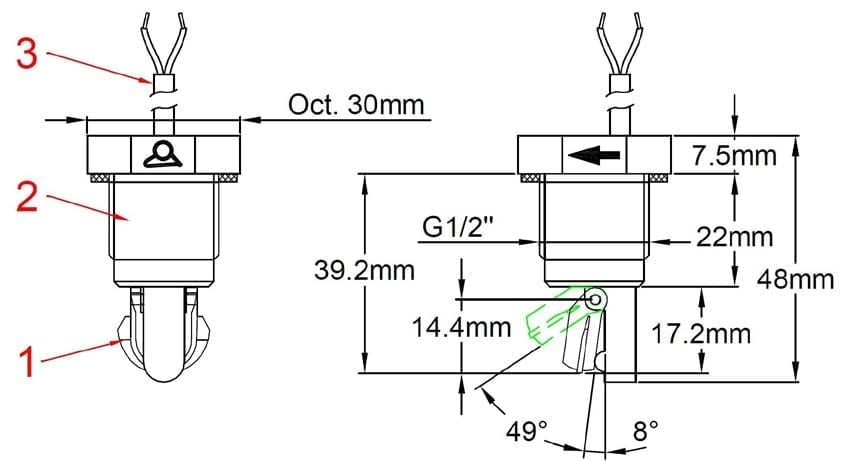

![]() R1L (1/2”BSPP) 1: Paddle 2: Body 3: Cable
|

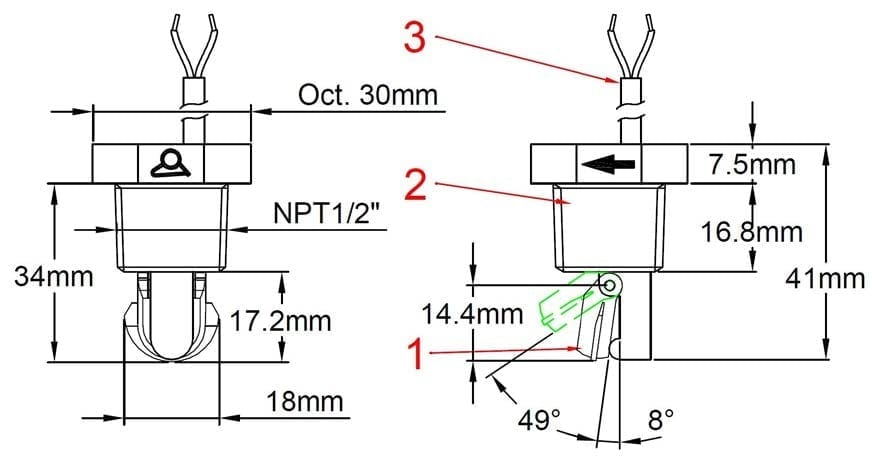

![]() R1G (1/2”NPT) 1: Paddle 2: Body 3: Cable |
Main uses: The most simple and price effective flow switch of the range. Used for water flow detection on small size water pipes. CONTACT OPENS BY FLOW RISE.
Functional principle:
Balanced magnetic paddle mounted perpendicular to the flow and activating a reed switch through the wall. The return of the paddle is by gravity, without spring. No seal or liquid can pass between the piping system and the electrical contact. Suitable for corrosive water pools and spas and salination chlorination and bromination systems. Not to be used for water containing magnetic particles or high viscosity liquids, which block the movement of the paddle.
Main housing material: Polypropylene, resistant to ozone and water disinfection products, usable with potable water.
Paddle: Polypropylene, 18mm width
Paddle shaft: Titanium, providing an outstanding corrosion resistance, and improved mechanical live

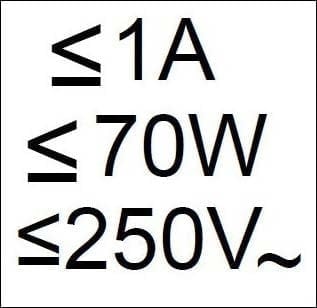

Electrical rating: Max 1A, Max 70W, Max 250V, resistive load. Use on inductive circuits reduces electrical rating. We recommend to protect the reed switch with contact protection device when used in inductive loads
Electric contact type: Normally close, open by flow rise
Liquids compatibility: For use with clean water and liquids without magnetic particles and without chemical incompatibility with polypropylene
Nominal pressure at 20°C: 1MPa (PN10)
Assembly on pipes:
![]() R1G minimum pipe diameter |
![]() R1L minimum pipe diameter |
Average Flow detection values vs pipe I.D. and paddle length (Liters/min)
Paddle length |
Pipe ID (mm)*** |
|||||||||
25 | 32 | 40 | 50 | 63 | ||||||
*Close | **Open | *Close | **Open | *Close | **Open | *Close | **Open | *Close | **Open | |
1 | 12.7 | 10.8 | 17 | 13.5 | 28 | 23 | 46 | 42 | 93 | 83 |
** Open by flow rise (L/min) of contact close at no flow position * Close by flow decrease (L/min) of contact close at no flow position. Average values for indication only. Standard tolerances ±30% |

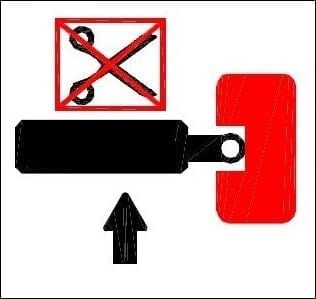

Nominal diameter: Usually used on 25 to 32 mm internal diameter pipes. The paddle is not cleavable.

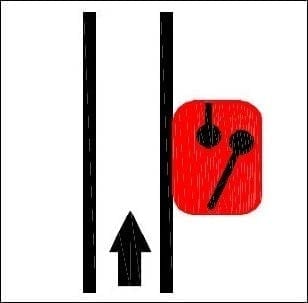

Mandatory mounting position: On vertical pipes, with horizontal flow switch axis, and paddle upside. Upstream flow only.
Water pipe connection: On female ½” fitting.On the type with BSPP thread, a NBR gasket is supplied with the product. On the type with NPT thread, thread sealant must be used.
Recommended torque: 7Nm
Liquids temperature range: 5 to 80°C
Ambient temperature range: 5 to 50°C
Ingress protection: IP65
Electrical connection: 2 x AWG24 (0.2mm²) cable, PVC insulation, T80°, style UL2464.
Installation instructions:
- Check carefully the paddle orientation: The arrow on housing must be exactly parallel to the pipe
- A 5 mm minimum gap must be respected between end of the paddle and tube wall opposite to the
- We recommend the use of nozzles of length less than or equal to 18mm between the gasket seat and the inside of the tube and with an inner diameter greater than or equal to 20 mm, to avoid blocking of the
Accessories: 1/2” PVC saddles for DN40 to DN100 (OD) PVC pipes, and other fittings: see last section of this catalogue
Options: cable with connector or terminals, other cable length
Main references
Cable length | |||
Thread | 500mm | 1m | 2m |
½” BSPP | R1L611536F45P050 | R1L611536F45P100 | R1L611536F45P200 |
½” NPT | R1G611536F45P050 | R1G611536F45P100 | R1G611536F45P200 |
Technical specifications sheet
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
