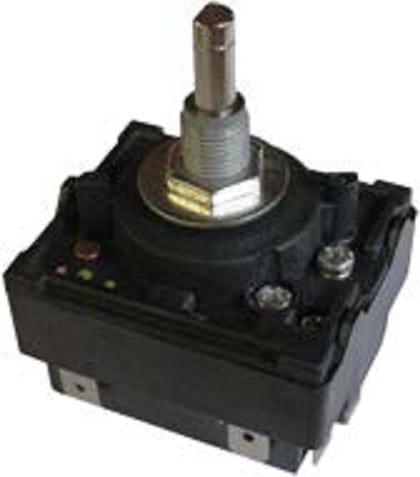

Energy regulators, 6 mm shaft, bush mounting

36.30

Energy regulators are used to adjust power on electrical heaters. Connected in line with electrical heaters, they provide adjustable cycling sequence, thus adjusting average electrical power.

Weight 0.14 kg
Electrical rating

Max operating temperature (°C)

Voltage

, , , ,

Send an inquiry for this item
  • I agree that that the website retain and use my personal information to renew contact with me.
Insert a valid name
insert a valid mail
Insert message
Authorization needed to validate the form.

Description

TECHNICAL FEATURES

Energy regulators are used to adjust power on electrical heaters. Connected in line with electrical heaters, they provide adjustable cycling sequence, thus adjusting average electrical power

Housing dimensions: 50 x 42 x 39 mm (shaft not included)

Housing material: high temperature resistant PPS

Terminals: 6.3 x 0.8 quick connect

Adjustment: dia. 6 mm with 4.8 flat shaft, length 11.4 mm (UK style models   with 4.75 mm dia. shaft available on request, MOQ apply)

Angulation:

  • Mechanical: 360°, with two pole off position at 0°
  • Electrical: Min position at 75°angular, Max position at 285° (Other angulation with max at 208.5° available on request, MOQ apply)

Mounting: Center ¼ BSPP bush with centering studs. 2 M4 , 28 mm distance screws mounting bracket available on request (MOQ apply)

Rating: 12A 230V resistive, SPDT+ on off pilot contact. Other contact configuration (SPST, SPDT without pilot, double circuit etc… are available on request, MOQ apply)

Max ambient temperature: 125°C/257°F

Approval: CE
