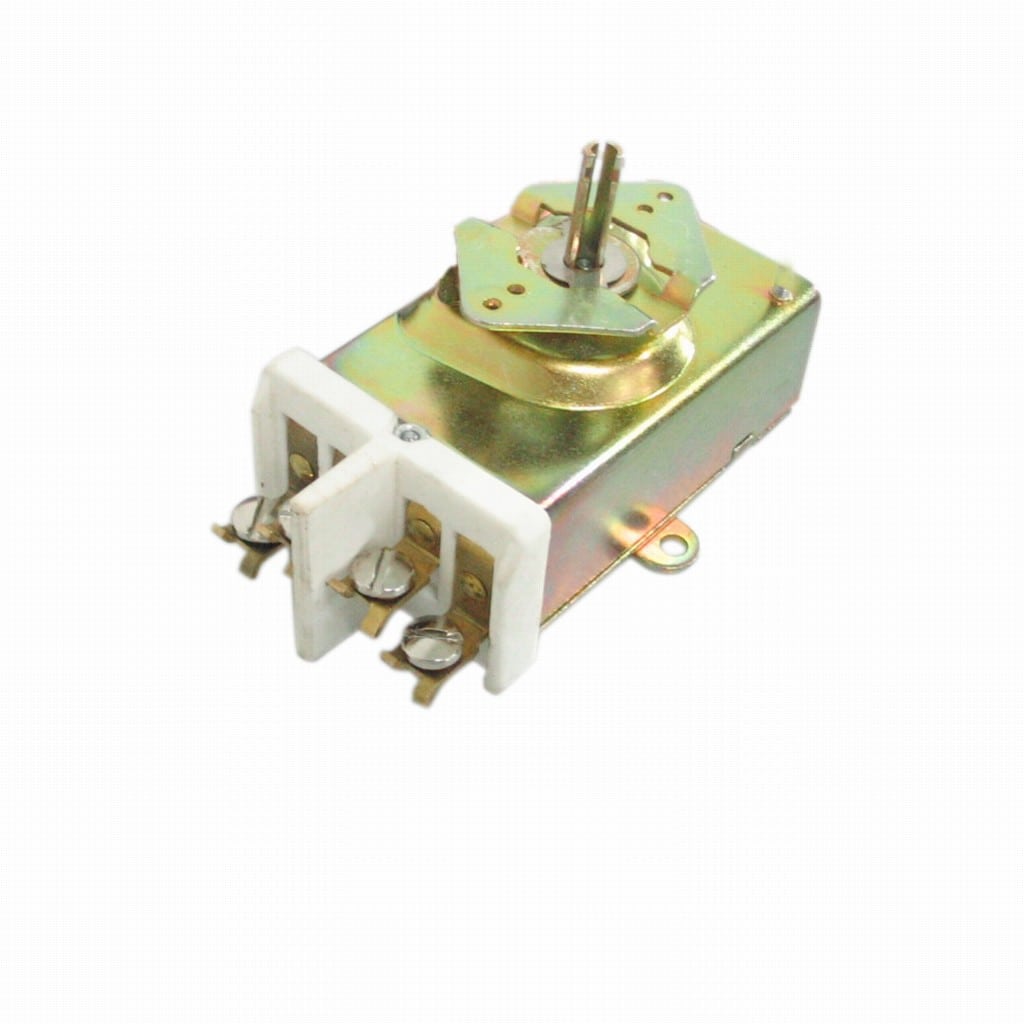

Double pole high rating (30A) bulb and capillary thermostats

High rating single pole control, for catering equipment, domestic heaters.

Electrical rating

Max operating temperature (°C)

Temperature adjustment range (°C)

, , , ,

Capillary length (mm)

Bulb diameter (mm)

Bulb length (mm)

, , ,

Differential (°C)

, , ,

Max temperature on bulb (°C)

, , ,

SKU: N/A Category: Tags: , , ,

TECHNICAL FEATURES

Applications: High rating double pole control, for catering equipment, domestic heaters.

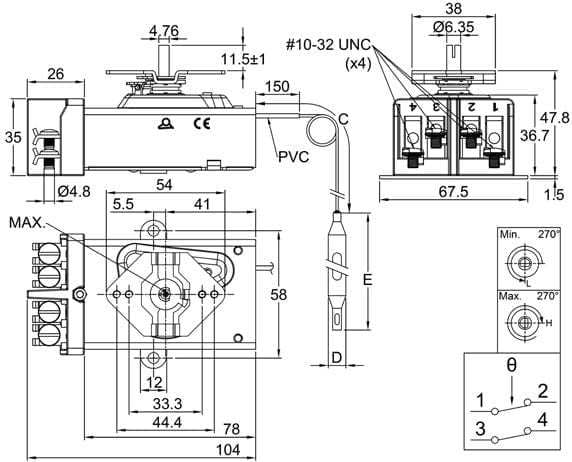

Housing dimensions: 104 x 55 x 48 mm

Material: metal /ceramic housing, stainless steel bulb and capillary. Capillary minimum bending radius 5 mm. 150 mm PVC sleeve on capillary

Temperature sensing element: liquid filled bulb and capillary. Special capillary length from 300 mm to 3000 mm on request (MOQ apply)

Terminals: 2 screws, UNC 10-32

Adjustment: dia. 6,35 mm (1/4”) shaft, 11.5 mm length, 270° mechanical rotation other lengths, rotation or fixed setting available on request (MOQ apply).

Mounting: front bracket with 4 tapped holes (#6-32 UNC-2B), 33.3 and 44.4 mm distance

Rating: 30A 250/400VAC, resistive

Contacts: 2 normally closed snap action contacts, double break, open on rise.

Option: back mounting bracket

Max ambient temperature on housing: 85°C

Accessories: dia. 50 mm knobs printed in °C or °F

Approvals: comply with EN 60730-1 and EN 60730-2 standards



Main references



Downloads

Datasheet

Related products

Quick View

Bulb and capillary thermostats

Single pole control thermostat (commercial type)

Quick View

Bulb and capillary thermostats

3 pole combination control thermostat

Quick View

Bulb and capillary thermostats

3 pole control thermostats

Quick View

Bulb and capillary thermostats

Single pole control thermostat (Appliances type)
