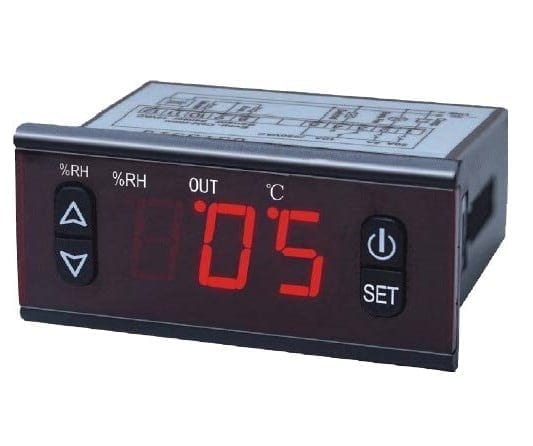

77 x 35mm intelligent humidity and or temperature controller
€39.50 – €79.80
Mini-sized and integrated intelligent controller, with very simple end-user interface: Change of set point is made without password, with up and down keys.
Weight | 0.24 kg |
---|---|
Dimensions | 85.7 × 45.4 × 42.8 mm |
Sensing element | capacitive sensor, NTC, NTC/capacitive sensor, PT100, Thermocouple K |
Contact style | |
Electrical rating | |
Voltage | |
Min operating temperature (°C) | |
Max operating temperature (°C) | |
Max ambient humidity (%RH) | |
Min ambient humidity (%RH) |
Description
MAIN FEATURES
Mini-sized and integrated intelligent controller, with very simple end-user interface: Change of set point is made without password, with up and down keys.
Input Humidity: capacitive sensor
Input temperature:
NTC : value R@25°C:10KO (±1%), B@25/50°C: 3380KQ (±1%)
Pt100 and thermocouple K Inputs: standard curves
Output relays: 16A 250V res. and (or) 10A 250V res. depending on models.
Output relay action for temperature : customer set to open on temperature rise or close on temperature rise
Alarm: 5A alarm relay on thermocouple K models
Temperature differential (if T° option exists): adjustable by customers, from 1 to 10 °C
Output relay action for humidity: customer set to open by humidity rise or close by humidity rise
Temperature display: -45°C to +120° ±1°C or 0.3% FE ± one digit. Customer setting of display in °C or °F.
Humidity display: 1-99% (+/-5%)
Humidity adjustment range: 20 to 99%
Humidity differential adjustment range: 1 to 70%
Other settings: start delay time and offset
Power supply: AC 220-230V 50-60Hz
Self-testing: Over-scale, under-scale, and open circuit sensor display.
Dimensions: 77 x 35 X 60mm. Panel cut-out 71x29mm
Ambient temperature: -10 to 60°C, 20 to 85% relative humidity, non-condensing.
Resolution: 1° (0.1° within the -19.9° à 99.9° range for the model -45+120°C)
Self testing: Over-scale, under-scale, and open circuit sensor display.
Prices include corresponding humidity and/or temperature sensors
Main References
References | Controller | Range | Sensor | Main relay output |

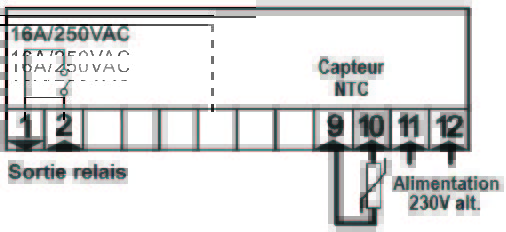

273BN6F2 | Temperature | -45 to 120°C | NTC | 16A |
273BP0F2 | Temperature | -150 to 550°C | Pt100 | 10A |
273BK1F2 | Temperature | 0 to 999°C | K | 10A |
273DJ2F2 | Temperature and Humidity | -45 to 120°C /
0 to 100%RH |
NTC and capacitive sensor | 16A (°C)
10A (%RH) |

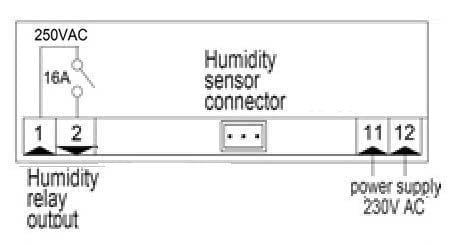

273BH6F2 | Humidity | 0 to 100%RH | capacitive sensor | 16A |
