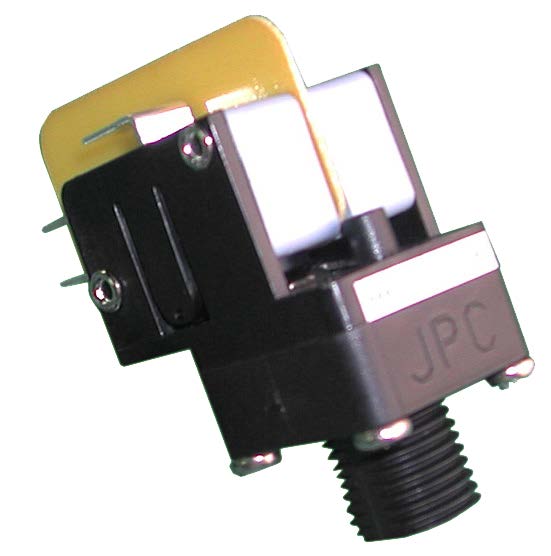

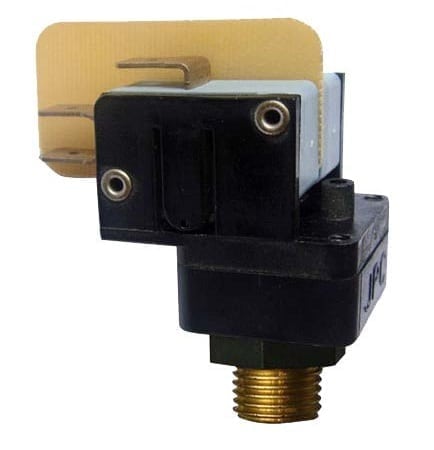

Snap action double pole contact miniature pressure switch, DPDT contact

Uses: High electrical rating, for 250V .

Main applications: Pressure sensing on water heaters, boilers, and electrical appliances.

Housing raw material

Fitting raw material

,

Electrical rating

, ,

Voltage

,

Contact style

Contact Material

Fluid

,

Max operating temperature (°C)

Min operating temperature (°C)

Maximum pressure

Set point calibration (mbar)

Send an inquiry for this item
  • I agree that that the website retain and use my personal information to renew contact with me.
Insert a valid name
insert a valid mail
Insert message
Authorization needed to validate the form.

This product is currently out of stock and unavailable.

SKU: N/A Category:

Description

Uses: High electrical rating, for 250V .

Main applications: Pressure sensing on water heaters, boilers, and electrical appliances.

Membranes: EPDM, dia 22 mm. Silicone or NBR on request Double membrane on request.

Fluid: water or air

Fitting: Plastic or metal

Pressure: positive

Housing: PA66, UL94 VO

Contact: DPDT, snap action. NO or NC contacts available with MOQ

Electrical rating: Depends on microswitch operating force that is linked to the electrical rating

  • Standard rating micro-switch (medium and high pressure calibration only): 16A 125/250VAC;1/2HP 125VAC; 3/4HP 250VAC
  • High rating micro-switch (medium and high pressure calibra- tion only): 2HP 240V, 21(8) A 240V (UL, CSA VDE switch)
  • Low force micro-switch (set points less than 200 mbar): 1/4HP 6(1) A 240V ( UL, CSA VDE switch)
  • On request: up to 25A 250V

Action: momentary.

Set point calibration: factory calibrated and sealed, not field adjustable. On request it is possible to have staggered calibration

Set point calibration limits: from 100 to 1500 mbar

Electrical connection: 6.35 x 0.8 mm quick connect terminals

Maximum pressure: 4 bars (58 PSI)

Ambient temperature limits: 0 to 85°C

Dimensions

Available pressure inlet fittings (1)



*

*

*

*





* * *


**

**

**

* only available for metal fitting

** only available for plastic fitting

References (with 1/8″ NPT fitting)

Fitting material  Standard rating micro-switch (calibration: 800mbar) Low force micro-switch (calibration: 150mbar) High rating micro-switch (calibration 800mbar)
Plastic ZW2K28U1UH000000 ZW2728U50A500000 ZW2K28U6UH000000
Metal ZW2K2RU1UH000000 ZW272RU50A500000 ZW2K2RU6UH000000

Contact us for other calibration or pressure inlet
