Slow action contact miniature pressure switches for printed circuit
Main applications: Electronic printed circuit. This pressure switch is more sensible than snap action models and can be calibrated at lower pressure values. Very small differential.
| Housing raw material | |
|---|---|
| Fitting raw material | |
| Pitch (mm) | |
| Electrical rating | |
| Voltage | |
| Contact Material | |
| Fluid | |
| Max operating temperature (°C) | |
| Min operating temperature (°C) | |
| Maximum pressure | |
| Set point calibration (mbar) |
Uses: Low voltage, high sensivity
Main applications: Electronic printed circuit. This pressure switch is more sensible than snap action models and can be calibrated at lower pressure values. Very small differential.
Membranes: EPDM, dia 22 mm. Silicone or NBR on request
Fluid: water or air

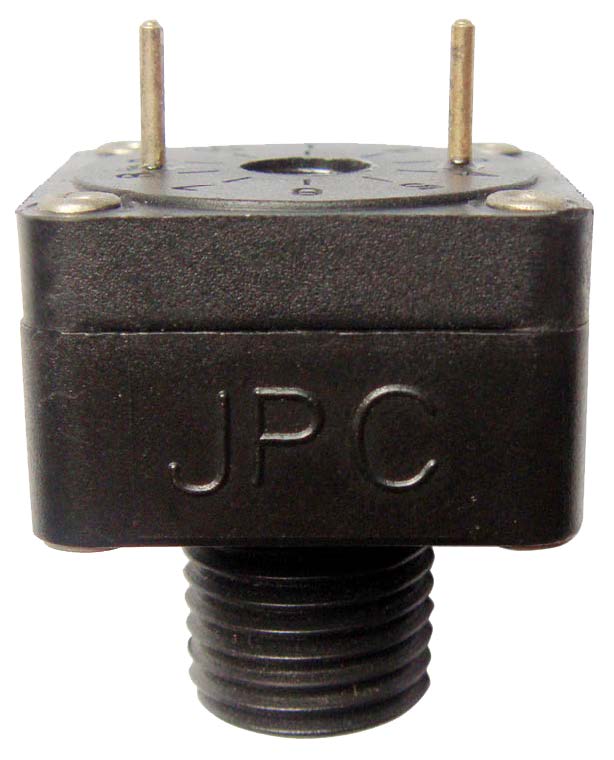

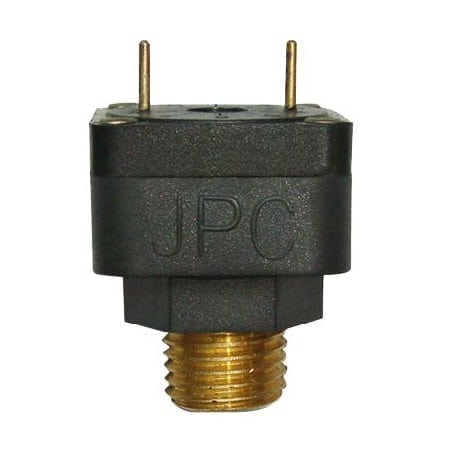

Fitting: Plastic or metal
Pressure: positive
Housing: PA66, UL94 VO
Contact: single pole normally open or normally close, slow make.
Electrical rating:
- Silver contact: max 1A 250V
- Gold plated contact: max 100 mA, 24V
Action: momentary, close or open on pressure rise.
Set point calibration: factory calibrated and sealed, not field adjustable
Set point calibration limits: standard calibration 50mbar, other values are achievable from 20 to 400 mbar
Electrical connection: printed circuit terminal, dia 1 mm, 12.7mm spacing
Maximum pressure: 2 bars (30 PSI)
Ambient temperature limits: 0 to 85°C
Dimensions
 |
 |
Available pressure inlet fittings (1)
|
* |
* |
* |
* |
|
|
 * |
 * |
 * |
** |
** |
** |
* only available for metal fitting
** only available for plastic fitting |
|
References (with calibration at 50 mbar and 1/8″ NPT fitting)
| Contact style | pitch (mm) | fitting material | silver contact | gold plated contact |
| NO | 6.35 | plastic | ZE2X28F105000000 | ZE2X28FG05000000 |
| NO | 6.35 | metal | ZE2X2RF105000000 | ZE2X2RFG05000000 |
| NO | 5 | plastic | ZE2X28L105000000 | ZE2X28LG05000000 |
| NC | 5 | plastic | ZE2X18L105000000 | ZE2X18LG05000000 |
| NO | 5 | metal | ZE2X2RL105000000 | ZE2X2RLG05000000 |
| NC | 5 | metal | ZE2X1RL105000000 | ZE2X1RLG05000000 |
Contact us for other calibration or pressure inlet
Technical specifications sheet
