Paddle flow switches, reed switch contact, 3/4”union nut, slim design

Main uses: The most simple flow switch with magnetic pull-back. Recommended mounting position is on horizontal pipes, but can be mounted in any position. For water flow detection on dia. 20 to 100 mm water pipes.



Flow sensing

Main housing material

Paddle material

Mounting position

Mounting type

,

Voltage

Electrical rating

Ingress protection

Wire lengths (mm)

, ,

Maximum flow detection (L/min)

Minimum flow detection (L/min)

Calibration (gr)

, ,

Nominal pressure at 20°C

Max operating temperature (°C)

Liquids temperature range (°C)

Send an inquiry for this item
  • I agree that that the website retain and use my personal information to renew contact with me.
Insert a valid name
insert a valid mail
Insert message
Authorization needed to validate the form.

This product is currently out of stock and unavailable.

SKU: N/A Category:

Description

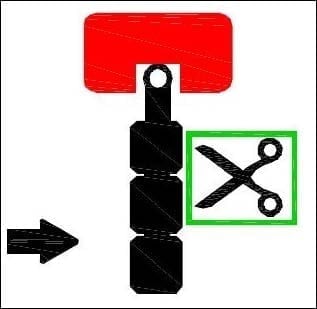

Size and pressure Flow sensing:

Cleavable magnetic pull
back paddle

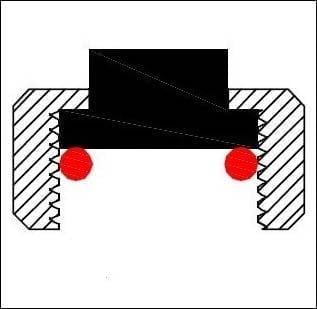

Mounting:

¾” BSPP plastic union
nut

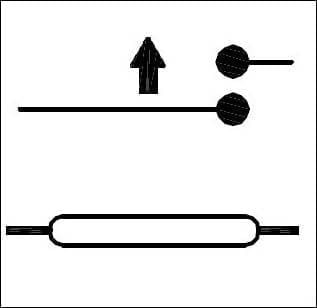

Contact:

Reed switch, Close on
flow rise

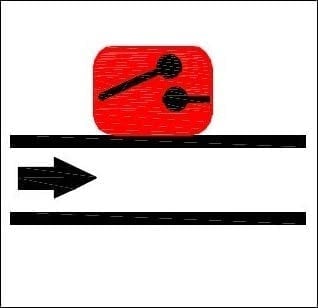

Electrical rating Mounting position Type
PN10

R1P

DN≥20

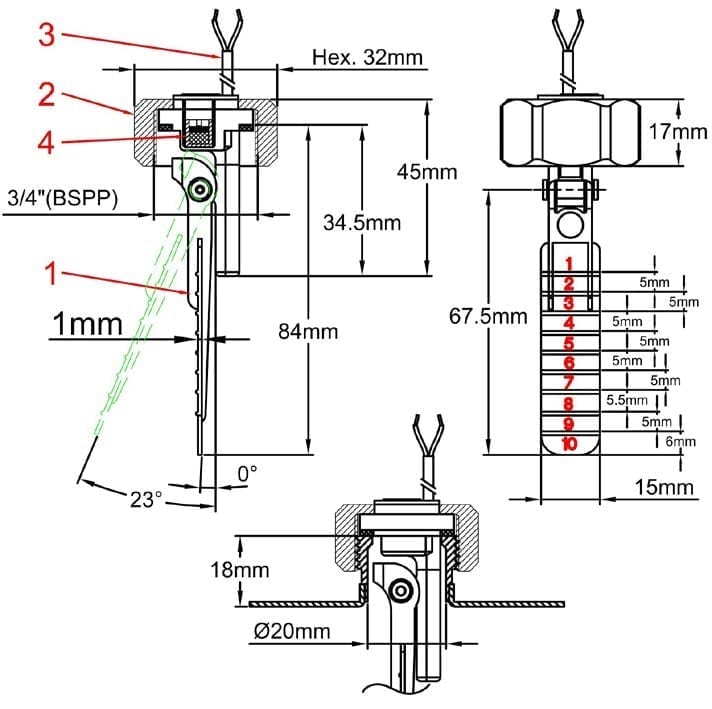

Dimensions

1: Cleavable paddle

2: 3/4” BSPP plastic union nut

3: Connection cable

4: Adjustment screw

Main uses: The most simple flow switch with magnetic pull-back. Recommended mounting position is on horizontal pipes, but can be mounted in any position. For water flow detection on dia. 20 to 100 mm water pipes

Functional principle: Balanced magnetic paddle mounted perpendicular to the flow and activating a reed switch through the wall. The return of the paddle is by made by magnetic action, without spring. No seal or liquid can pass between the piping system and the electrical contact. Suitable for corrosive water pools and spas and salination chlorination and bromination systems. Must not to be used for water containing magnetic particles or high viscosity liquids, which block the movement of the paddle.

Adjustment: there are 2 adjustment ways on this model

  • By cleaving the paddle
  • By means of the adjustment screw located under the protective This setting must be carried out only by professional, qualified and trained personnel, as a too low setting can produce an insufficient pull-back force and malfunction. This adjustment is designed for single use and can be sealed.

Main housing material: Polypropylene, resistant to ozone and water disinfection products, usable with potable water.

Union nut material: High mechanical strength fiber glass reinforced PA66. The type without nut is designed for snap-in assembly on plastic and stainless steel fittings. (See last section of this catalogue)

Paddle: Polypropylene, 15 mm width

Paddle shaft: Titanium, providing an outstanding corrosion resistance, and improved mechanical live

Electrical rating: Max 1A, Max 70W, Max 250V, resistive load. Use on inductive circuits reduces electrical rating. We recommend to protect the reed switch with contact protection device when used in inductive loads

Electric contact type: Normally open, closes by flow rise

Liquids compatibility: For use with clean water and liquids without magnetic particles and without chemical incompatibility with  polypropylene and titanium

Nominal pressure at 20°C: 1MPa (PN10

Assembly on pipes:



Average Flow detection values vs pipe I.D. and paddle length (Liters/min)

Paddle

length

Pipe ID (mm)
20 25 32 40 50 63 100
*Close **Open *Close **Open *Close **Open *Close **Open *Close **Open *Close **Open *Close **Open
1 (2,5) 3,7 (5.3) (2,1) 3,3 (4,8) (5,8) 7,7 (16) (4,7)7,2 (14) (13) 18 (27) (11) 16 (25) (23) 28 (53) (20) 25 (43) (49) 65 (78) (35) 53 (65) (113) 138 (237) (75) 93 (142) (217) 258 (420) (187) 217 (330)
1+2 (8,1) 11 (19) (6,5)10 (18) (18) 21(35) (16) 18 (32) (30) 37 (65) (26) 33 (53) (63) 95 (175) (52) 78 (100) (158) 208 (350) (140) 183 (280)
1~3 (5,7) 9 (16) (4,8) 8 (14) (13) 16 (28) (10) 13 (25) (21) 28 (42) (18) 25 (30) (47) 70(125) (37) 52 (92) (123)157 (262) (109) 135 (237)
1~4 (7,2)13 (22) (5)10 (19) (17) 22 (35) (14) 19 (32) (38) 48 (87) (32 38 (67) (108) 130 (223) (93) 108 (197)
1~5 (13) 18 (28) (4,6) 15 (26) (28) 40 (62) (25) 33 (50) (83) 98 (183) (73) 87 (163)
1~6 (9,2) 15 (24) (7,8) 12 (22) (21) 30 (53) (18) 25 (43) (73) 80 (150) (63) 73 (137)
1~7 (7,1) 11 (23) (5,4) 8 (18) (17) 22 (41) (13) 18 (37) (58) 73 (130) (53) 68 (120)
1~8 (13) 19 (35) (10) 14 (32) (49) 63 (98) (43) 55 (88)
1~9 (10) 15 (28) (7) 12 (25) (43) 56 (90) (38) 48 (85)
1~10 (42) 48 (84) (37) 42 (73)

*Close by flow rise (L/min) of contact open at no flow position

** Open by flow decrease (L/min) of contact open at no flow position. Average values for indication only. Standard tolerances±30% Values upon (low span end) , middle span and (high span end) calibration.



Nominal diameter: Can be used on 25 to 100 mm internal diameter pipes. The paddle is cleavable and can be cut at various lengths upon pipe diameter. There are cutting lines numbered 1 to 10 every 5mm.

Recommended mounting position: On horizontal pipes. Mounting in other positions slightly modify the calibration

Water pipe connection: On male 3/4” fitting. NBR gasket is supplied with the product.

Recommended torque: 7Nm

Liquids temperature range: 5 to 80°C

Ambient temperature range: 5 to 50°C

Ingress protection: IP65

Electrical connection: 2 x AWG24 (0.2mm²) cable, PVC insulation, T80°, style UL2464.

Installation instructions:

  • Check carefully the paddle orientation: The arrow on housing must be exactly parallel to the pipe
  • A 5 mm minimum gap must be respected between end of the paddle and tube wall opposite to the
  • We recommend the use of nozzles of length less than or equal to 18mm between the gasket seat and the inside of the tube and with an inner diameter greater than or equal to 20 mm, to avoid blocking of the

Accessories: 3/4” male PVC saddles for DN40 to DN100 (OD) PVC pipes, and other fittings: see last section of this catalogue

Options: cable with connector or terminals, other cable length, nickel plated ¾” BSPP union nut

Main references

Calibration Mounting Cable length
500mm 1m 2m
Low span end (1gr) ¾” BSPP Union nut R1P616884G35P050 R1P616884G35P100 R1P616884G35P200
Low span end (1gr) No nut, for snap-in mounting R1P616884S15P050 R1P616884S15P100 R1P616884S15P200
Middle span (2grs) ¾” BSPP Union nut R1P626884G35P050 R1P626884G35P100 R1P626884G35P200
Middle span (2 grs) No nut, for snap-in mounting R1P626884S15P050 R1P626884S15P100 R1P626884S15P200
High span end (4grs) ¾” BSPP Union nut R1P646884G35P050 R1P646884G35P100 R1P646884G35P200
High span end (4grs) No nut, for snap-in mounting R1P646884S15P050 R1P646884S15P100 R1P646884S15P200
