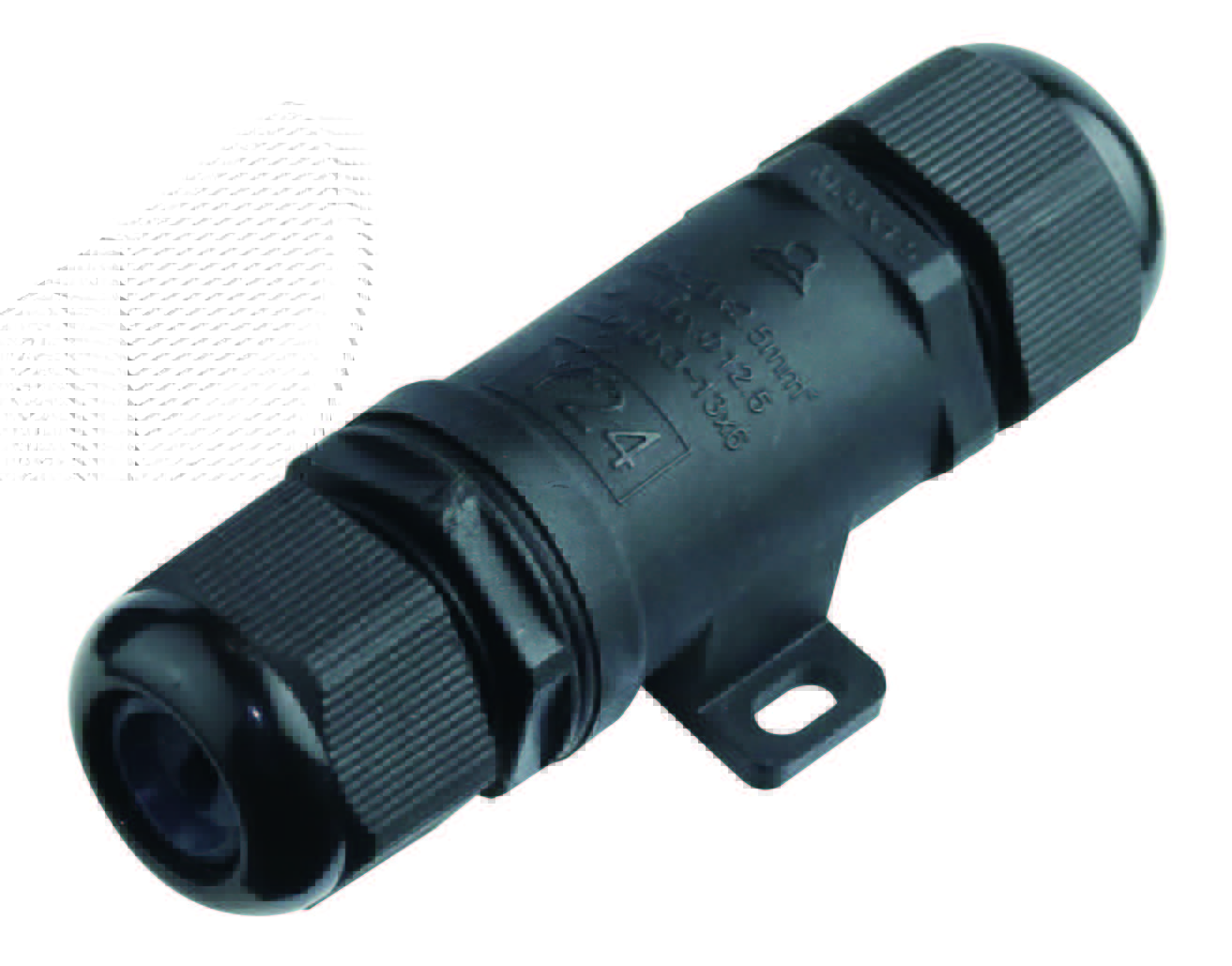

In line connection box for heat tracing cables
This box allows to connect end-to-end, on field, a round or flat heating cable to a round power cable. However, it also makes it possible to connect together two round cables or two flat cables. The internal connection terminal block is ceramic.
Ingress protection | |
---|---|
Raw material |
Description
Applications
This box allows to connect end-to-end, on field, a round or flat heating cable to a round power cable. However, it also makes it possible to connect together two round cables or two flat cables. The internal connection terminal block is ceramic.
Main features

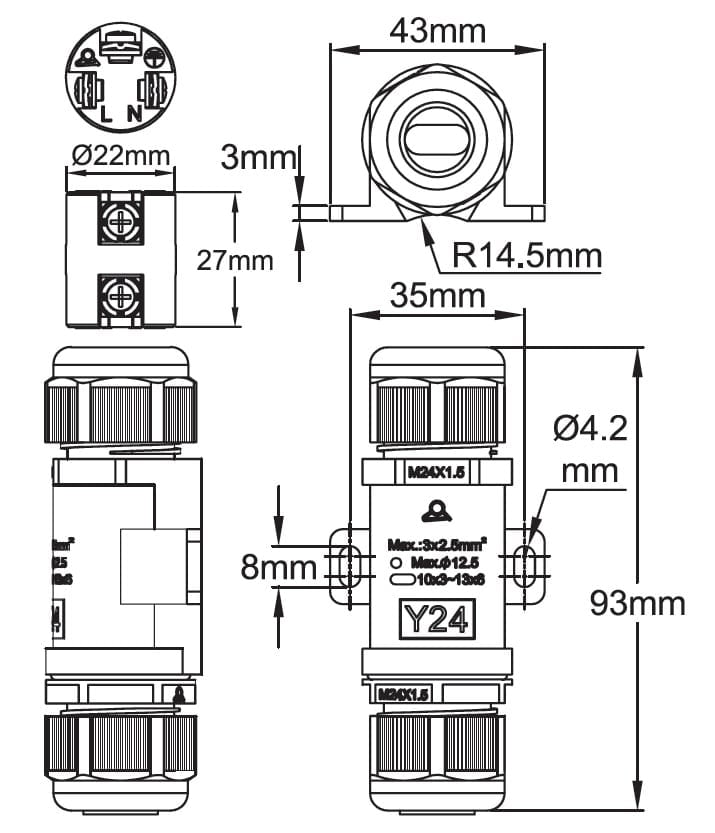

Material: Polyamide 66 black, total length 93mm. Good UV resistance.
Waterproof grade: IP66
Mounting:
- By 2 side brackets for wall mounting for 4 mm diameter screws, 35mm between
- On the tube by a nylon The lower part is concave to facilitate this assembly and the oblong holes of the legs allow the passage and holding of a cable tie.
Terminal block:
- High temperature ceramic with screw terminals with captive toothed square washers accepting bare conductors
- 3 conductors, from 0.5 to 5mm².
- Maximum permissible intensity: 16A
Cable clamping: with M24 cable glands, with silicone gaskets.
- Maximum diameter of round cables: 12,5mm.
- Limit sizes of flat cables: from 10 x 3 to 13 x (comes with a set of different diameters).
- Excellent cable retention at both ends.
Easy assembly: it is possible to slide the ceramic terminal block out of the body to connect the cables to the outside.

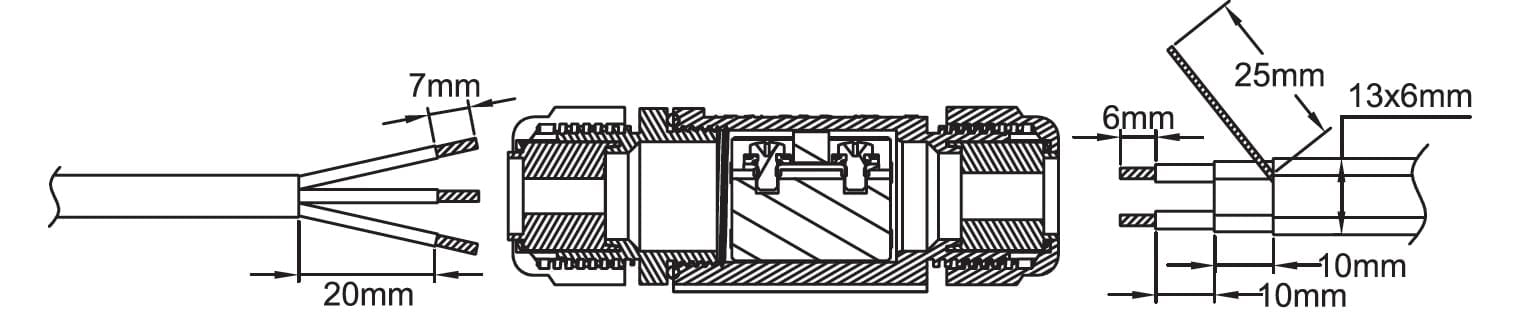

Cables assembly operations
Pass the cables through the cable glands after sliding out the terminal block. Connect the cables to the terminal block.
Slide the terminal block into the housing, tighten the round cable gland.
Screw the body of the mobile cable gland without sliding in the flat cable gland gasket.
Slide the flat cable gasket into the cable gland and tighten the nut
Fix the box on a wall (with 2 screws) or on a tube (with a nylon cable tie)
