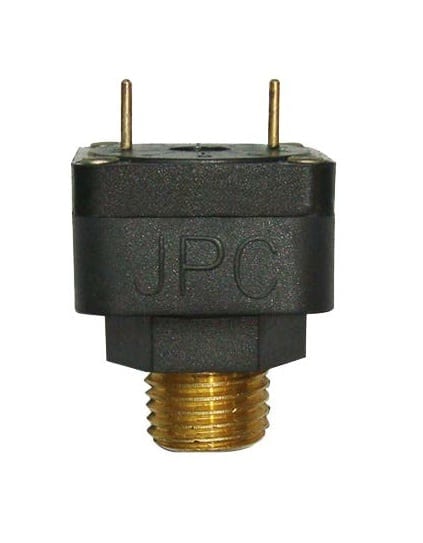

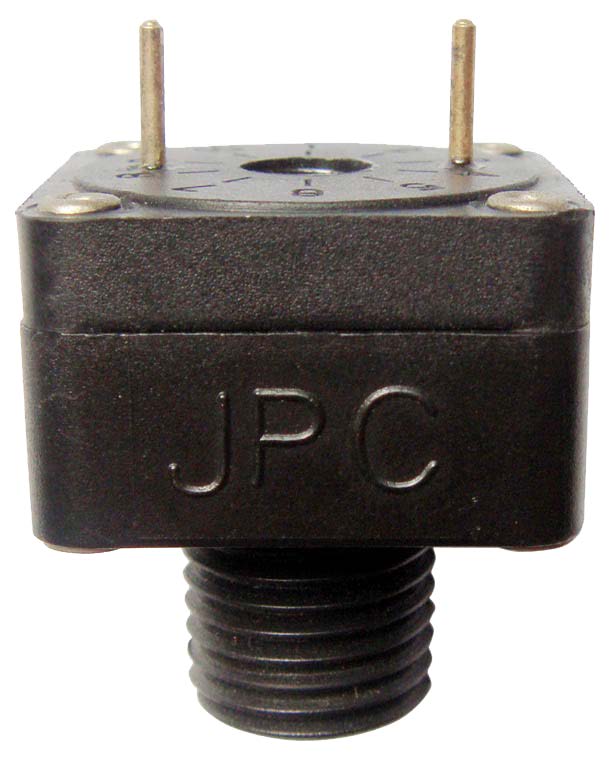

Slow action contact miniature vacuum switches for printed circuit

Uses: Low voltage, high sensivity

Main applications: Electronic printed circuit. This vacuum switch is more sensible than snap action models and can be calibrated at lower pressure values. Very small differential.

Housing raw material

Fitting raw material

,

Pitch (mm)

Electrical rating

,

Voltage

,

Contact Material

,

Max operating temperature (°C)

Min operating temperature (°C)

Maximum pressure

Maximum vacuum (mbar)

Set point calibration (mbar)

Send an inquiry for this item
  • I agree that that the website retain and use my personal information to renew contact with me.
Insert a valid name
insert a valid mail
Insert message
Authorization needed to validate the form.

This product is currently out of stock and unavailable.

Description

Uses: Low voltage, high sensivity

Main applications: Electronic printed circuit. This vacuum switch is more sensible than snap action models and can be calibrated at lower pressure values. Very small differential.

Membranes: EPDM, dia 22 mm. Silicone or NBR on request

Fluid: air or water

Fitting: Plastic or metal

Pressure: negative (Vacuum)

Housing: PA66, UL94 VO

Contact: single pole normally open or normally close at atmospheric pressure, slow make.

Electrical rating:

  • Silver contact: max 1A 250V
  • Gold plated contact: max 100 mA, 24V

Action: momentary, close or open on vacuum increase (=decrease of absolute pressure).

Set point calibration: factory calibrated and sealed, not field

adjustable

Set point calibration limits (relative pressure): standard calibration minus 50mbar, other values are achievable from minus 20 to minus 200 mbar

Electrical connection: printed circuit terminal, dia 1.2 mm, 15

mm spacing

Maximum pressure: 2 bars (30 PSI)

Maximum vacuum: minus 500 mbar (relative pressure)

Ambient temperature limits: 0 to 85°C

Dimensions

Available pressure inlet fittings (1)



*

*

*

*





* * *


**

**

**

* only available for metal fitting

** only available for plastic fitting

References (with calibration at minus 50 mbar and 1/8″ NPT fitting)

Contact style fitting material silver contact gold plated contact
NO plastic ZF2X28L105000000 ZF2X28LG05000000
NC plastic ZF2X18L105000000 ZF2X18LG05000000
NO metal ZF2X2RL105000000 ZF2X2RLG05000000
NC metal ZF2X1RL105000000 ZF2X1RLG05000000

Contact us for other calibration or pressure inlet
