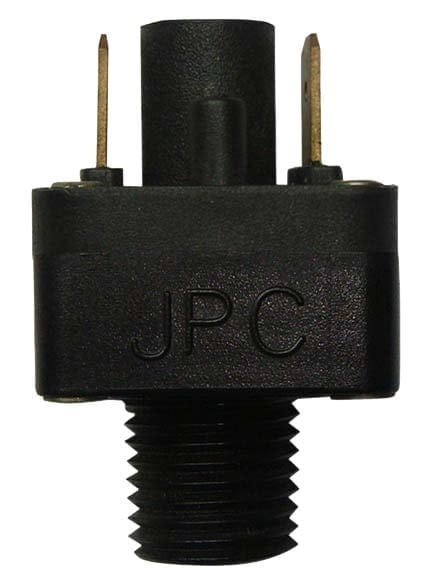

Slow action contact miniature air switches, 6.35 x 0.8 mm terminals

Uses: Low voltage, high sensivity

Main applications: Remote controls for spa, swimming pools saunas, intrusion detection carpets, plumbering equipment. This pressure switch is more sensitive than snap action models and allows longer tubing distance

Housing raw material

Fitting raw material

Pitch (mm)

,

Electrical rating

,

Voltage

,

Contact Material

,

Max operating temperature (°C)

Min operating temperature (°C)

Maximum pressure

Set point calibration (mbar)

Send an inquiry for this item
  • I agree that that the website retain and use my personal information to renew contact with me.
Insert a valid name
insert a valid mail
Insert message
Authorization needed to validate the form.

This product is currently out of stock and unavailable.

SKU: N/A Category:

Description

Uses: Low voltage, high sensivity

Main applications: Remote controls for spa, swimming pools sau- nas, intrusion detection carpets, plumbering equipment. This pres- sure switch is more sensitive than snap action models and allows longer tubing distance

Membranes: EPDM, dia 22 mm. Silicone or NBR on request

Fluid: air

Fitting: Plastic spout for 1/8(3mm) or 1/16(1.5mm) ID flexible plastic tubing maximum hardness 70 shore A

Pressure: positive

Housing: PA66, UL94 VO and ABS

Contact: single pole normally open, slow make.

Electrical rating:

  • Silver contact: max 1A 250V
  • Gold plated contact: max 100 mA, 24V

Action: momentary, close on pressure impulse.

Set  point  calibration:  50mbar,  factory  calibrated  and  sealed, not field adjustable. Other values on request

Electrical connection: printed circuit terminal, dia 1.2 mm, 15 mm spacing

Maximum pressure: 2 bars (29 PSI)

Ambient temperature limits: 0 to 85°C

Barometric compensation: groove on 4 mm spout for ¼ NPSM, cali- brated orifice on 9/16-18

Caution: This compensation is skipped if using ¼ thread for pressure connection

Mounting fittings: ¼” NPSM or 9/16-18 (2 possible flat positions)

Switch operation: Operates on a sealed pressure air displacement. Do not use pressure transmitters with air input to avoid pumping action.

Use air transmitters with enough air volume to achieve minimum operating pressure.

Caution: too long connecting tubing and/or too small pressure transmitter will not operate the air switch or will operate it with a momentary action.

Accessories: shipped with plastic nut. Maximum tightening torque with plastic nut is 0.08mkg (0.8Nm).

Recommended value: 0.5 Nm . Stainless steel nut or tube securing nut (*) on request

Dimensions



Available pressure inlet fittings (1) Mounting * Tube securing nut

References (with calibration at 50 mbar)

Pressure inlet Silver contact Gold plated contact
9/16-18+ spout, 2 flats at 0°, standard nut ZF2X2UEA05000008 ZF2X2UEG05000008
9/16-18+ spout, 2 flats at 90°, standard nut ZF2X2WEA05000008 ZF2X2WEG05000008
1/4 NPSM + spout, standard nut ZF2X2IEA05000006 ZF2X2IEG05000006
9/16-18+ spout, 2 flats at 0°, tube securing nut ZF2X2UEA05000009 ZF2X2UEG05000009
9/16-18+ spout, 2 flats at 90° tube securing nut ZF2X2WEA05000009 ZF2X2WEG05000009
1/4 NPSM + spout, tube securing nut ZF2X2IEA05000007 ZF2X2IEG05000007

Contact us for other calibration set points
