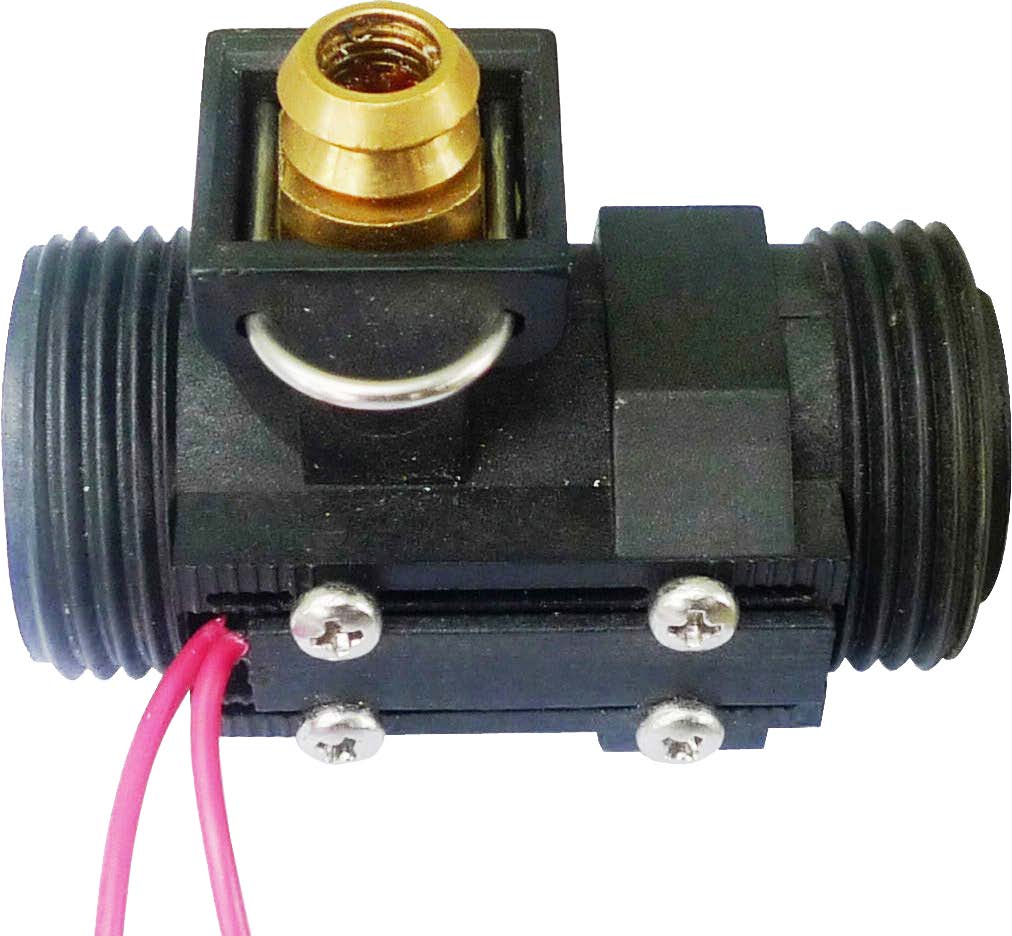

Piston flow switches, reed switch contact, inlet and outlet 3/4” BSPP male

Main applications: Product developed for electrical or gas instantaneous water heaters. 3/4 “ BSPP male water inlet and outlet. Mandatory vertical mounting, with water inlet from the bottom. Built-in over-pressure valve



Flow sensing

Main housing material

Paddle material

Mounting position

Mounting type

Voltage

Electrical rating

Ingress protection

Electrical connection type

Electrical contact close at (L/min)

, ,

Maximum flow detection (L/min)

Minimum flow detection (L/min)

Nominal pressure at 20°C

Max operating temperature (°C)

Liquids temperature range (°C)

Send an inquiry for this item
  • I agree that that the website retain and use my personal information to renew contact with me.
Insert a valid name
insert a valid mail
Insert message
Authorization needed to validate the form.

This product is currently out of stock and unavailable.

SKU: N/A Category:

Description

Size and pressure Flow sensing:

Magnetic piston

Mounting:

3/4” male inlet and
outlet

Contact:

Reed switch, close on
flow rise

Electrical rating Mounting position Type
PN10

R36

DN20

Dimensions

1: 3/4” BSPP Water inlet

2: Flow detection piston



3: 3/4” BSPPWater outlet

4: Over-pressure valve

Main applications: Product developed for electrical or gas instantaneous water heaters. 3/4 “ BSPP male water inlet and outlet. Mandatory vertical mounting, with water inlet from the bottom. Built-in over-pressure valve

Functional principle: Magnetic piston mounted in line with the flow and activating a reed switch through the wall. The return of the piston is by made by gravity. No seal or liquid can pass between the piping system and the electrical contact. Suitable for potable water. Must not be used for water containing magnetic particles or high viscosity liquids, which block the movement of the piston.

Adjustment: Can be factory set by adjusting the piston diameter and piston weight

Body material: PPO compatible with drinking water.

Piston: PPO

Electrical rating: Max 1A, Max 70W, Max 250V, resistive load. Use on inductive circuits reduces electrical rating. We recommend to protect the reed switch with contact protec- tion device when used in inductive loads

Electric contact type: Normally open, closes by flow rise

Liquids compatibility: For use with clean water and liquids without magnetic particles and without chemical incompatibility with PPO Nominal pressure at 20°C: 1MPa (PN10)

Flow detection set point factory setting limits:

Close by flow rise: 2,4 to 8 L/min

Open by flow decrease: About 0.4 to 0.5L/min lower than close value

Nominal diameter: DN20

Mandatory mounting position: on vertical pipes, upstream flow

Water pipe connection: Water inlet and outlet: 3/4” BSPP male fitting (Needs gasket). Recommended torque: 7N.m

Liquids temperature range: 5 to 80°C

Ambient temperature range: 5 to 50°C

Overpressure valve calibration value: 1.5 MPa +0.5, -0

Ingress protection: IP65

Electrical connection: 2 x AWG24 wires (0.2mm²), PVC insulation, T80°, standard length 300 mm.

Options (MOQ apply):

  • Wires with connector or terminals,
  • Other wire lengths,
  • Other calibration values
  • Upside water inlet,(by adding an internal stainless steel piston spring)

Main references  (with 300 mm wires)

References Close on flow rise (L/min) Open on flow decrease (L/min)
R36B630240150330 2,4±0,3 1,8±0,3
R36B630300150330 3±0,3 2.6±0,3
R36B630350150330 3,5±0,3 2.9±0,3

Other calibration on request
