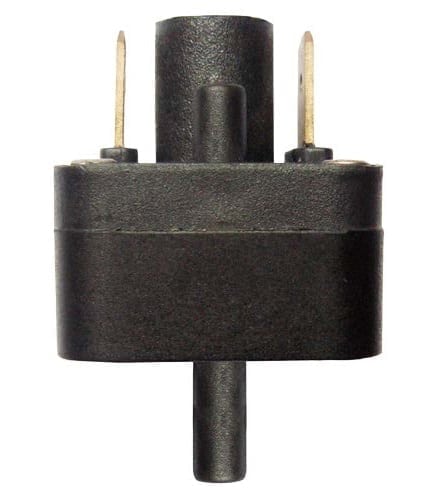

Medium pressure, slow action contact differential pressure switches, 6.35×0.8 mm terminals
Uses: Low voltage, high sensivity
Main applications: Detection of medium positive, negative or differential pressure. Measurement of liquid levels, water filters efficiency.
Housing raw material | |
---|---|
Electrical rating | |
Voltage | |
Contact Material | |
Fluid | |
Max operating temperature (°C) | |
Min operating temperature (°C) | |
Maximum pressure | |
Maximum vacuum (mbar) | |
Set point calibration (mbar) |
Description
Uses: Low voltage, high sensivity
Main applications: Detection of medium positive, negative or differential pressure. Measurement of liquid levels, water filters efficiency.
Membranes: EPDM, dia 22 mm. Silicone or NBR on request
Fluid: water or air (no liquid input on the negative pressure inlet)
Fitting: two plastic spouts dia 4 mm for soft PVC tube 3×6 mm (1/8”). On request threaded fitting on positive inlet
Pressure: Differential
Housing: PA66, UL94 VO
Contact: single pole normally open, slow action. NC contact is available on request (MOQ)
Electrical rating:
- Silver contact: max 1A 250V
- Gold plated contact: max 100 mA, 24V
Action: momentary, close by pressure rise on positive pressure inlet
Set point calibration: factory calibrated and sealed, not field adjustable
Set point calibration limits: from 10 to 400 mbar
Differential: less than 10 mbar
Electrical connection: two 6.3 x 0.8 mm quick connect terminals
Maximum positive pressure: 1000 mbar (15 PSI)
Maximum negative pressure: minus 500 mbar
Ambient temperature limits: 0 to 85°C
Dimensions
![]() |
Available pressure inlet fittings (1)
References
Calibration (mbar) | Silver contact | Gold plated contact |
75 | ZA2X24EA07500000 | ZA2X24EG07500000 |
100 | ZA2X24EA0A000000 | ZA2X24EG0A000000 |
200 | ZA2X24EA0B000000 | ZA2X24EG0B000000 |
300 | ZA2X24EA0C000000 | ZA2X24EG0C000000 |
400 | ZA2X24EA0D000000 | ZA2X24EG0D000000 |
Contact us for other calibration or pressure inlet
Technical specifications sheet
