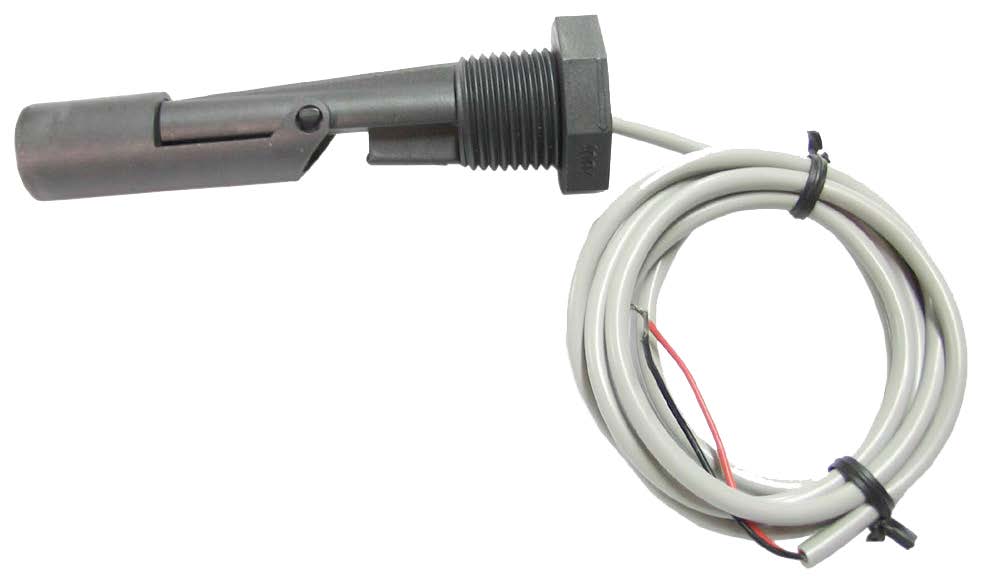

Horizontal mounting, reed switch contact, PBT stem, hollow PBT float, cable output, ½”NPT thread
Main applications: steam generators, coffee machines, vending machines, air conditioning pumps, dehumidifiers, tanks. The side mounting allows to adjust the level on big size tanks.
| Stem material | |
|---|---|
| Float material | |
| Mounting position | |
| Mounting type | |
| Electrical rating | |
| Contact resistance (mOhms) | |
| Wire lengths (mm) | |
| Max operating temperature (°C) | |
| Min operating temperature (°C) | |
| Maximum pressure |
Use: low voltage circuits
Main applications: steam generators, coffee machines, vending machines, air conditioning pumps, dehumidifiers, tanks. The side mounting allows to adjust the level on big size tanks.
Stem material: PBT
Float material: hollow PBT
Mounting: horizontal on ½”BSPP female fitting
Contact configuration: It opens when the float touch the stem. Two positions are possible:
-The float is on the top of the stem: contact is normally open (the float touch the stem when there is no liquid), and will close when the level rises and the float goes up
-The float is pending downside under the stem: contact is normally closed (the float does not touch the stem) and will open when the level rises and the float goes up and touch the stem.
Electrical rating:
Low voltage type: maximum power 10 W (VA), max 0.5Amp, max voltage 110VAC.
230VAC type: max power 40 W (VA), max 1Amp. Values for resistive circuit. For inductive or capacitive loads, a contact protection circuit must be used.
Contact resistance: 150mOhms maxi ( wires not included)
Wires: AWG24 cable, UL style 2464, PVC insulated, length 100, 500, 1000 or 2000 mm
Liquid limits: to be used with liquids chemically compatible with PBT, specific gravity higher than 0.9, dynamic viscosity higher than 0.5×10-4 Pa.s and lower than 10-2 Pa.s, without magnetic particles.
Ambient temperature: -20+80°C
Maximum pressure: 1 bar (15 PSI)
Options: other cable length, electrical rating 70W, 1A, 250VAC
Dimensions
Main references
| Electrical Rating | Cable 100 mm | Cable 500 mm | Cable 1000 mm | Cable 2000 mm |
| 10VA (max 110VAC) | DTP0P207618G1050 | DTP0P207618G5050 | DTP0P207618GA050 | DTP0P207618GB050 |
| 40VA (max 230VAC) | DTP4P207618G1050 | DTP4P207618G5050 | DTP4P207618GA050 | DTP4P207618GB050 |
