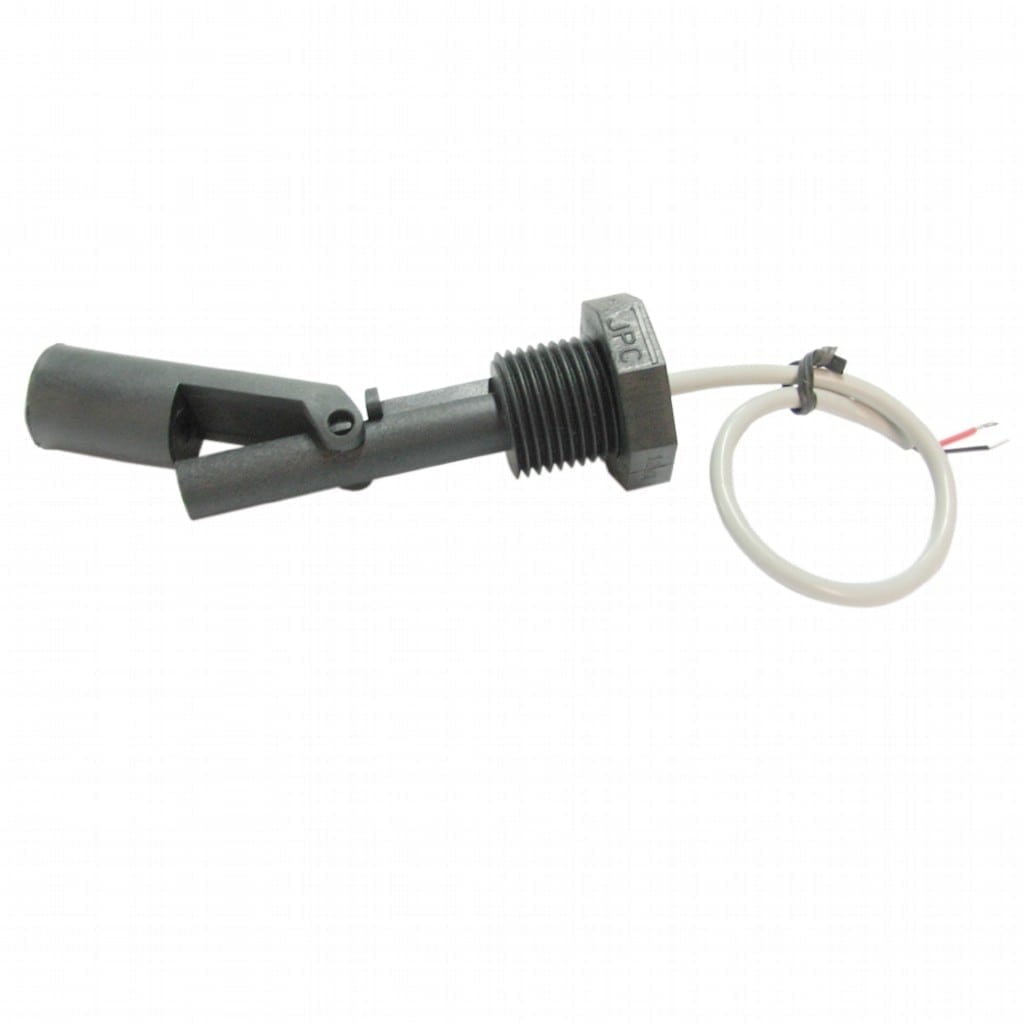

Horizontal mounting, reed switch contact, PBT stem, hollow PBT float, cable output, ½”BSPP thread
Main applications: steam generators, coffee machines, vending machines, air conditioning pumps, dehumidifiers, tanks. The side mounting allows to adjust the level on big size tanks.
| Stem material | |
|---|---|
| Float material | |
| Mounting position | |
| Mounting type | |
| Electrical rating | |
| Contact resistance (mOhms) | |
| Wire lengths (mm) | |
| Max operating temperature (°C) | |
| Min operating temperature (°C) | |
| Maximum pressure |
Use: low voltage circuits
Main applications: steam generators, coffee machines, vending machines, air conditioning pumps, dehumidifiers, tanks. The side mounting allows to adjust the level on big size tanks.
Stem material: PBT
Float material: hollow PBT
Mounting: horizontal on ½”BSPP female fitting
Contact configuration: It opens when the float touch the stem. Two positions are possible:
-The float is on the top of the stem: contact is normally open (the float touch the stem when there is no liquid), and will close when the level rises and the float goes up
-The float is pending downside under the stem: contact is normally closed (the float does not touch the stem) and will open when the level rises and the float goes up and touch the stem.
Electrical rating:
Low voltage type: maximum power 10 W (VA), max 0.5Amp,
max voltage 110VAC.
230VAC type: max power 40 W (VA), max 1Amp. Values for resistive circuit. For inductive or capacitive loads, a contact protection circuit must be used.
Contact resistance: 150mOhms maxi ( wires not included)
Wires: AWG24 cable, UL style 2464, PVC insulated, length 100, 500, 1000 or 2000 mm
Liquid limits: to be used with liquids chemically compatible with PBT, specific gravity higher than 0.9, dynamic viscosity higher than 0.5×10-4 Pa.s and lower than 10-2 Pa.s, without magnetic particles.
Ambient temperature: -20+80°C
Maximum pressure: 1 bar (15 PSI)
Options: other cable length, electrical rating 70W, 1A, 250VAC
Dimensions
Main references
| Electrical Rating | Cable 100 mm | Cable 500 mm | Cable 1000 mm | Cable 2000 mm |
| 10VA (max 110VAC) | DTR0P207618G1050 | DTR0P207618G5050 | DTR0P207618GA050 | DTR0P207618GB050 |
| 40VA (max 230VAC) | DTR4P207618G1050 | DTR4P207618G5050 | DTR4P207618GA050 | DTR4P207618GB050 |
We regularly, under non disclosure agreement, study and product components that meet the specifications of manufacturers of electrical equipment. If agreed contractually at the origin, the products are reserved for use only by the customer.Our foam floats are made in our factory using our own patented technology and are without equivalent.
Technical specifications sheet
