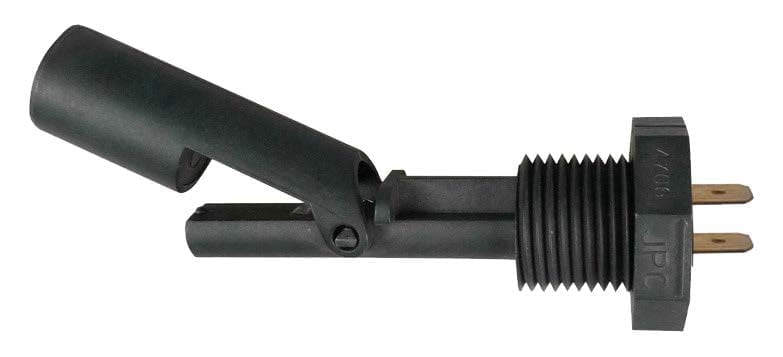

Horizontal mounting, reed switch contact, PBT stem, hollow PBT float, 6.35 x 0.8 QC terminals, ½”BSPP thread

Main applications: steam generators, coffee machines, vending machines, air conditioning pumps, dehumidifiers, tanks. The side mounting allows to adjust the level on big size tanks.

Stem material

Float material

Mounting position

Mounting type

Electrical rating

,

Contact resistance (mOhms)

Max operating temperature (°C)

Min operating temperature (°C)

Maximum pressure

This product is currently out of stock and unavailable.

Description

Use: low voltage circuits

Main applications: steam generators, coffee machines, vending machines, air conditioning pumps, dehumidifiers, tanks. The side mounting allows to adjust the level on big size tanks.

Stem material: PBT

Float material: hollow PBT

Mounting: horizontal on ½”BSPP female fitting

Contact configuration: It opens when the float touch the stem. Two positions are possible:

-The float is on the top of the stem: contact is normally open (the float touch the stem when there is no liquid), and will close when the level rises and the float goes up

-The float is pending downside under the stem: contact is normally closed (the float does not touch the stem) and will open when the level rises and the float goes up and touch the stem.

Electrical rating:

Low voltage type: maximum power 10 W (VA), max 0.5Amp, max voltage 110VAC.

230VAC type: max power 40 W (VA), max 1Amp. Values for resistive circuit. For inductive or capacitive loads, a contact protection circuit must be used.

Contact resistance: 150mOhms maxi ( wires not included)

Wires: two 6.35 x 0.8 mm quick connect terminals (to be incorporated inside appropriate ingress protected equipment)

Liquid limits: to be used with liquids chemically compatible with PBT, specific gravity higher than 0.9, dynamic viscosity higher than 0.5×10-4 Pa.s and lower than 10-2 Pa.s, without magnetic particles.

Ambient temperature:  –20+80°C

Maximum pressure:  1 bar (15 PSI)

Options: other cable length, electrical rating 70W, 1A, 250VAC

Dimensions



Main references

Electrical Rating Reference
10VA (max 110VAC) DTR0P207618E0021
40VA (max 230VAC) DTR4P207618E0021
